Vertiv Challenger 3000 User Manual

Challenger 3000 w/ iCOM
- 78 - September 2011
Downflow
Item
Part #
Description
3T
5T
1
196051G1
Suction Assembly 5T Downflow 55
2
141143G2
Liquid Line Assembly 5T Downflow/Upflow on Page 67
3
196052G1
Discharge Assembly 5T Downflow STD/DIG on Page 64
4
W-0320
SEAL ROTOLOCK 1"X14" TEFLON
1
5
W-0330
SEAL ROTOLOCK 1-1/4"X12"TEFLON
1
6
141141G1
Hot Gas ASM on Page 64
17
159010P1
VALVE 1" 3WAY UNION BODY
1
18
146352G1
ACTUATOR ASSY SP SML 92" WH
1
26
F02-371A
SUPPORT VALVE TEV
1
55
187933G2
VALVE ACC BODY 1/4 EXT1" BEAD
1
1
56
P02-0290
VALVE CORE REFRIGERANT
1
1

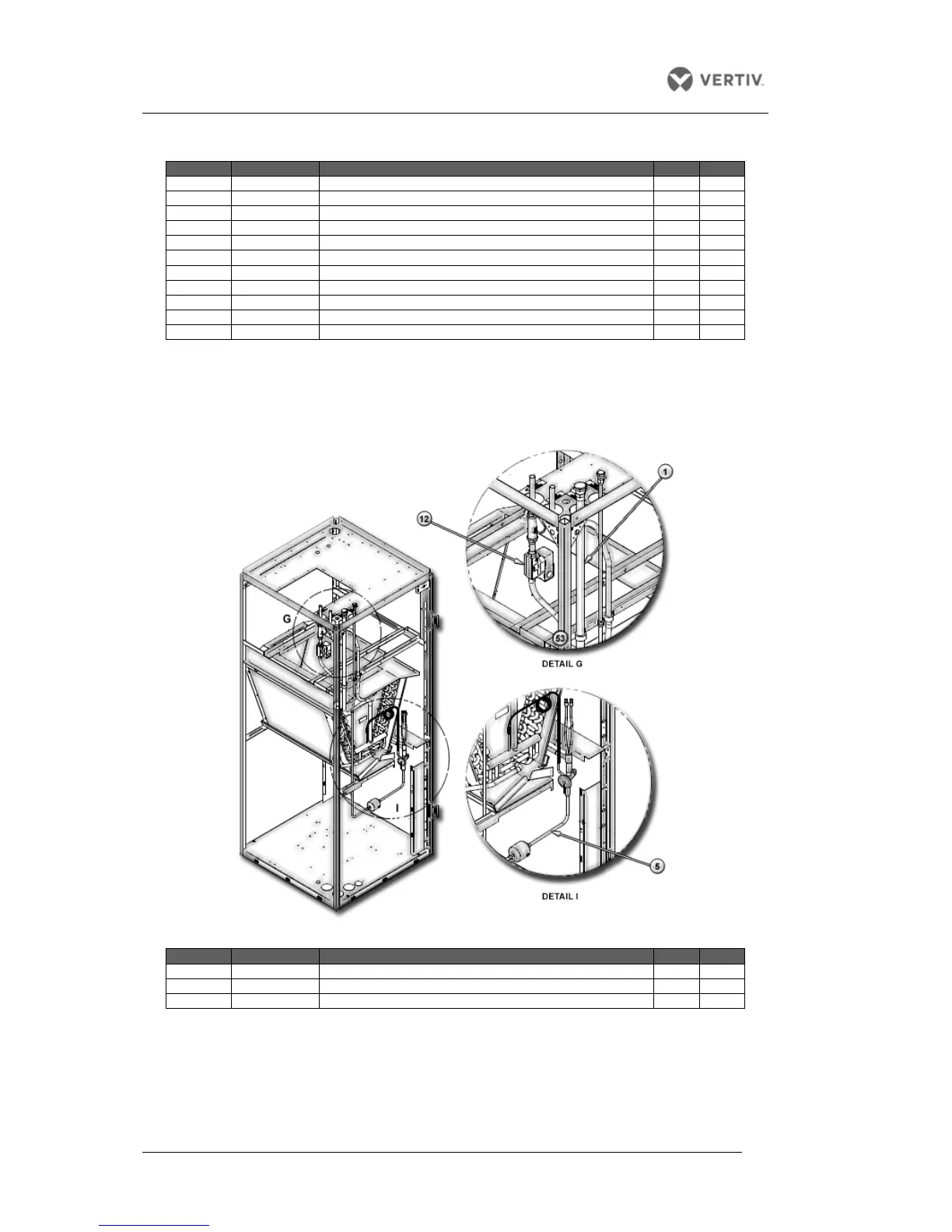

11.5. Evaporator
11.5.1. Upflow
Item
Part #
Description
3T
5T
1
141144
Suction Line Assembly 3T/5T EVAP Upflow on Page 80
5
141145
Liquid Line Assembly 3T/5T EVAP Upflow on Page 81
12
1A23985P1
VALVE SOLND 1/2" NC 24V 50/60
1
1
