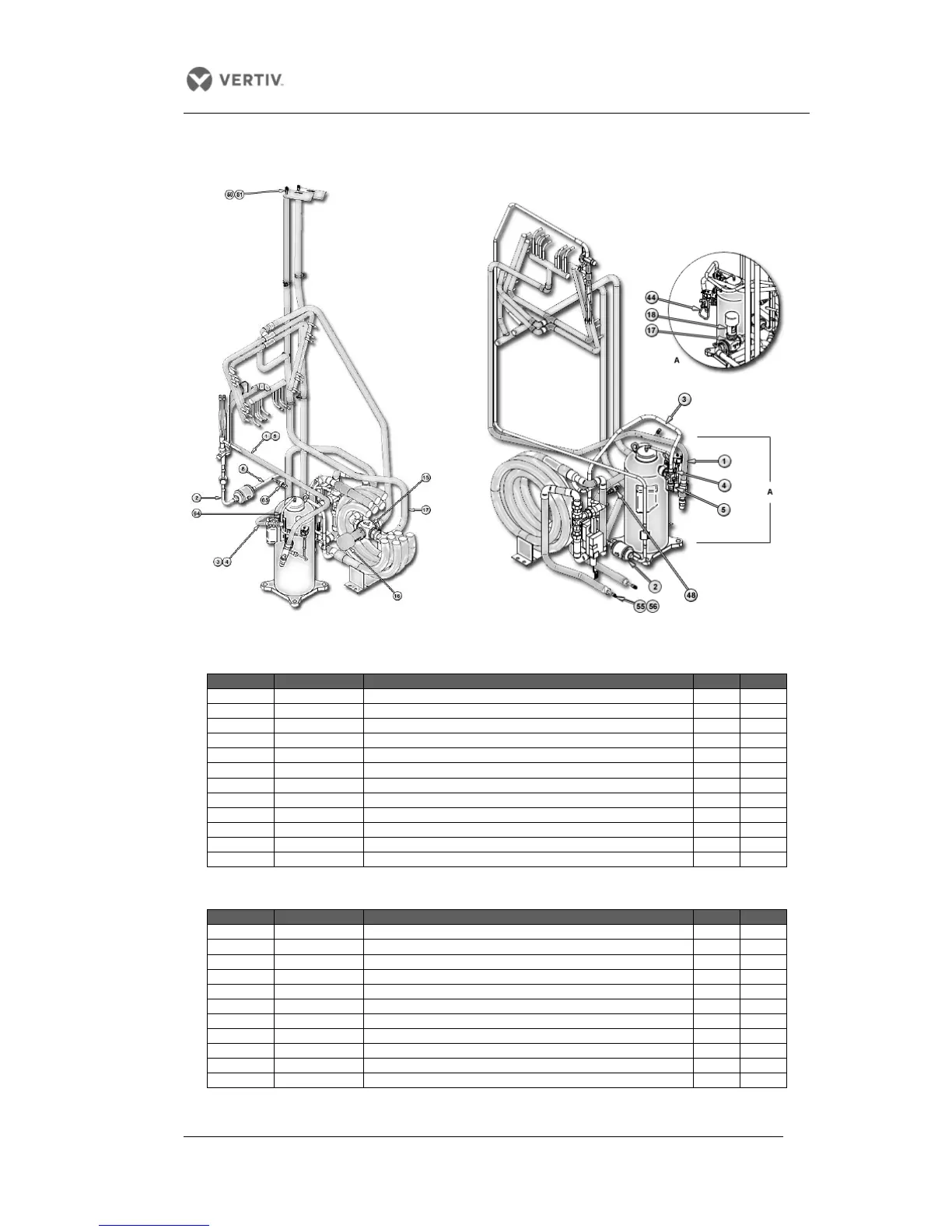

Vertiv Challenger 3000 User Manual

Piping Section
September 2011 - 75 -
11.4.3. Digital
Upflow
Downflow
Upflow
Item
Part #
Description
3T
5T
1
196693G1
Suction Line Assembly 5T on Page 76
2
141143G2
Liquid Line Assembly 5T W D/U 3000 on Page 67
3
141127G1
Discharge Line Assembly on Page 64
4
W-0320
SEAL ROTOLOCK 1"X14" TEFLON
1
5
W-0330
SEAL ROTOLOCK 1-1/4"X12"TEFLON
1
8
196664G1
Liquid Assembly ½ on Page 67
15
159010P1
VALVE 1" 3WAY UNION BODY
1
16
146352G1
ACTUATOR ASSY SP SML 92" WH
1
17
148039P1
SENSOR GLYCOL W/PLUG
1
62
187933G2
VALVE ACC BODY 1/4 EXT1" BEAD
2
2
63
P02-0290
VALVE CORE REFRIGERANT
2
2
64
196265G2
Digital Solenoid Valve Assembly on Page 62
1
Downflow
Item
Part #
Description
3T
5T
1
196051G1
Suction Line Assembly 5T on Page 62
2
141143G2
Liquid Line Assembly 5T W D/U 3000 on Page 67
3
151150G1
Discharge Line Assembly on Page 68
4
W-0320
SEAL ROTOLOCK 1"X14" TEFLON
1
5
W-0330
SEAL ROTOLOCK 1-1/4"X12"TEFLON
1
17
159010P1
VALVE 1" 3WAY UNION BODY
1
18
146352G1
ACTUATOR ASSY SP SML 92" WH
1
44
180715G1
VALVE SOLND D_SCRL 3/8MXM 24V
1
48
181388P2
TRANSDUCER 0-500 PSIS 0.5-4.5V
1
55
187933G2
VALVE ACC BODY 1/4 EXT1" BEAD
1
1
56
P02-0290
VALVE CORE REFRIGERANT
1
1
