Vertiv Challenger 3000 User Manual

Piping Section
September 2011 - 61 -

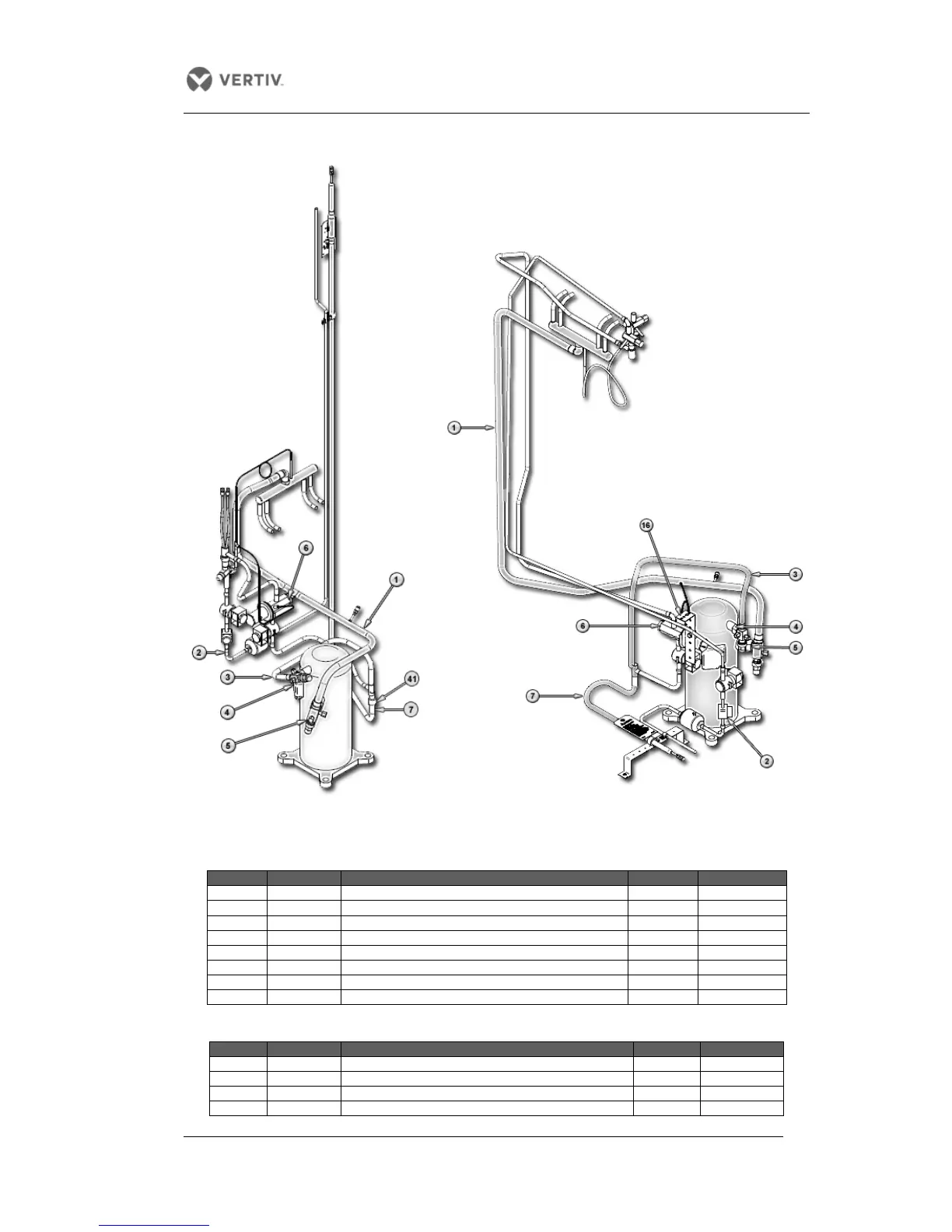

11.2. Air Cooled
Upflow
Downflow
Upflow
Item
Part #
Description
3T
5T
1
141104G3
Suction Line Assembly 3/5T U on Page 62
2
141143G1
Liquid Line Assembly 3T A D/U on Page 63
3
141127G1
Discharge Line Assembly 3/5T U on Page 64
4
W-0320
SEAL ROTOLOCK 1"X14" TEFLON
1
1
5
W-0330
SEAL ROTOLOCK 1-1/4"X12"TEFLON
1
1
6
141141G1
Hot Gas ASM on Page 64
7
179738G2
Discharge Line Assembly on Page 43
41
P-1100
REDUCER CU CXC 7/8"X5/8"
1
Downflow
Item
Part #
Description
3T
5T
1
196088G1
Suction Line Assembly 3T D STD/DIGI on Page 62
2
141142G1
Liquid Line Assembly 3T A D/U on Page 63
3
197154G1
Discharge Line Assembly 3T D on Page 64
4
W-0320
SEAL ROTOLOCK 1"X14" TEFLON
1
1
