Vertiv Challenger 3000 User Manual

Challenger 3000 w/ iCOM
- 72 - September 2011
Downflow
Item
Part #
Description
3T
5T
1
196088G1
Suction Line Assembly 5T D STD/DIG on Page 64
2
141143G1
Liquid Line Assembly 3T W D/U 3000 on Page 67
3
151150G1
Discharge Line Assembly 3/5T D on Page 68
4
W-0320
SEAL ROTOLOCK 1"X14" TEFLON
1
1
5
W-0330
SEAL ROTOLOCK 1-1/4"X12"TEFLON
1
1
6
141141G1
Hot Gas ASM on Page 64
12
F02-371A
SUPPORT VALVE TEV
1
1
20
148213P1
RECVR V 5X14 .50IN/OUT 450# SG
1
1
21
129644P1
VALVE HEAT RECLAIM
1
1
22
P-411B
VALVE CHECK BRASS IN-LINE 5/8
1
1
28
190899P1
VALVE RELIEF 480# 1/4NPT X 3/8
1
1
54
181388P2
TRANSDUCER 0-500 PSIS 0.5-4.5V
1
1

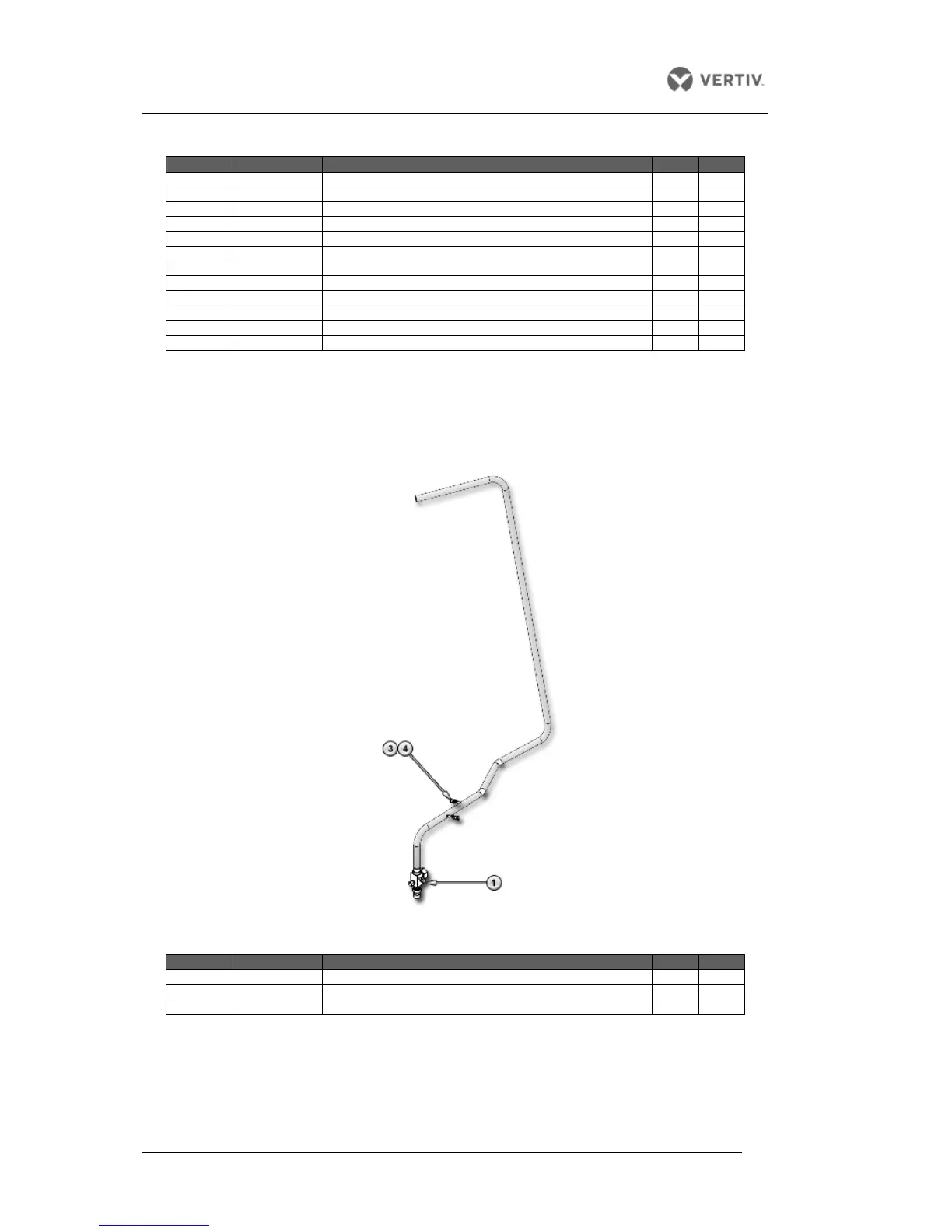

11.3.8. Suction Assembly (196088G1)
Item
Part #
Description
3T
5T
1
1C16925P2
VALVE ROTOLOCK 7/8" X1-1/4"-12
1
3
187933G2
VALVE ACC BODY 1/4 EXT1" BEAD
1
1
4
P02-0290
VALVE CORE REFRIGERANT
1
1
