Vertiv Challenger 3000 User Manual

Piping Section
September 2011 - 69 -

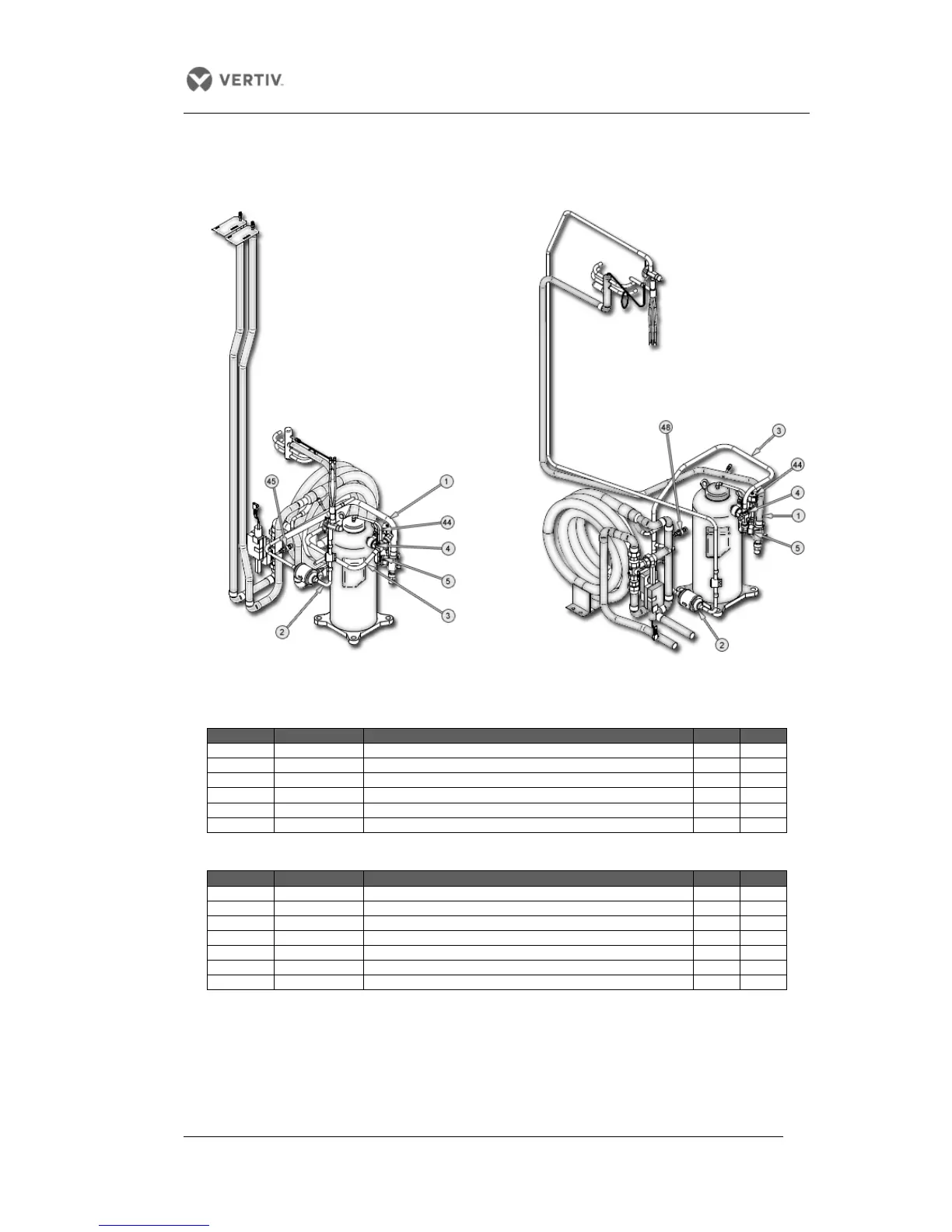

11.3.5. Water/Glycol Cooled R-407C
Upflow
Downflow
Upflow
Item
Part #
Description
3T
5T
1
141104G3
Suction Line Assembly 3/5T U on Page 62
2
141143G1
Liquid Line Assembly 3T W D/U 3000 on Page 67
3
141127G1
Discharge Line Assembly on Page 64
4
W-0320
SEAL ROTOLOCK 1"X14" TEFLON
1
1
5
W-0330
SEAL ROTOLOCK 1-1/4"X12"TEFLON
1
1
45
181388P2
TRANSDUCER 0-500 PSIS 0.5-4.5V
1
1
Downflow
Item
Part #
Description
3T
5T
1
196051G1
Suction Line Assembly 5T STD/DIG on Page 62
2
141143G1
Liquid Line Assembly 3T W D/U 3000 on Page 67
3
151150G1
Discharge Line Assembly 3/5T D on Page 68
4
W-0320
SEAL ROTOLOCK 1"X14" TEFLON
1
1
5
W-0330
SEAL ROTOLOCK 1-1/4"X12"TEFLON
1
1
44
196265G2
Digital Solenoid Valve Assembly on Page 62
48
181388P2
TRANSDUCER 0-500 PSIS 0.5-4.5V
1
1
