Vertiv EXS - Transfer to Maintenance Bypass Mode

EXS
56 User Manual 10H52260UM60 - Rev. 1 - 10/2017

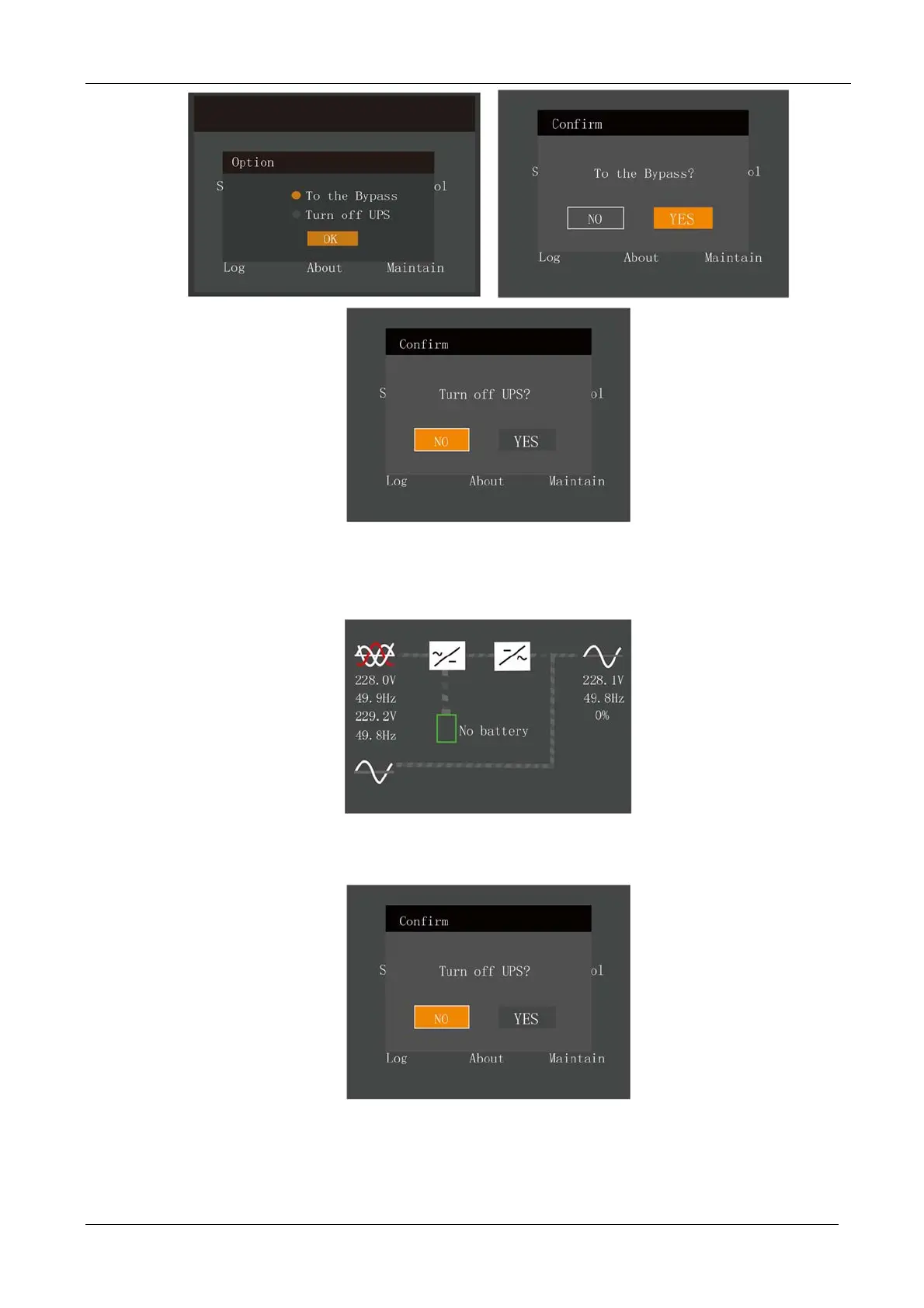

Figure 5-10 ECO mode not enabled
Select 'Turn on UPS' and click OK to transfer to Inverter mode, see Figure 5-11.
Select 'Turn off UPS' and click OK to shut down the UPS output.
Figure 5-11 Bypass to inverter mode
If ECO mode is enabled, the interface shown in Figure 5-12 will appear. Select 'YES' to shut down the UPS output.
Figure 5-12 ECO enabled interface
