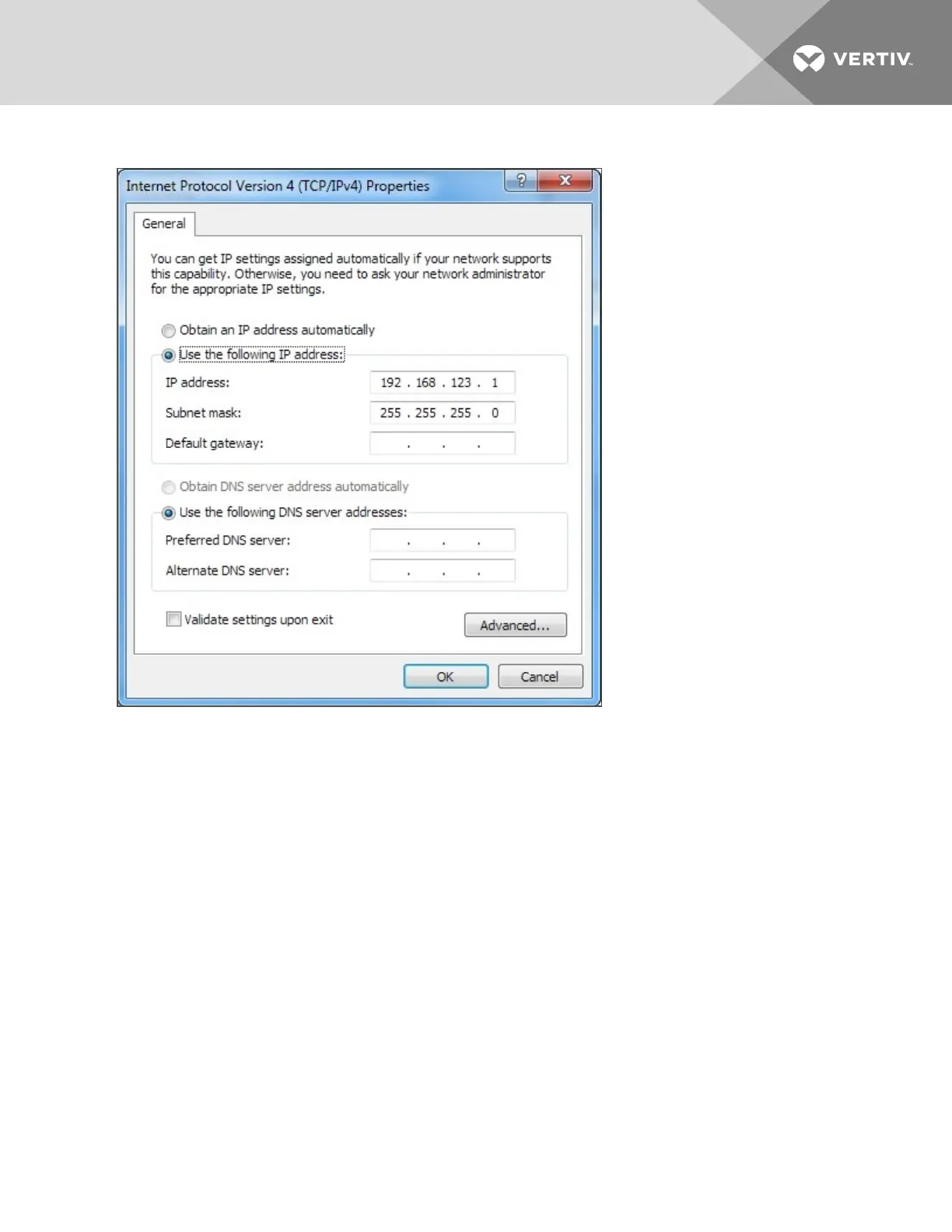

Figure 3.4 Internet Protocol Version 4
5. Choose Use the following IP address, set IP address to 192.168.123.1 and Subnet Mask to
255.255.255.0. For initial setup, Default Gateway and the DNS Server entries can be left blank.
Select OK - OK to close both the Internet Protocol Properties and Local Properties windows.
6. In a web browser, enter http://192.168.123.123 to access the unit. If you are setting up the unit
for the first time, or if the unit has been reset back to factory defaults via the network-reset
button, the unit requires you to create an Admin account and password before you can
proceed.
7. After the admin account is created, log in to the unit.
8. By default, the default sensors page is displayed. Navigate to the System tab, then the Network
page to configure the device's network properties. The unit's IP Address, Subnet Mask,
Gateway and DNS settings can either be assigned manually, or acquired via DHCP.
9. Click Save.
NOTE: After the changes are saved, the browser will no longer be able to reload the web page from the
192.168.123.123 address and displays "Page not Found" or "Host Unavailable" message; this is normal.
After you are finished configuring the unit's IP address, repeat the steps above changing the
computer's Ethernet NIC card settings to the ones you wrote down prior to changing them.
3 Setup
23
