Vertiv | Liebert® DM | User Manual 28
Mechanical Installation

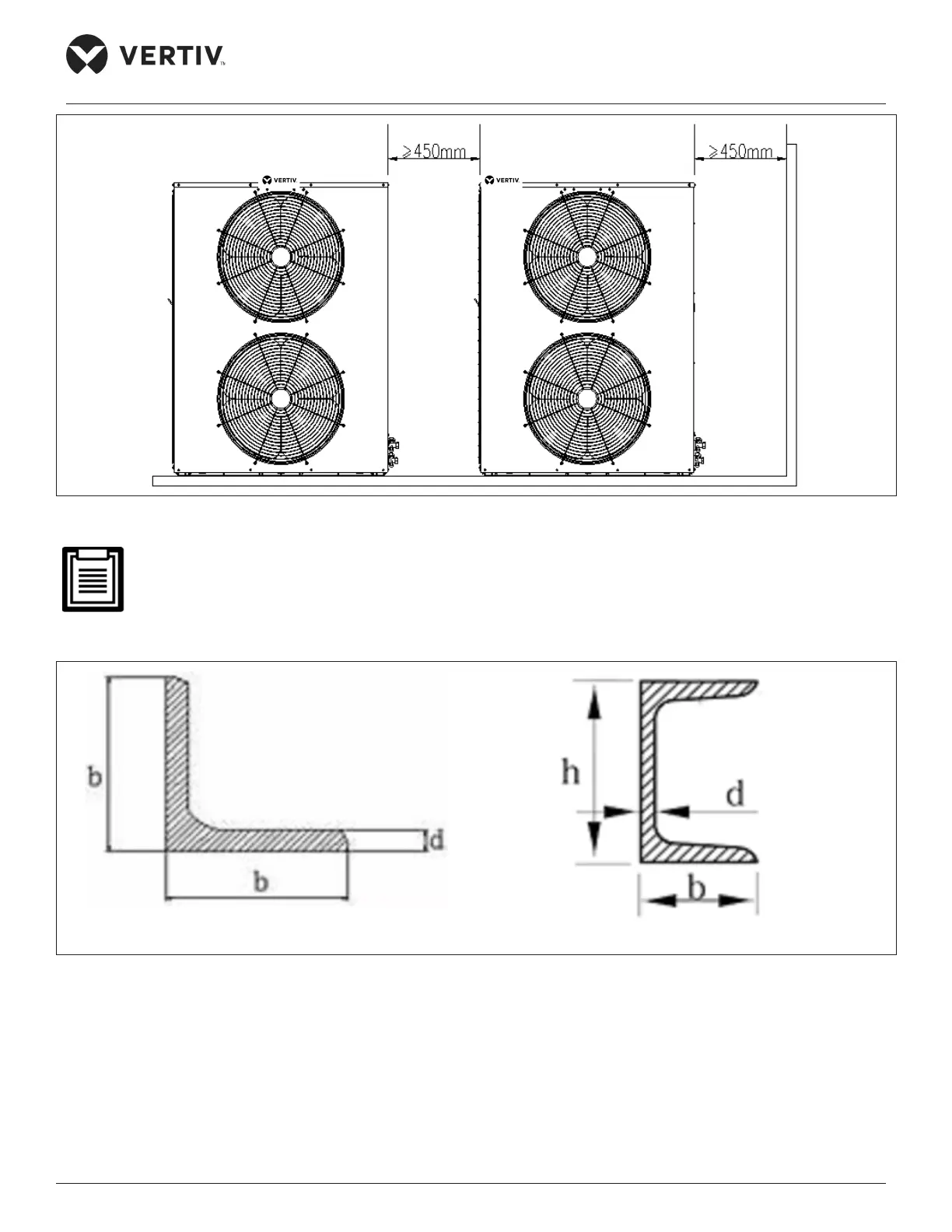

Figure 2-15 Horizontal Installation of Multiple Outdoor Units
• Use 5# angle iron for bracket, when two units are installed with one above the other, refer Figure 2-16.
• Use 6.5# channel steel for bracket, when three units are installed with one above the other, refer Figure 2-16.
• In vertical installation arrangement, ensure to maintain minimum vertical distance of 450 mm between two
outdoor units.
5# angle b*b*d(mm): 50*50*5 6.5# h*b*d(mm): 65*40*4.3
Figure 2-16 Angle and Channel for Brackets
