Vertiv | Liebert® DM | User Manual 38
Mechanical Installation
No. Description No. Description
1 Discharge pipe (Straight pipe 1/2”-12.7 mm
Connector 3/4”-16UNF thread)
3 Discharge pipe (Straight pipe 5/8”-16 mm
Connector 7/8”-14UNF thread)
2 Liquid pipe (Straight pipe 3/8”-9.52 mm
Connector 5/8”-18UNF thread)
4 Liquid pipe (Straight pipe 1/2”-12.7 mm
Connector 3/4”-16UNF thread)

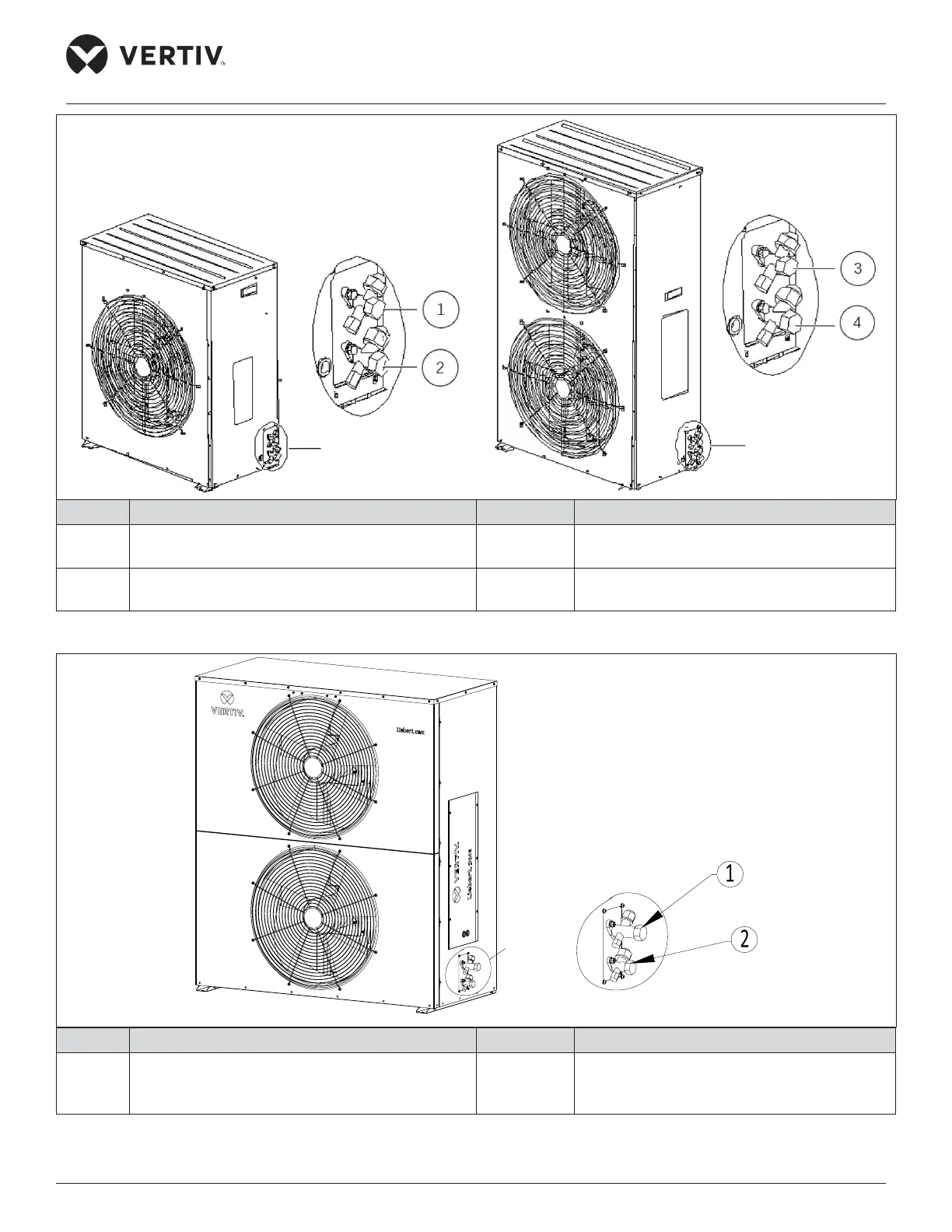

Figure 2-23 Refrigerant Pipe Connectors of Outdoor Unit (Left: DMC07; Right: DMC12)
(Amplified View of 'C')
C
No. Description No. Description
1
Discharge line shut o service angle valve (5/8”-
16 mm straight pipe, 7/8”- 14 UNF Connector
thread)
2
Liquid line shut o service angle valve (1/2”-
12.7 mm straight pipe, (3/4”-16UNF Connector
thread)
Figure 2-24 Refrigerant Pipe Connectors of Outdoor Unit (DMC17)
A B
Amplified View of ‘A’
Amplified View of ‘B’
C
