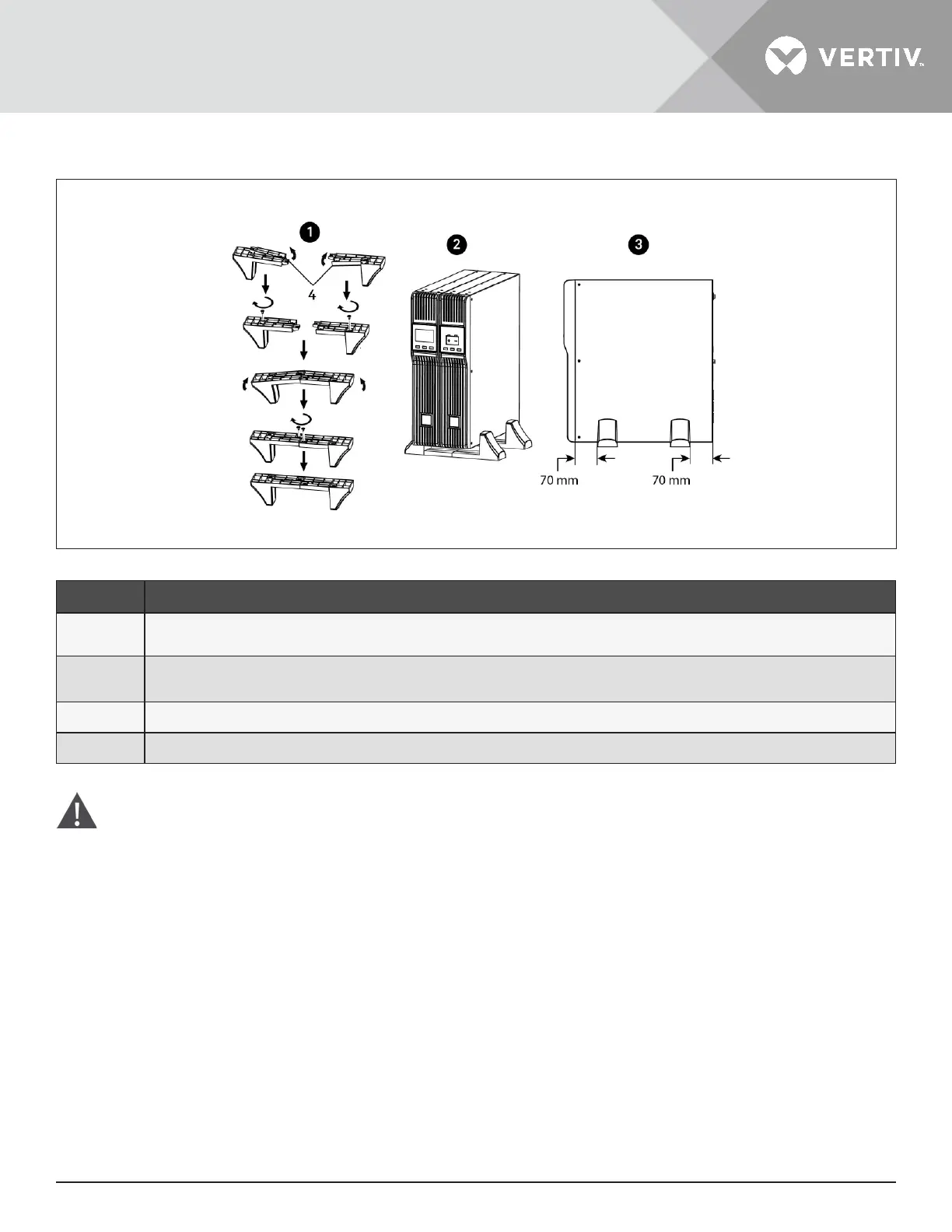

Figure 2-2 Attaching stands to the UPS and external battery
ITEM DESCRIPTION
1
Connect the two halves of the stand to the spacer, after installing the additional stand components shown in
item 4, and install the securing screws.
2
Place the UPS and external battery pack in the stands. (Rotate the display on the UPS if needed, see Figure
2-1 on the previous page.)
3 Make sure that the stands are installed 70 mm from the edge of the unit.
4 Insert the stand expansion components and install the securing screws.
Rack-mount Installation
CAUTION: Do not use the mounting brackets to lift the unit. Only use the mounting brackets to
secure the UPS to the rack.
When using the UPS in a rack, see Figure 2-3 on the next page, to install the unit. If you have an external battery,
see Figure 2-4 on the next page.
