2.3 Inside Front Panel Components

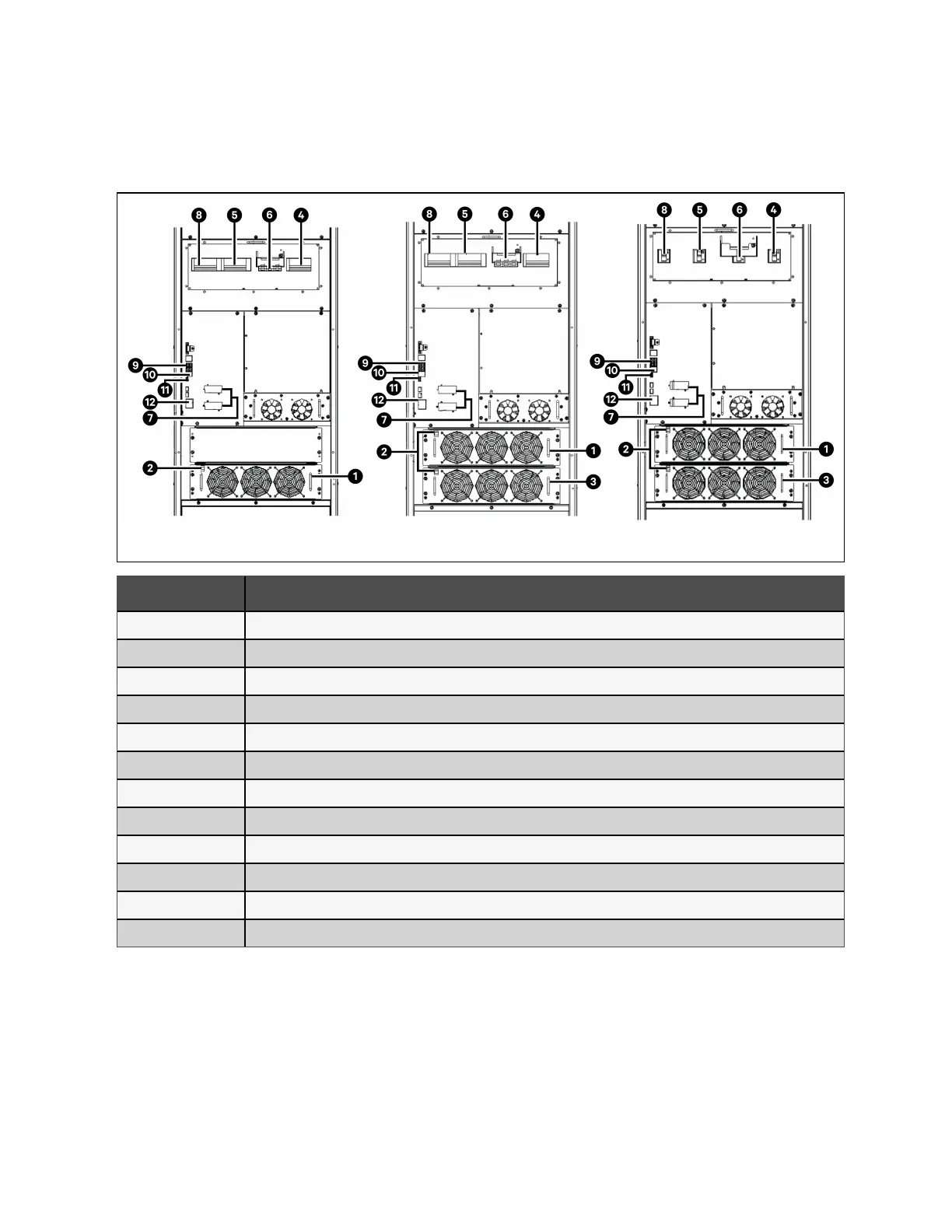

Figure 2.2 Components and Ports Inside the Front Door
15-20 K 30 K 40 K
Item Description
1 Power module 1
2 Battery start button
3 Power module 2
4 Maintenance isolation breaker (MIB)
5 Bypass input breaker (BIB)
6 Maintenance bypass breaker (MBB)
7 Vertiv™ Liebert® IntelliSlot™ ports
8 Rectifier input breaker (RIB)
9 Dry contact inputs
10 Remote emergency power off (REPO) port
11 Dry contact outputs
12 Parallel/LBS ports
