REV : 4
REV DATE : 3/21
DPN003883
Page :1 /1

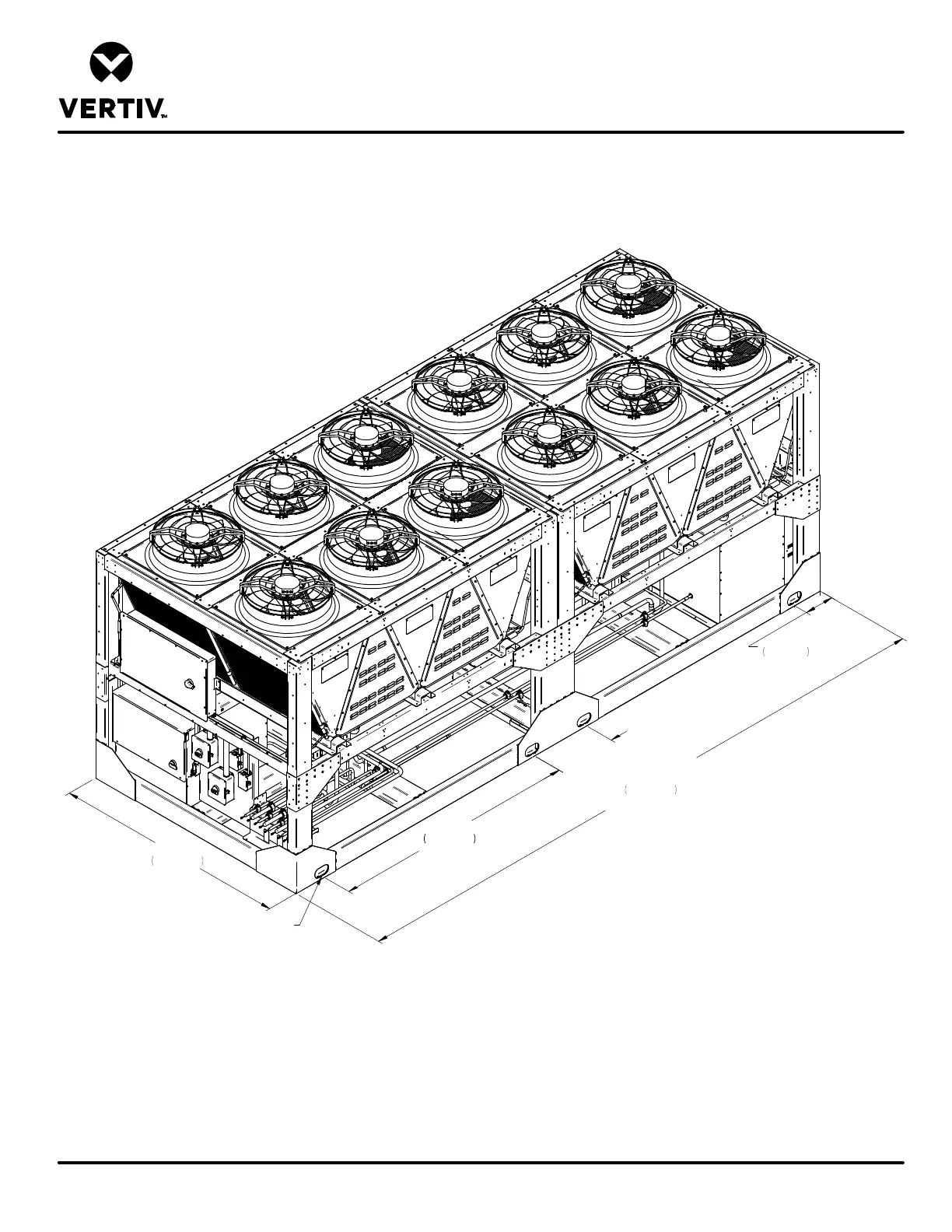

LIEBERT® MCV MCV330 (2) + LIEBERT® ECONOPHASE (2)
+ BASE ASSEMBLY
Form No.: DPN001040_REV4
CABINET LIFTING POINTS
LIEBERT
®
HEAT REJECTION SKID
101 1/4"
2572mm
13"
330mm
TYP.
Front
264 3/4"
6723mm
106 1/4"
2699mm
TYP.
26 1/4"
667mm
TYP.
Note:
1. Use indicated lifting points to lift the unit. Use spreader bars and/or shimmed blocks to prevent external damage.
2. Unit must be lifted level. Tilting or twisting can cause damage to internal components.
3. Use proper rigging equipment to make sure attachment and lifting at the designated lift points is in the vertical direction.
-Refer to User Manual for site instructions.
4" X 7"
(102mm X 178mm)
Lifting Points
Typ. (8) Places
