REV : A
REV DATE : 3/22
10032070
Page :1 /2
LIEBERT® MCV430 + LIEBERT® ECONOPHASE + BASE ASSEMBLY
Form No.: DPN001040_REV4

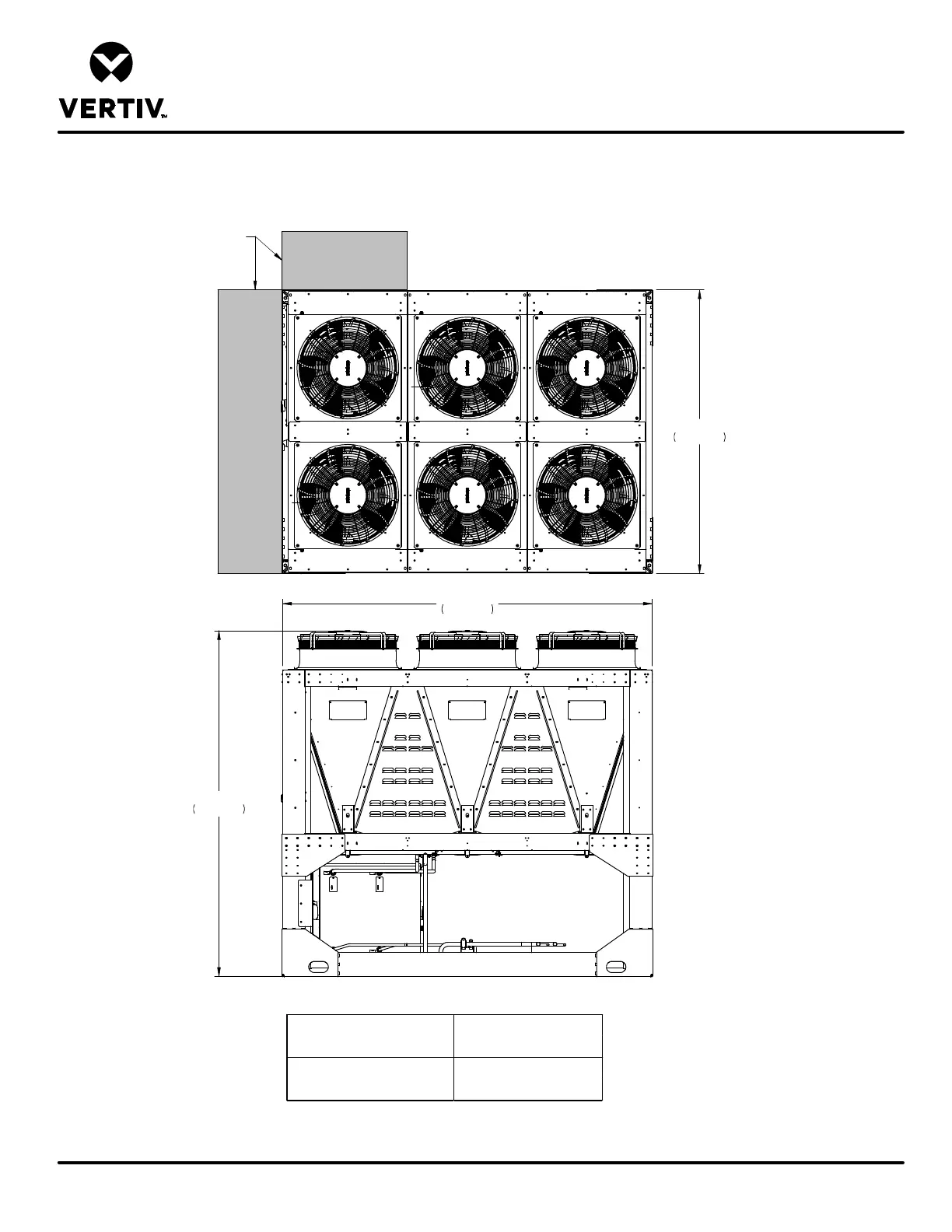

CABINET & ANCHOR DIMENSIONAL DATA
LIEBERT® HEAT REJECTION SKID
NOTES:
1) Minimum clearance on the Main Unit Disconnect Enclosure shall be 48" (1219mm) or per local code.
2) Recommended minimum 48" (1219mm) clearance when multiple skids are mounted side by side to ensure proper airflow. Contact the factory for other spacing requirements.
Domestic Shipping Weight
lb. (kg)
Export Shipping Weight
lb. (kg)
4,900 (2,223) 5,100 (2,313)
Shaded are indicates recommended
36" (914mm) clearance for component
access.
101 1/4"
2572mm
132"
3353mm
Main
Electrical
Box
End
123 1/2"
3138mm
To Next Page
