Vertiv Liebert MCV330 - DPN003879

REV : 2
REV DATE : 8/17
DPN003879
Page :1 /1
MCV330
Form No.: DPN001040_REV4

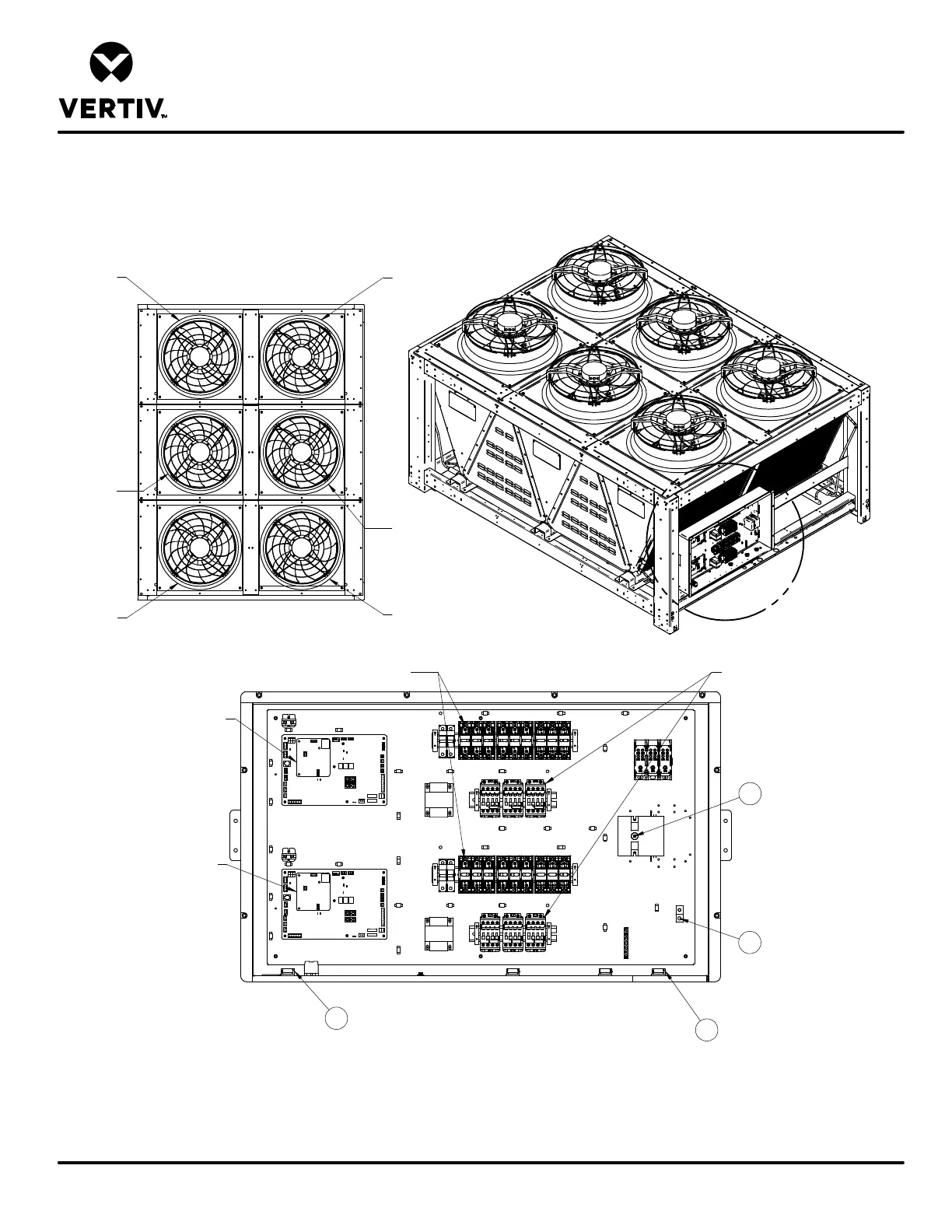

ELECTRICAL PANEL LAYOUT
LIEBERT MCV
Detail A
FUSES
CONTROL
BOARD
CIRCUIT 1
CONTROL
BOARD
CIRCUIT 2
FAN CONTACTORS
CIRCUIT 1
FAN 1
CIRCUIT 2
FAN 1
CIRCUIT 1
FAN 3
CIRCUIT 2
FAN 3
CIRCUIT 2
FAN 2
CIRCUIT 1
FAN 2
2
1
A
KEY ELECTRICAL DETAILS:
1) Three phase electrical service – Terminals are on bottom of disconnect switch. Three phase service not by Liebert.
2) Earth ground – Field lug terminal for earth ground connection.
3) High voltage entrance located at the bottom of the enclosure.
4) Low voltage entrance located at the bottom of the enclosure.
3
4
