Vertiv Liebert MCV330 - Page 86

REV : 7
REV DATE : 1/22
DPN003875
Page :2 /2
LIEBERT® MCV MCV330 (2) + LIEBERT® ECONOPHASE(2)
+ BASE ASSEMBLY
Form No.: DPN001040_REV4

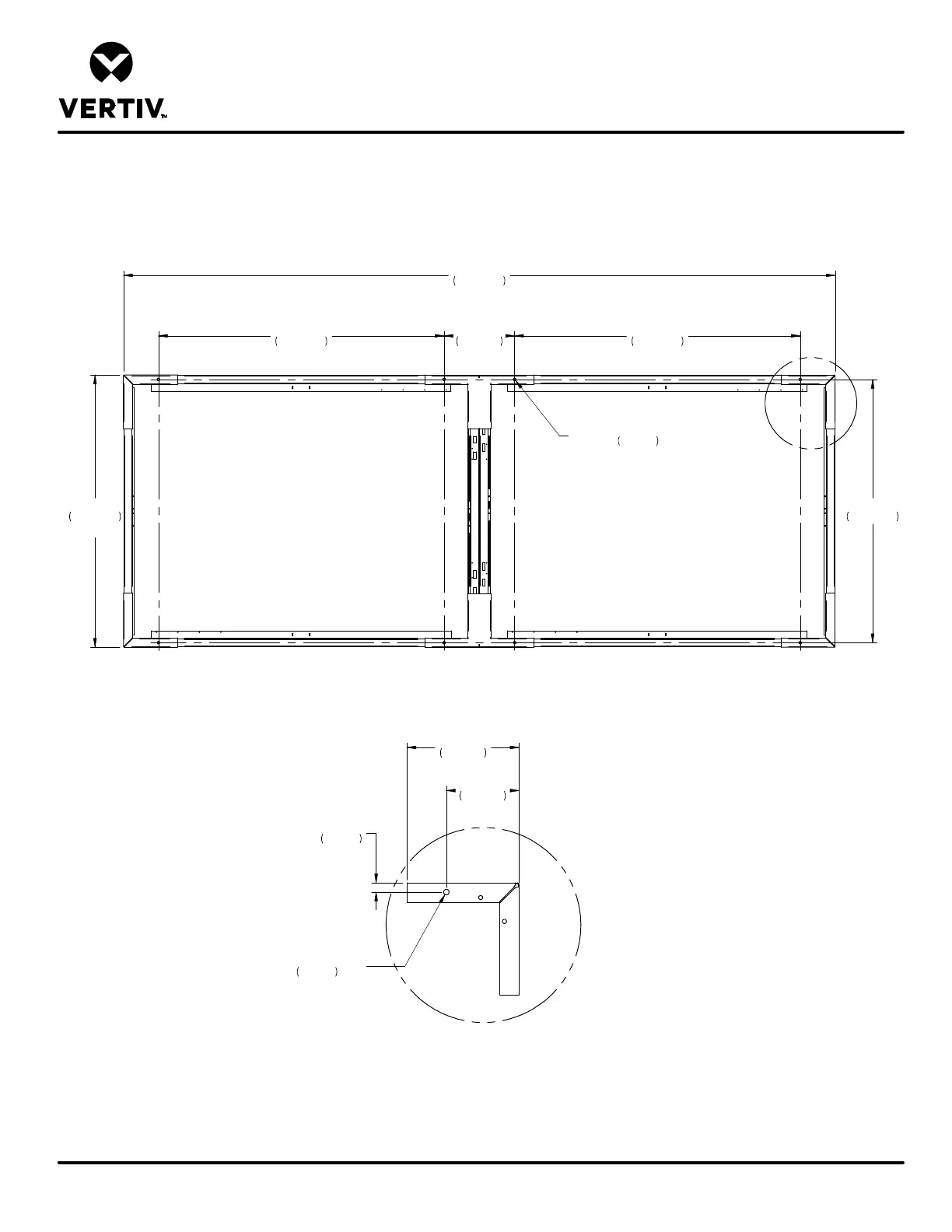

CABINET & ANCHOR DIMENSIONAL DATA
LIEBERT
®
HEAT REJECTION SKID
DETAIL A
A
20"
508mm
TYP.
1 5/8"
42mm
TYP.
O
7/8"
22mm
TYP.
(8) MOUNTING HOLES
Underside of unit, coil and fan removed for clarity.
101 1/4"
2572mm
TYP.
O
7/8"
22mm
TYP.
(8) MOUNTING HOLES
(CONTACT POINTS)
26 1/4"
667mm
13"
330mm
TYP.
98"
2488mm
Notes:
1. Eight mounting holes and eight 3/4" field supplied bolts required to secure skid base assembly to customer support structure. Bolt grade to be specified by local requirements.
106 1/4"
2699mm
106 1/4"
2699mm
264 3/4"
6725mm
