REV : A
REV DATE : 3/22
10032072
Page :2 /2
LIEBERT® MCV430 (2) + LIEBERT® ECONOPHASE (2)
+ BASE ASSEMBLY
Form No.: DPN001040_REV4

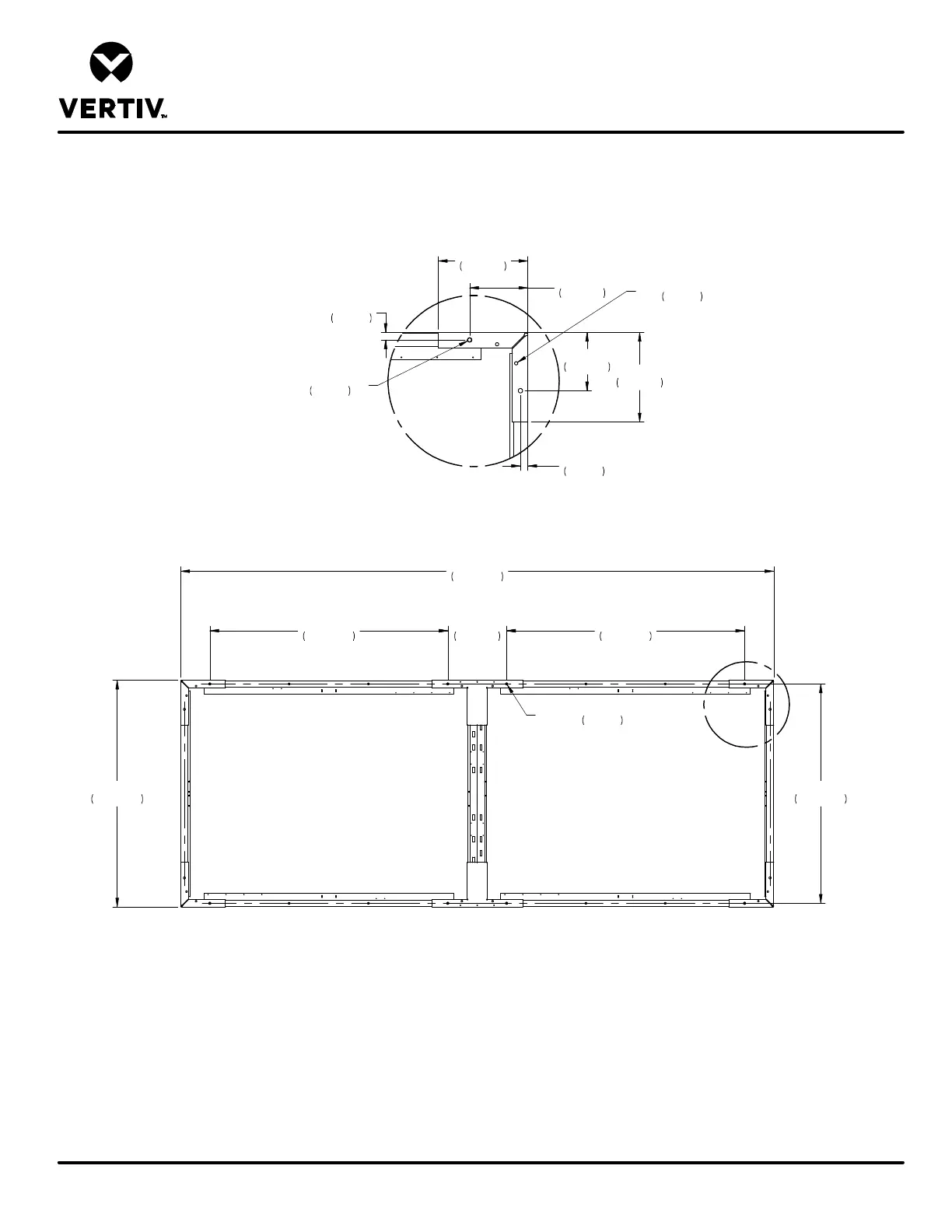

CABINET & ANCHOR DIMENSIONAL DATA
LIEBERT® HEAT REJECTION SKID
Notes:
1. Underside of unit, coil and fan removed for clarity.
2. Eight mounting holes and eight 3/4" field supplied bolts required to secure skid base assembly to customer support structure. Bolt grade to be specified by local requirements.
Underside of Unit
Coil and Fans removed for clarity
98"
2488mm
264 3/4"
6725mm
106 1/4"
2698mm
26 1/4"
667mm
106 1/4"
2698mm
101 1/4"
2572mm
Main
Electrical
Box
End
O
7/8"
22mm
Typ.
(4) Mounting Holes
(Contact Points)
A
DETAIL A
TYP. (4) PLACES
20"
508mm
13"
331mm
20"
508mm
13"
330mm
1 5/8"
42mm
1 5/8"
42mm
O
7/8"
22mm
(8) Mounting Holes
(Contact Points)
O
3/4"
19mm
(4) Weep Holes
Ref.
To Next Page
