Device Group Status Pages
The power system status block diagram has interactive links. Clicking on a link takes you to that device group’s status page. A device
group’s status page displays current or logged operating parameters for that device group.
The following sections describe the Module (i.e. rectifier, converter, solar converter), DC, and the Battery device groups as samples of
how to use these links.

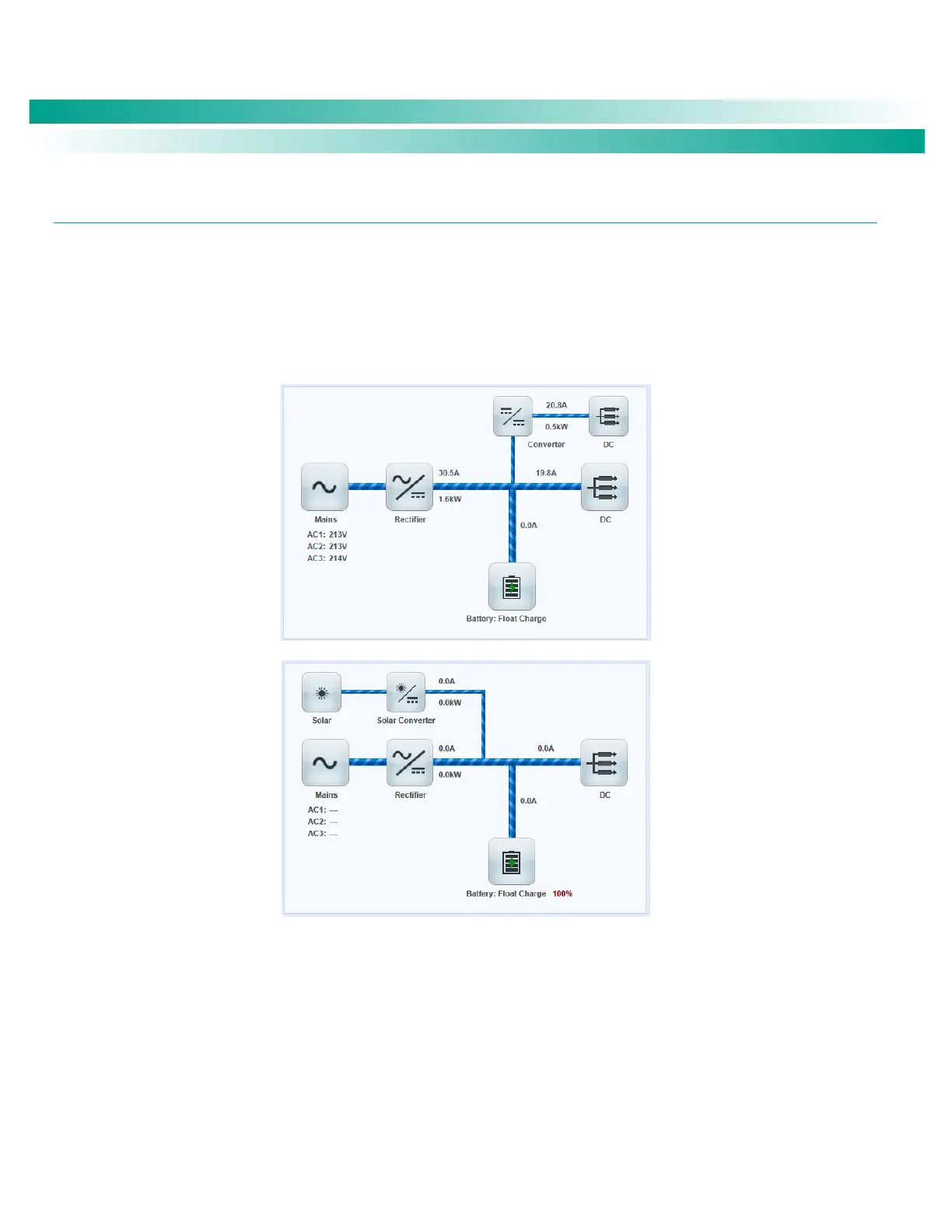

Figure 28. Power System Status Page Block Diagram
To Next Page
