NetSure
™
Control Unit (NCU)
User Manual, UM1M830BNA
Spec. No: 1M830BNA, 1M830DNA Code: UM1M830BNA
Model No: M830B, M830D Revision M, May 12, 2017
TL1 Protocol
You can enable the TL1 port and set TL1 protocol parameters.

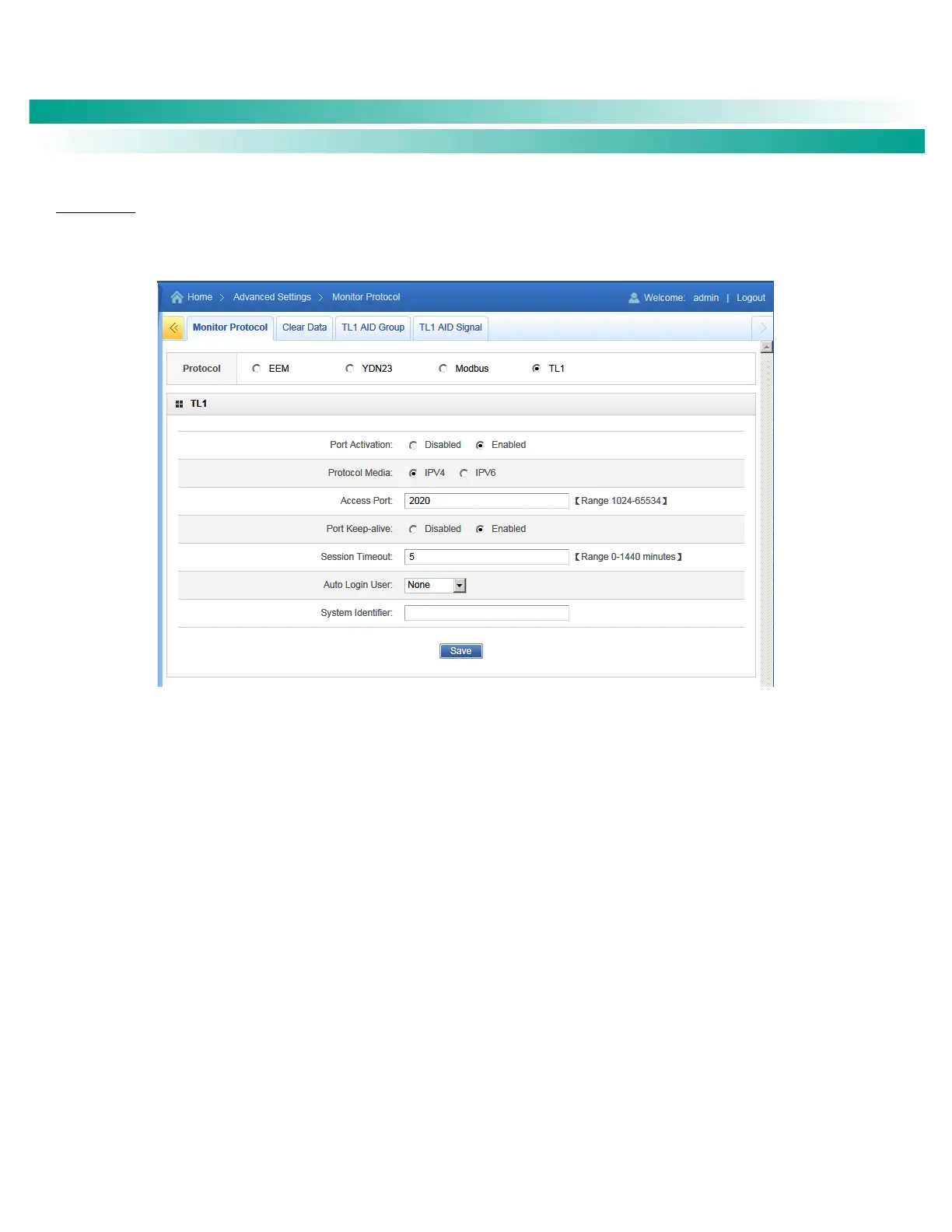

Figure 108. TL1 Protocol
Port Activation: Select Enabled to enable the NCU TL1 port. The following parameters appear.
Protocol Media: Select IPV4 or IPV6 per site requirements.
Access Port: This specifies the Ethernet port number through which the TL1 telnet connection is to be established. Set per site
requirements.
Port Keep-Alive: The NCU provides an optional ‘Keep-alive’ feature. This feature ensures that the TCP connection to the remote
client is maintained if desired by the User. Set per site requirements.
Session Timeout: This specifies the maximum length of time in minutes that a User session can remain idle with no input
received before being logged off. The telnet connection is terminated when a User session timeout occurs. Set per site
requirements. Note that a “0” setting disables the session timeout feature.
Auto Logon User: This specifies if a User session is automatically established for the designated User when a TL1 port
connection is established. Set per site requirements. Note that a “None” setting disables this feature. The auto logon User can
be set to any valid User whose name and password meet the TL1 criteria. If a User name or password is not valid, then it will not
be accepted and an error message displayed to indicate this.
System Identifier (20 characters maximum): ASCII string with a maximum length of twenty characters. This is a unique name
which identifies the NCU in an NMA system. This data parameter is used to identify the destination of command messages and
the source of response and autonomous messages in an NMA system. Set per site requirements.
