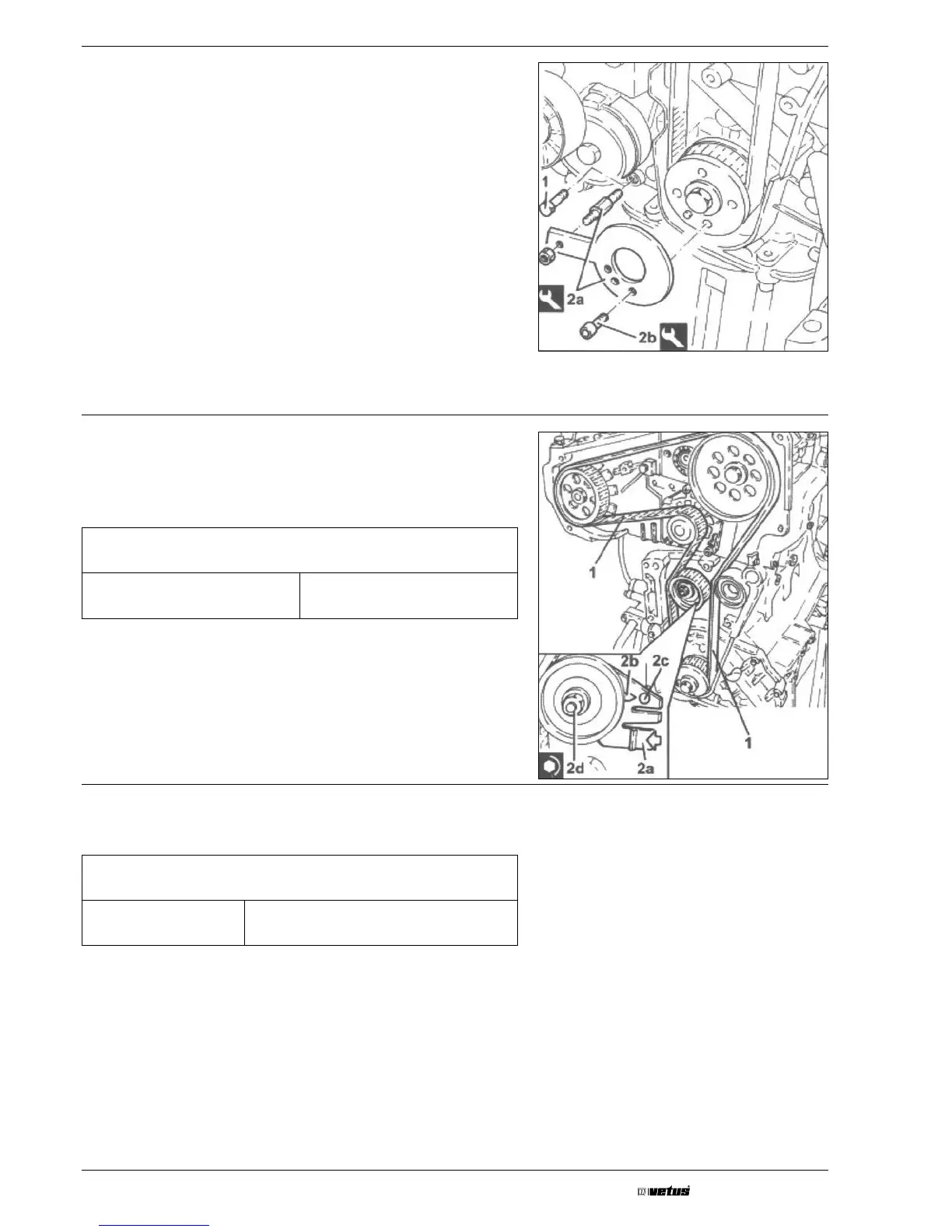

Fit tool (2 a template) and fasten it using calibrated screw (2b).
Fully t the toothed timing drive belt.
Use a screwdriver for leverage in opening (2 a) until the reference
for tensioner (2b) is aligned with reference opening (2c). In this
position, tighten nut (2d) for the belt tensioner to the recom-
mended torque.
Timing moving tensioner
Nut M8 (daNm) 2.3 ÷ 2.8
Tighten the bolt xing the exhaust side timing belt toothed drive
pulley to the specied torque.
Driver toothed pulley
Bolt M12 (daNm) 2.9 ÷ 3.2 + 40° (camshaft side)
Remove the camshaft timing tools, exhaust and crankshaft side.
