Vicon Extra 228 - Technical Specifications

20
About the machine
Technical data

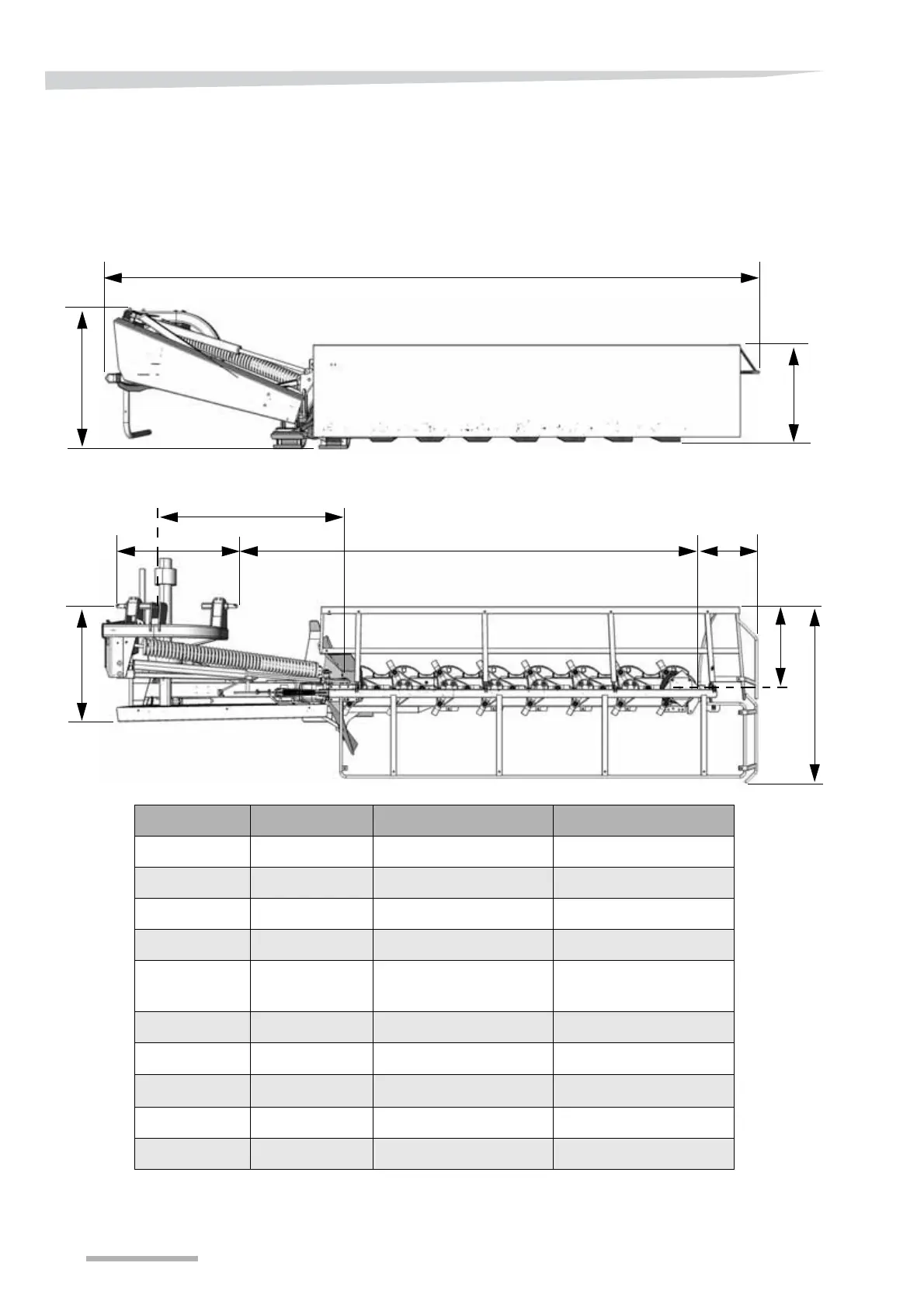

Machine dimensions
A
B
C
D
E
F
G
J
I
H
Dim. Unit 228 232
A mm (’-’’) 1070 (3’ 6”) 1070 (3’ 6”)
B mm (’-’’) 4330 (14’ 2½”) 4710 (15’ 5½”)
C mm (’-’’) 750 (2’ 5½”) 750 (2’ 5½”)
D mm (’-’’) 910 (2’ 12”) 910 (2’ 12”)
E mm (’-’’) 900 -1140
(2’ 11½”-3’ 8
7
/8”)
900-1140
(2’ 11½”-3’ 8
7
/8”)
F mm (’-’’) 1400 (4’ 7”) 1400 (4’ 7”)
G mm (’-’’)
2800 (9’ 2
1
/4”)
3200 (10’ 6”)
H mm (’-’’)
160 (6
1
/4”) 160 (6
1
/4”)
I mm (’-’’) 700 (2’ 3½”) 700 (2’ 3½”)
J mm (’-’’) 1350 (4’ 4½”) 1350 (4’ 4½”)
