Assembly - attachment
37
Connection
Hydraulic connection
The tractor must be fitted with 2 sets of double acting hydraulic outlets,
which are connected as follows:
When connecting the hydraulic hoses you should check that:
• The hydraulic hoses are connected in pairs to the tractor's
hydraulic pressure and return outlet on the tractor.

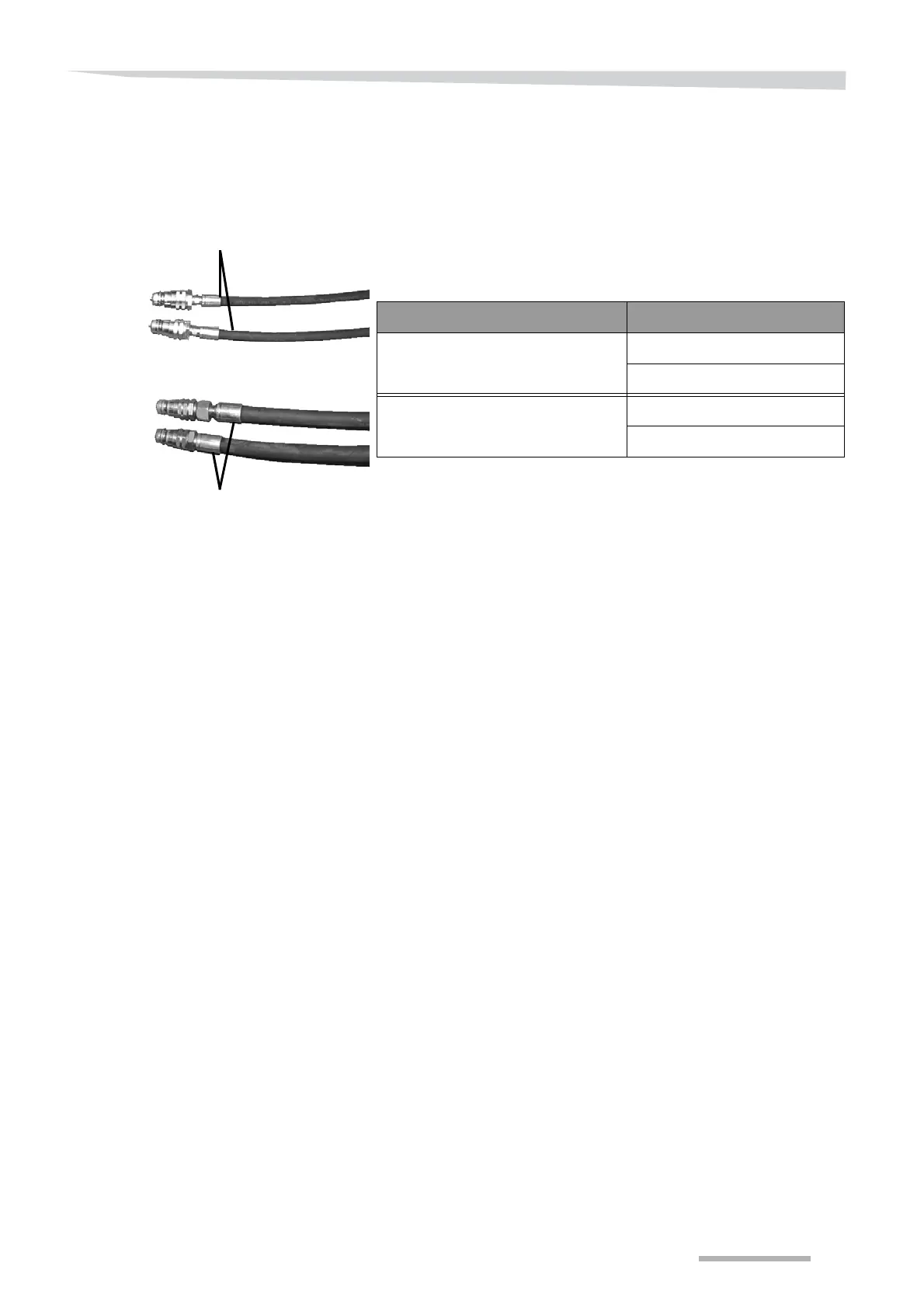

Hydraulic hose for: Function
Drawbar
right
left
Cutting unit
up
down
