Vicon Extra 532 - Maintenance - Swivel Hitch (Lower)

Maintenance
75
The lower part of the swivel hitch
 Remove oilplug 5.
 Check that the oil is filled all the way up to the hole.
 When topping up, remove oilplug 4.
 Fill the oil through the hole for oilplug 4.
• The correct oil level is reached when the oil reaches the edge of
the hole for oilplug 5.
 Fit oilplugs 4 and 5 and tighten them.
→ »Lubricants« page 134

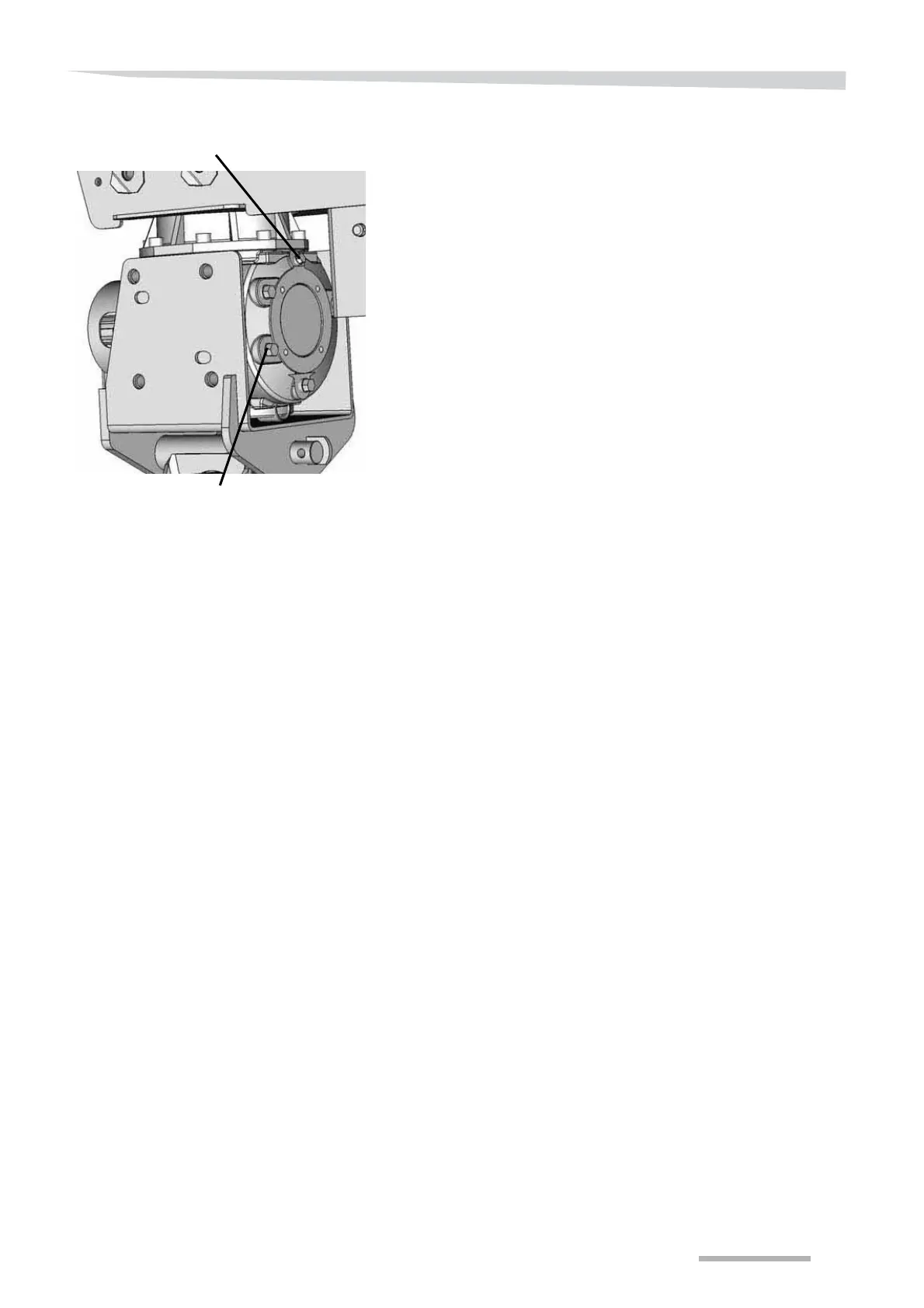

Oilplug 5
Oilplug 4
