Maintenance
80

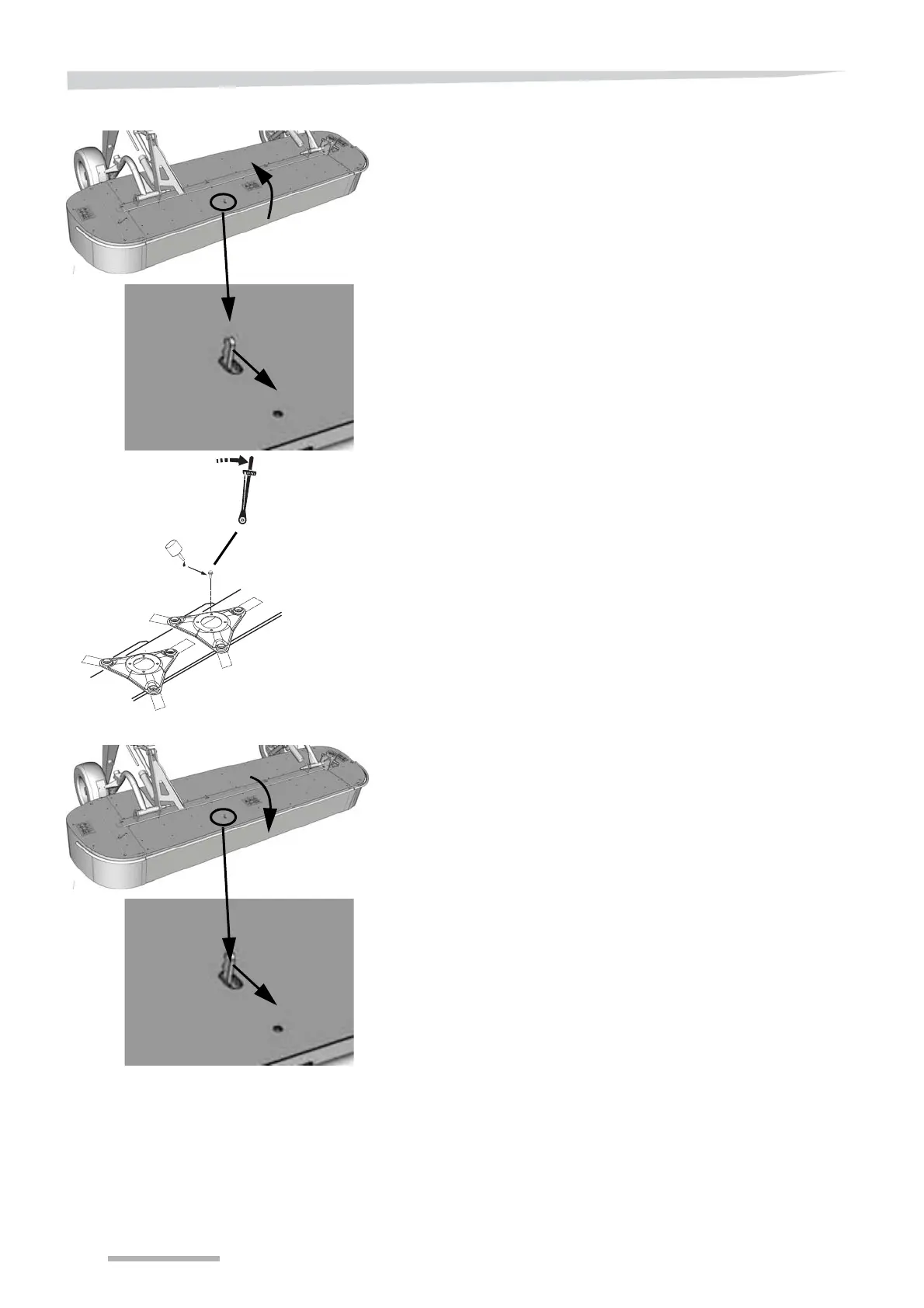

Pull out and release the lock for the guard.
Open the machine's front guard.
Inspect the condition of the cutting discs for deformities and cracks.
Use a suitable tool and tighten the cutting disc to a torque of 80 Nm
(59 ft/lb.)
Pull out and release the lock for the guard.
Close the machine's front guard.
Loctite
242
80 Nm +/- 5
(59 ft/lb. +/- 4)
