Viessmann VITOGAS - Page 18

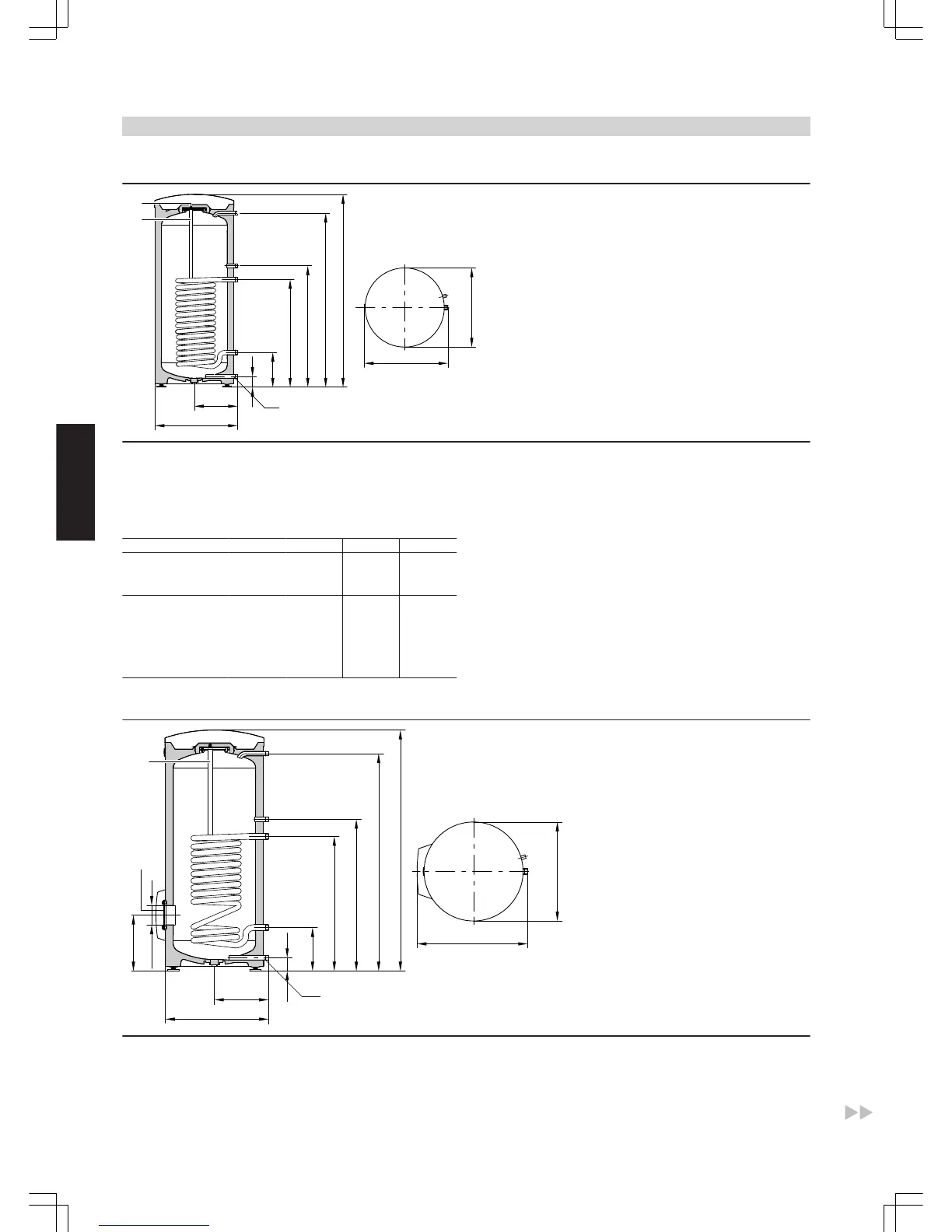

160 and 200 litre capacity
SPR
b
a
c
d
e
f
g
h
k
b
VA
WW
Z
HV/SPR
HR
BÖ
KW/E
BÖ Inspection and cleaning aperture
E Drain
HR Heating water return
HV Heating water flow
KW Cold water
SPR Cylinder temperature sensor of the cylinder temperature control
or the control thermostat
VA Protective magnesium anode
WW DHW
Z DHW circulation
Capacity l 160 200
Length (7) a mm 581 581
Width b mm 608 608
Height c mm 1189 1409
d mm 1050 1270
e mm 884 884
f mm 634 634
g mm 249 249
h mm 72 72
k mm 317 317
300 litre capacity
l
SPR
b
a
c
d
e
f
g
h
k
m
BÖ
VA
WW
Z
HV/SPR
HR
KW/E
b
BÖ Inspection and cleaning aperture
E Drain
HR Heating water return
HV Heating water flow
KW Cold water
SPR Cylinder temperature sensor of the cylinder temperature control
or the control thermostat
VA Protective magnesium anode
WW DHW
Z DHW circulation
DHW cylinder
(cont.)
18
VIESMANN
VITOGAS
3
5822 428 GB
