Viessmann VITOGAS - Delivered Condition

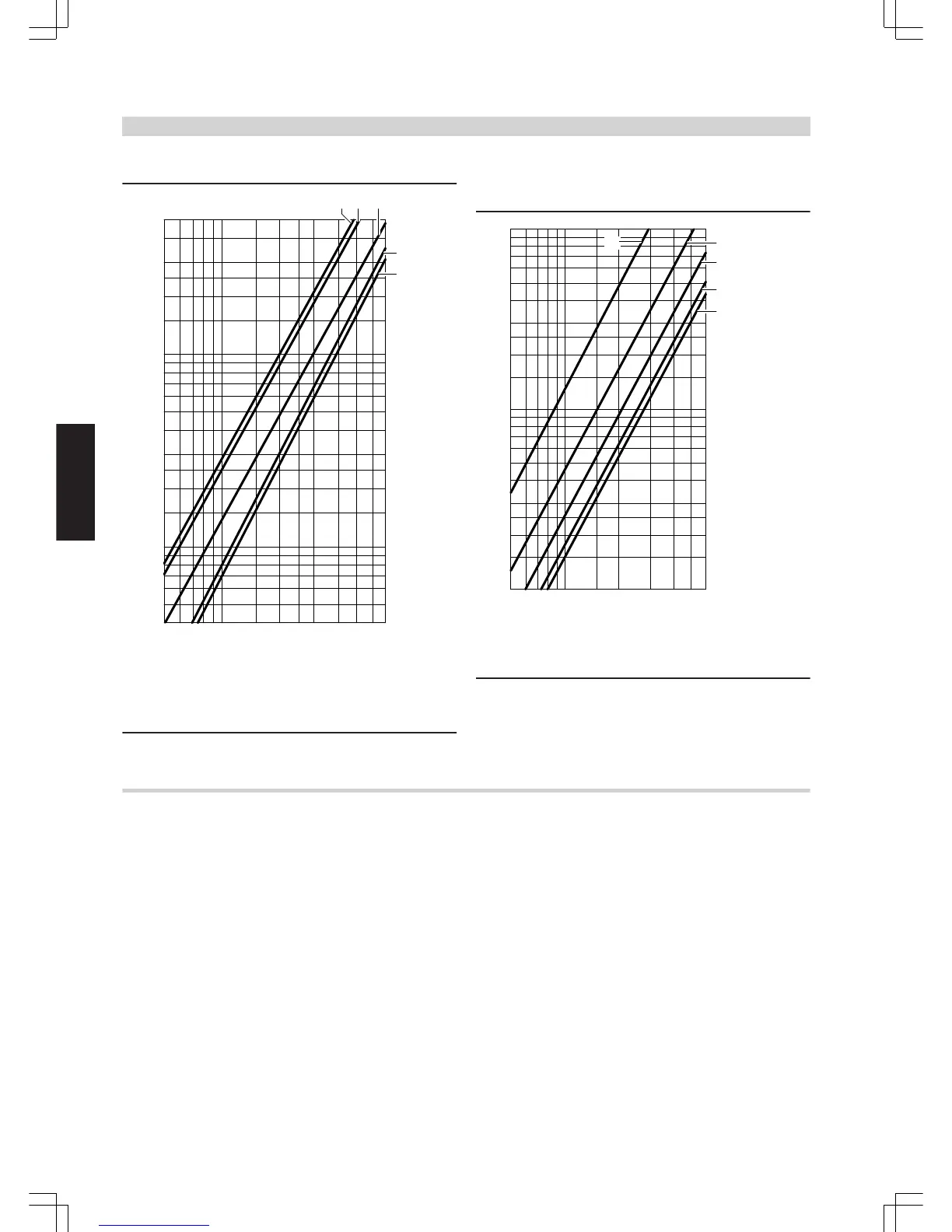

Pressure drop
D
E
ACB
Pressure drop in mbar
4
5
6
8
10
20
30
40
50
60
80
100
200
300
400
500
500 600 800
1000 2000 3000 4000 5000 6000 7000
Heating water throughput in litres/h
of one cylinder cell.
Pressure drop on the heating water side
A
Cylinder capacity 160 and 200 l
B
Capacity 300 l
C
Capacity 500 l
D
Capacity 750 l
E
Capacity 1000 l
1
2
3
4
5
6
8
10
20
30
40
50
60
80
100
500 600 800
1000 2000 3000 4000 5000 6000
Pressure drop in mbar
DHW throughput in l/h
C
D
E
A
B
Pressure drop on the DHW side
A
Cylinder capacity 160 and 200 l
B
Capacity 300 l
C
Capacity 500 l
D
Capacity 750 l
E
Capacity 1000 l
Delivered condition
Vitocell 100-V, type CVA
160, 200 and 300 litre capacity
DHW cylinder made from steel with Ceraprotect enamel coating for
DHW heating.
■ Welded-in sensor well for cylinder temperature sensor or thermo-
stat
■ Adjustable feet
■ Protective magnesium anode
■ Fitted thermal insulation made from rigid PU foam
Colour of the epoxy-coated sheet steel casing: Vitosilver.
DHW cylinders with 160, 200 and 300 litre capacity are also available
in white.
Vitocell 100-V, type CVA
500 litre capacity
DHW cylinder made from steel with Ceraprotect enamel coating for
DHW heating.
■ Welded-in sensor well for cylinder temperature sensor or thermo-
stat
■ Adjustable feet
■ Protective magnesium anode
Packed separately:
■ Flexible PUR foam thermal insulation; colour of the plastic-coated
thermal insulation: Vitosilver
Vitocell 100-V, type CVA
750 and 1000 litre capacity
DHW cylinder made from steel with Ceraprotect enamel coating for
DHW heating.
■ Thermometer
■ Welded-in sensor well for cylinder temperature sensor or thermostat
■ Adjustable feet
■ 2 protective magnesium anodes
Packed separately:
■ Flexible PUR foam thermal insulation; colour of the plastic-coated
thermal insulation: Vitosilver
DHW cylinder
(cont.)
