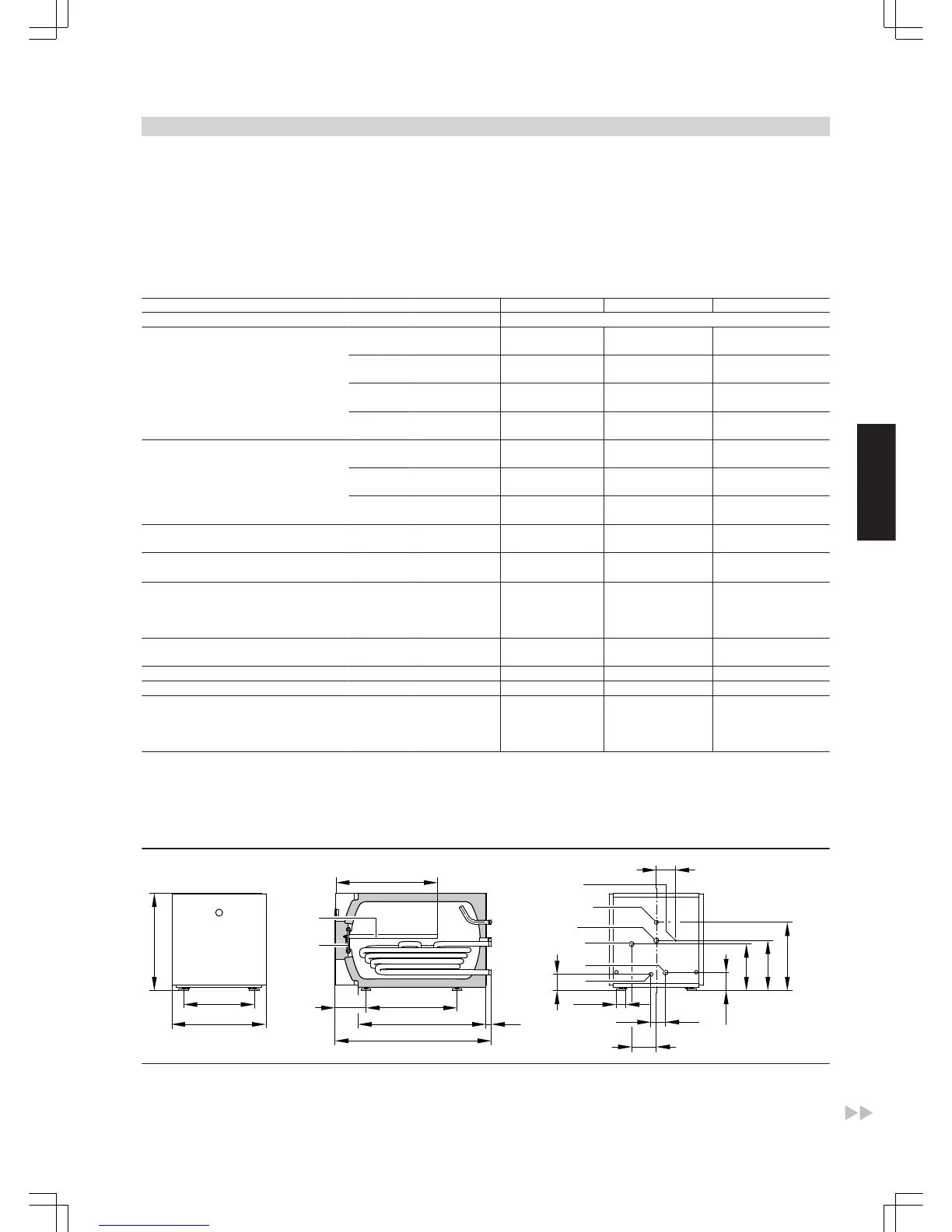

3.3 Specification Vitocell 100-H, type CHA
For DHW heating in conjunction with boilers
Suitable for systems with
■ Heating water flow temperature up to 110 °C
■ DHW temperature up to 95 °C
■ operating pressure on the heating water side up to 10 bar
■ operating pressure on the DHW side up to 10 bar
Cylinder capacity l 130 160 200
DIN register number 0243/06–13 MC/E
Continuous output
for DHW heating from 10 to 45 °C and a
heating water flow temperature of ... at
the heating water throughput stated
below
90 °C
kW 28 33 42
l/h 688 810 1032
80 °C
kW 23 28 32
l/h 565 688 786
70 °C
kW 19 22 26
l/h 466 540 638
60 °C
kW 14 16 18
l/h 344 393 442
Continuous output
for DHW heating from 10 to 60 °C and a
heating water flow temperature of ... at
the heating water throughput stated
below
90 °C
kW 27 32 38
l/h 464 550 653
80 °C
kW 20 24 29
l/h 344 412 498
70 °C
kW 14 17 19
l/h 241 292 326
Heating water throughput
for the stated continuous outputs
m
3
/h
3.0 3.0 3.0
Standby heat loss q
BS
at 45 K temperature differential
(actual values to DIN 4753-8)
kWh/24 h 1.20 1.30 1.50
Overall dimensions
Total length d mm 907 1052 1216
Total width e mm 640 640 640
Total height f mm 654 654 654
Weight
DHW cylinder with thermal insulation
kg 90 103 116
Heating water content l 5.5 7 8
Heating surface
m
2
0.8 1 1.2
Connections
Heating water flow and return R 1 1 1
Cold water, hot water R ¾ ¾ ¾
DHW circulation R 1 1 1
Information regarding continuous output
When designing the system for the continuous output as stated or cal-
culated, allow for the corresponding circulation pump. The stated con-
tinuous output is only achieved when the rated boiler output
≥
contin-
uous output.
