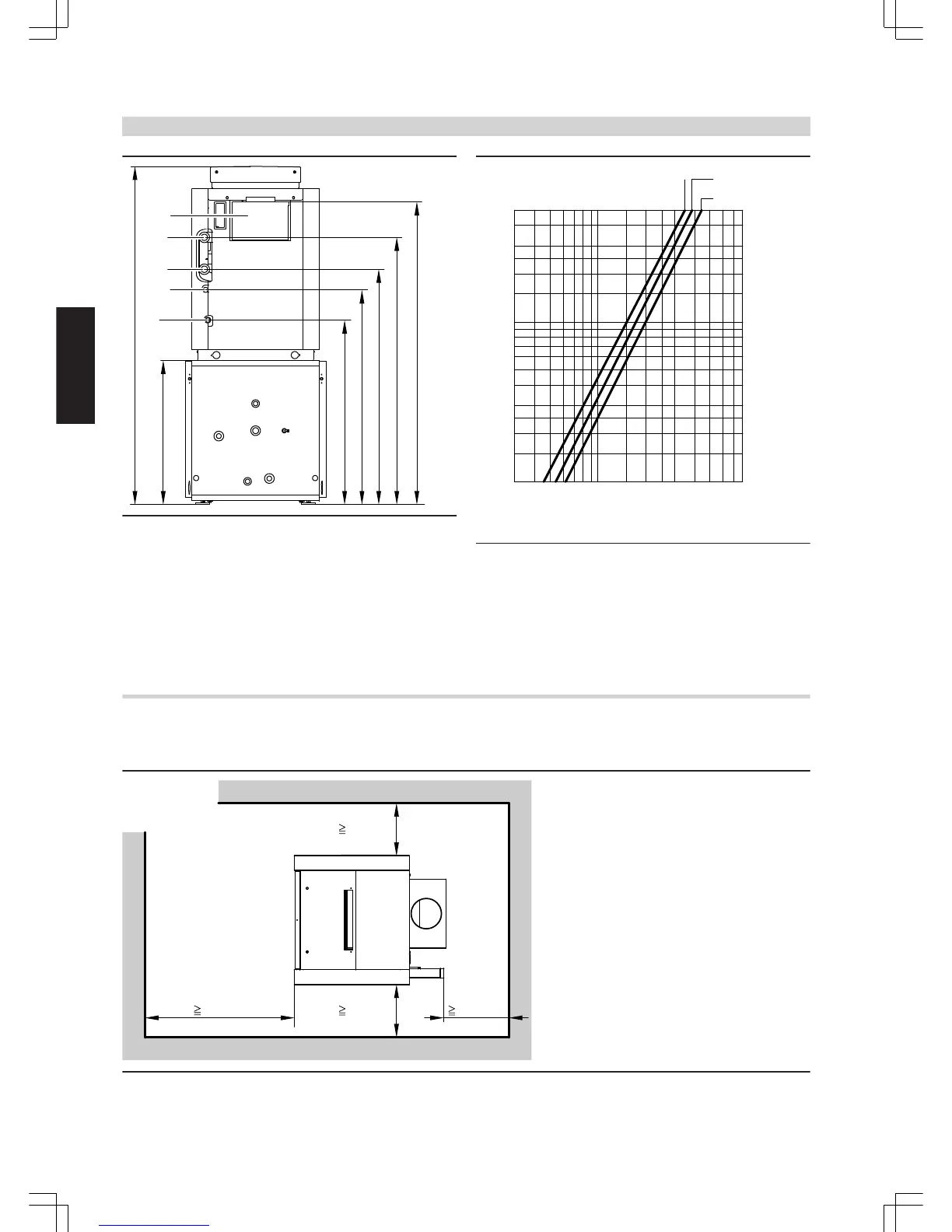

Viessmann VITOGAS - Installation

833
1370
1208
1063
970
654
1531
E
GA
KR
KV
SSI
B
B
For Vitocell 100-H/300-H, see pages 27 and 30. Only possi-
ble for those combinations specified in the pricelist.
E Drain and diaphragm expansion vessel
GA Gas connection
KR Boiler return
KV Boiler flow
SSI Draught hood
Pressure drop (primary circuit)
The Vitogas 100-F is only suitable for fully pumped hot water heating
systems.
B
A
1
2
3
4
5
6
8
10
20
30
40
50
300 400 500 600 800
1000 2000 3000 4000 5000 6000 8000
Pressure drop in mbar
Flow rate in m³/h
C
A
Rated output 29 kW
B
Rated output 35 and 42 kW
C
Rated output 48 and 60 kW
Installation
Minimum clearances
Observe the given dimensions to ensure easy installation and maintenance.
700 mm
250 mm
250 mm 250 mm
Vitogas 100-F
(cont.)
14
VIESMANN
VITOGAS
2
5822 428 GB
