Viessmann VITOGAS - Delivered Condition

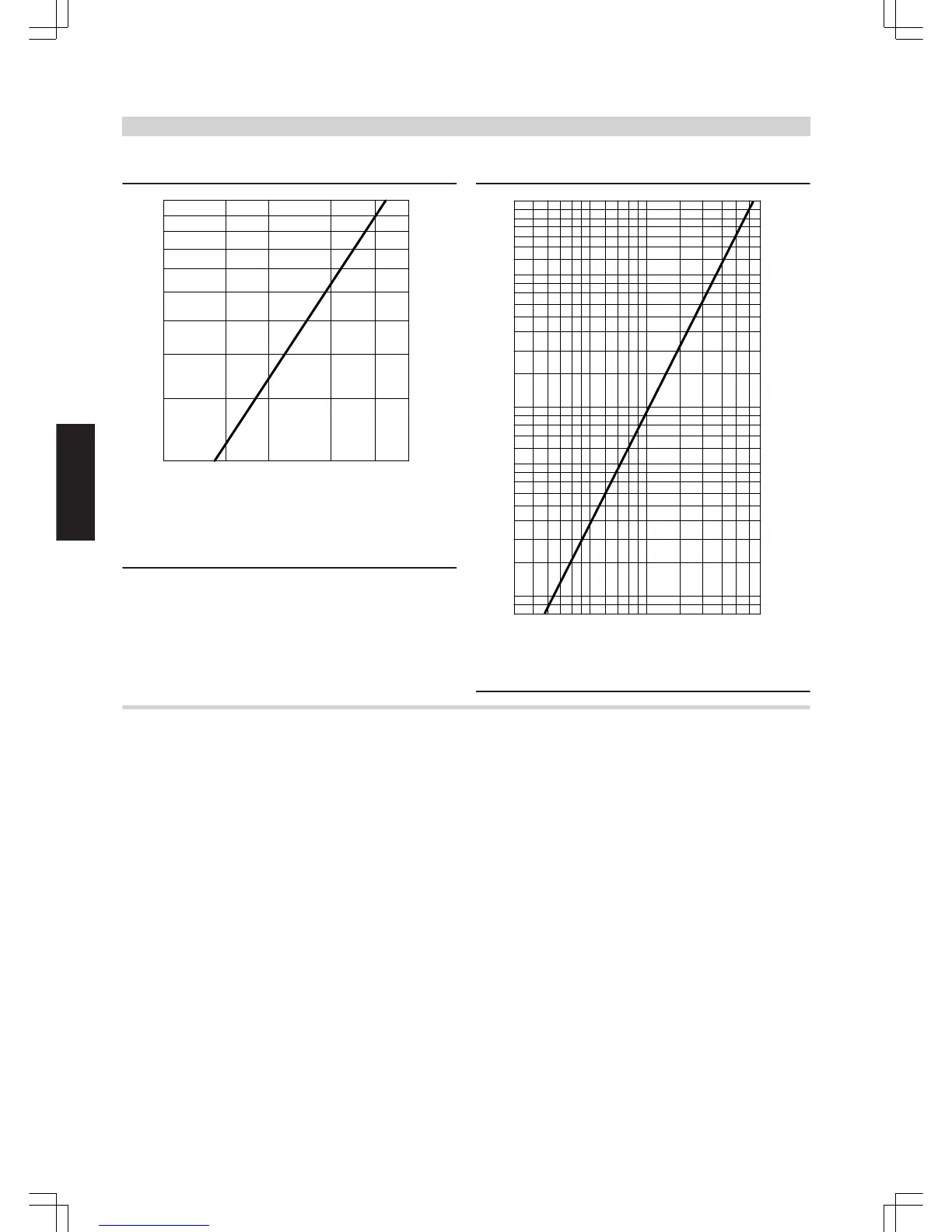

Pressure drop
90
100
10
2000 3000 4000 5000 1000
20
30
40
50
60
70
80
Heating water volume in l/h
of one cylinder cell.
Pressure drop in mbar
Pressure drop on the heating water side
1
0.9
0.8
10
9
8
7
6
5
4
3
2
100
90
80
70
60
50
40
30
20
200
300
400 600 800 1000
2000 4000
120
DHW throughput in l/h
900500 700
3000
Pressure drop in mbar
Pressure drop on the DHW side
Delivered condition
Vitocell 300-V, type EVA, peripheral indirect coil
130 to 200 litre capacity
The DHW side of the DHW cylinder is made from high-alloy stainless
steel with fitted rigid polyurethane foam thermal insulation.
■ Integral welded sensor well for cylinder temperature sensor or con-
trol thermostat
■ Integral thermometer
■ Threaded adjustable feet
Colour of the epoxy-coated sheet steel casing: Vitosilver.
DHW cylinders with 160 and 200 litre capacity are also available in
white.
