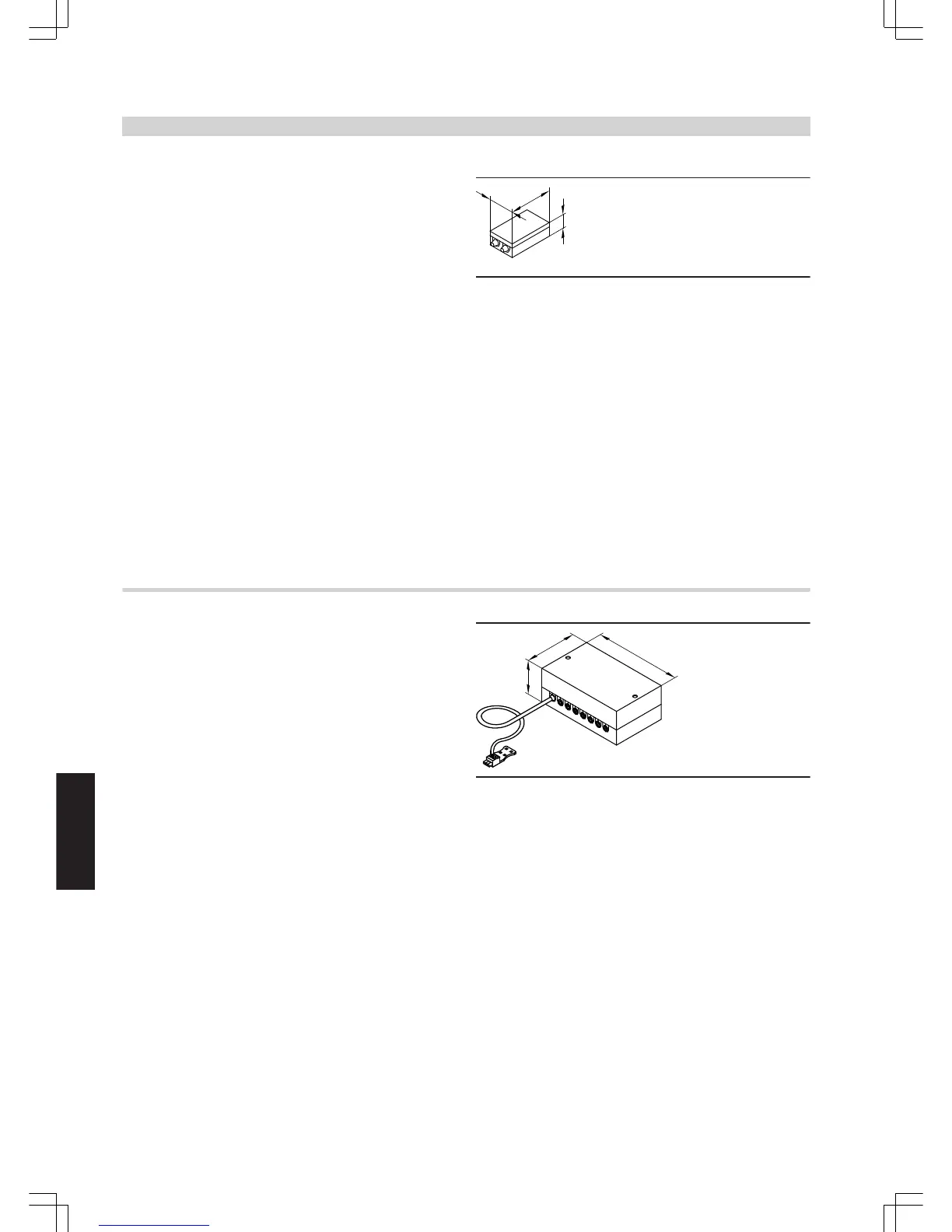

Vitocom 100, type GSM
■ Without SIM card
Part no. Z004594
■ With contract SIM card for the operation of the Vitocom 100 via
mobile phone
Part no. Z004615
Note
For further information regarding the conditions of contract, see the
Viessmann pricelist.
Functions:
■ Remote switching via GSM mobile phone networks
■ Remote scanning via GSM mobile phone networks
■ Remote monitoring via SMS to 1 or 2 mobile phones
■ Remote monitoring of additional systems via digital input (230 V)
Configuration:
Mobile phones via SMS
Standard delivery:
■ Vitocom 100 (subject to order with or without SIM card)
■ Power supply cable with Euro plug (2.0 m long)
■ GSM aerial (3.0 m long), magnetic foot and adhesive pad
■ KM BUS cable (3.0 m long)
On-site requirements:
Good reception for GSM communication of the selected mobile phone
operator.
Total length of all KM BUS subscriber cables up to 50 m.
Specification
Rated voltage 230 V ~
Rated frequency 50 Hz
Rated current 15 mA
Power consumption 4 W
Protection class II
Protection IP 41 to EN 60529; safeguard
through appropriate design
and installation
Function Type 1B to EN 60 730-1
Permissible ambient temperature
– during operation 0 to +55 °C
Installation in living spaces or
boiler rooms (standard ambi-
ent conditions)
– during storage and transport -20 to +85 °C
On-site connection
Fault input DE 1 230 V~
Control module V
Part no. 7143 513
KM BUS user; may only be used as an alternative to the function
extension 0—10 V.
The following function extensions of the control unit may be used using
the control module V:
■ External burner start for a minimum boiler water temperature (affects
the burner and possibly pumps and mixers), for example swimming
pool or ventilation demand
■ External burner blocking
■ Changeover of heating/operating program via external contacts for
each heating circuit separately
■ External fault messaging
■ Central fault message output (zero volt switching contact)
■ Connection for the short-term operation of the DHW circulation pump
(e.g. through a push button).
Specification
Lead length: 3.0 m, ready-to-plug-in
Protection IP 32 to EN 60529; safe-
guard through appropriate
design and installation
Permissible ambient temperature
– during operation 0 to +40 °C
– during storage and transport -20 to +65 °C
Control units
(cont.)
62
VIESMANN
VITOGAS
6
5822 428 GB
