Viessmann VITOGAS - Page 37

142
398
A
B
C
HV HR
98
120
D
G 1½
a
b
HV HR

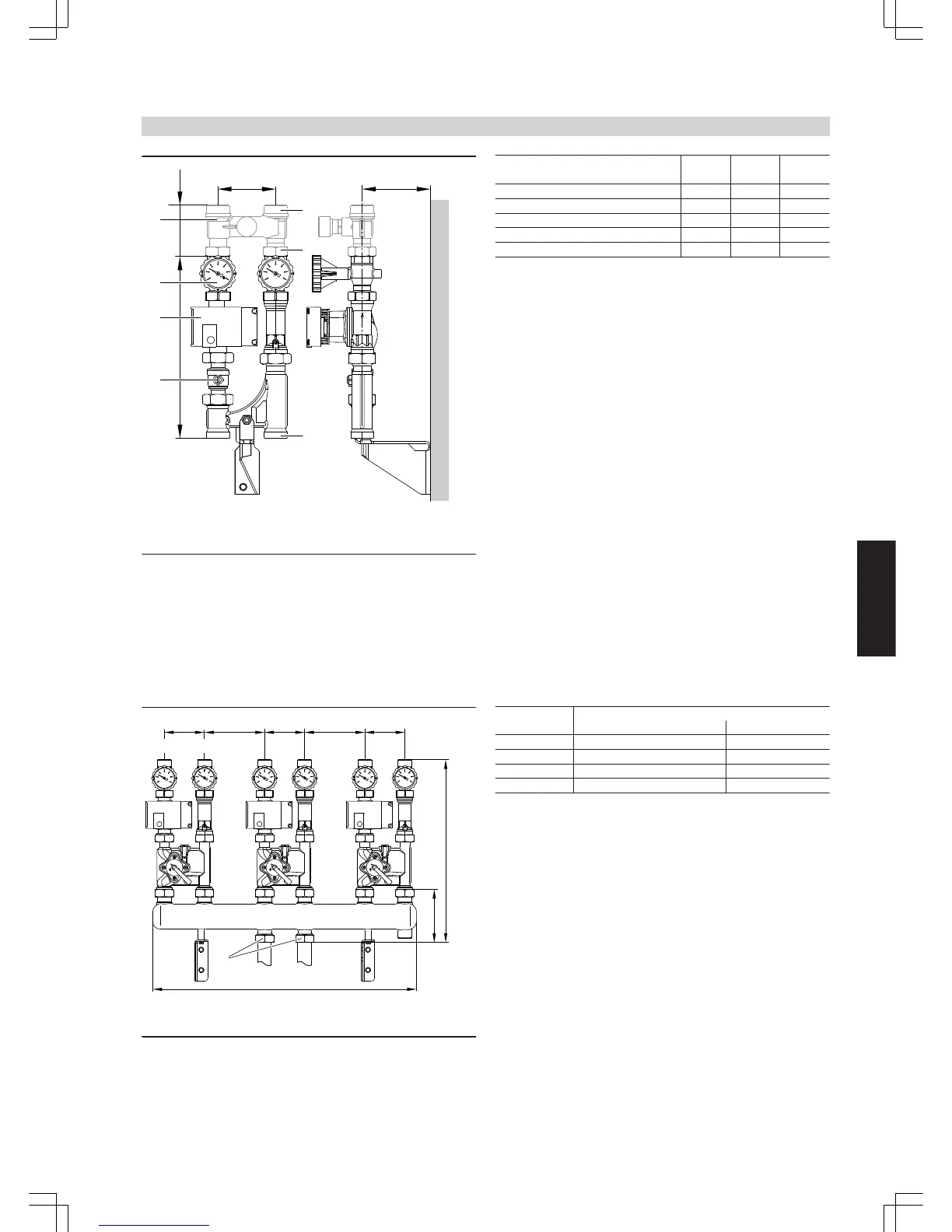

Divicon without mixer (wall mounting, shown without thermal insula-
tion)
HR Heating return
HV Heating flow
A
Overflow valve (accessory for multi-stage circulation pump)
B
Ball valves with thermometer (as programming unit)
C
Circulation pump
D
Ball valve
Heating circuit connec-
tion
R ¾ 1 1¼
Flow rate (max.)
m
3
/h
1.0 1.5 2.5
a (female) Rp ¾ 1 1¼
a (male) G 1¼ 1½ 2
b (female) Rp ¼ 1 1¼
b (male) G 1¼ 1¼ 2
Installation example: Divicon with triple manifold
HV HR
120 120 120
b
a
d
c
180 180
HV HR
(shown without thermal insulation)
HR Heating return
HV Heating flow
Dimensions Manifold with heating circuit connection
R ¾ and R 1 R 1¼
a 135 183
b 535 583
c 784 784
d G 1¼ G 2
Installation accessories
(cont.)
VITOGAS
VIESMANN
37
5822 428 GB
4
