ViewSonic LDP135-151 User Manual

39

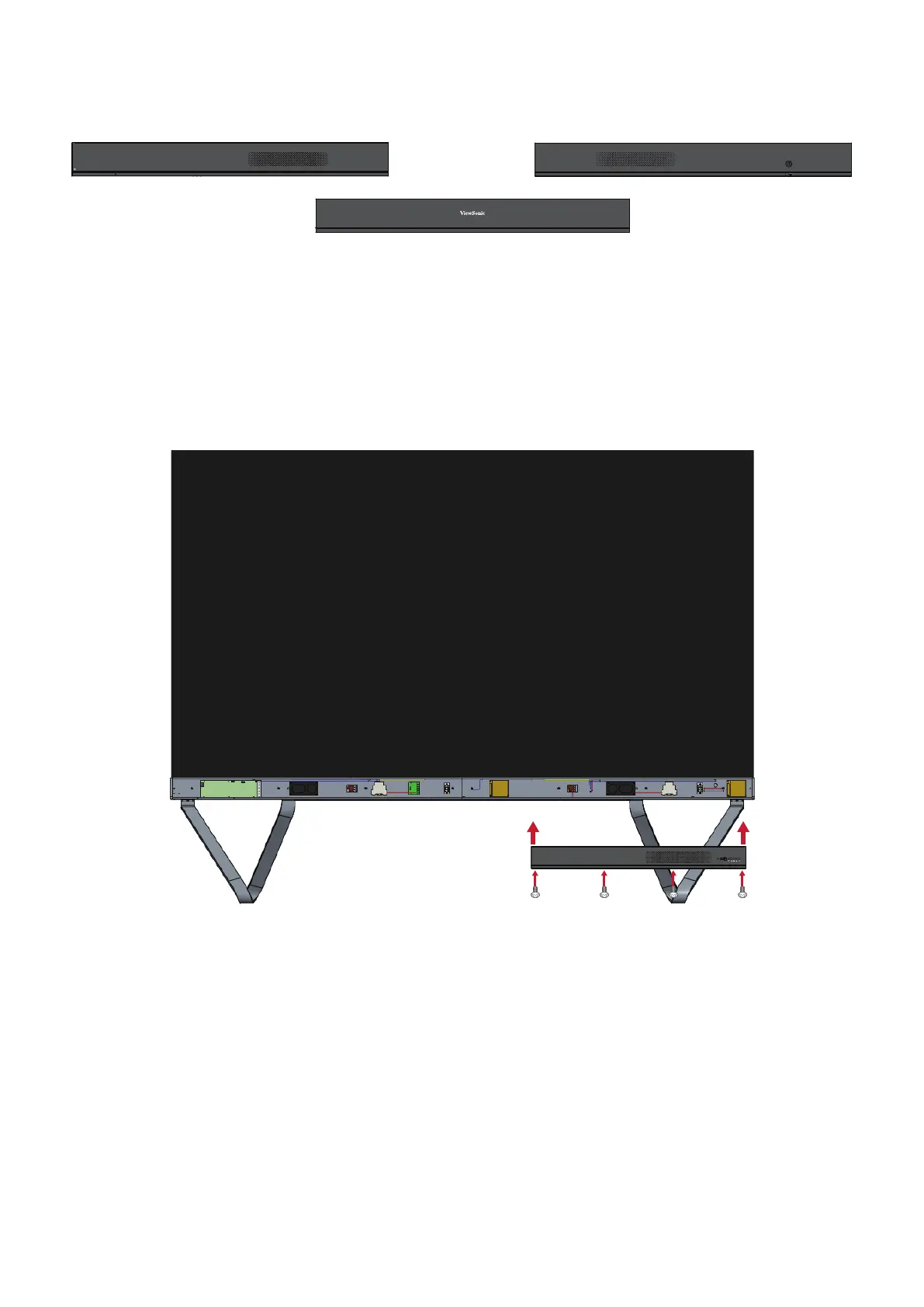

Installing System Control Box Covers
There are three (3) System Control Box Covers: Le, Middle, and Right.
BRIGHTNESSINPUTSTAND-BY
LANUSB-BAUDIO
OUT
HDMI
1
HDMI
2
HDMI
OUT
USBUSBUSBRS232
BRIGHTNESSINPUTSTAND-BY
LANUSB-BAUDIO
OUT
HDMI
1
HDMI
2
HDMI
OUT
USBUSBUSBRS232
1. Begin by installing the Right Cover onto the System Control Box.
NOTE: Ensure the Power Buon cable is connected to the System Control Box
Power cable before securing the Cover.
2. Aer connecng the Power Buon cable, ensure the Right Cover is properly
aligned with the System Control Box; then secure it with the 12 provided
KM3x6mm screws.
HDMI
OUT
AUDIO
OUT
AUDIO
IN
S/PDIF
OUT
IR IN
USB
5V/1.5A
USB
5V/1.5A
LAN
HDMI 1
(2.0)
HDMI 2
(2.0)
HDMI 3
(1.4)
HDMI 4
(1.4)
HDMI 5
(2.1)
RS232
USB C USB A
