ViewSonic LDP135-151 User Manual

51
Wall Mounng

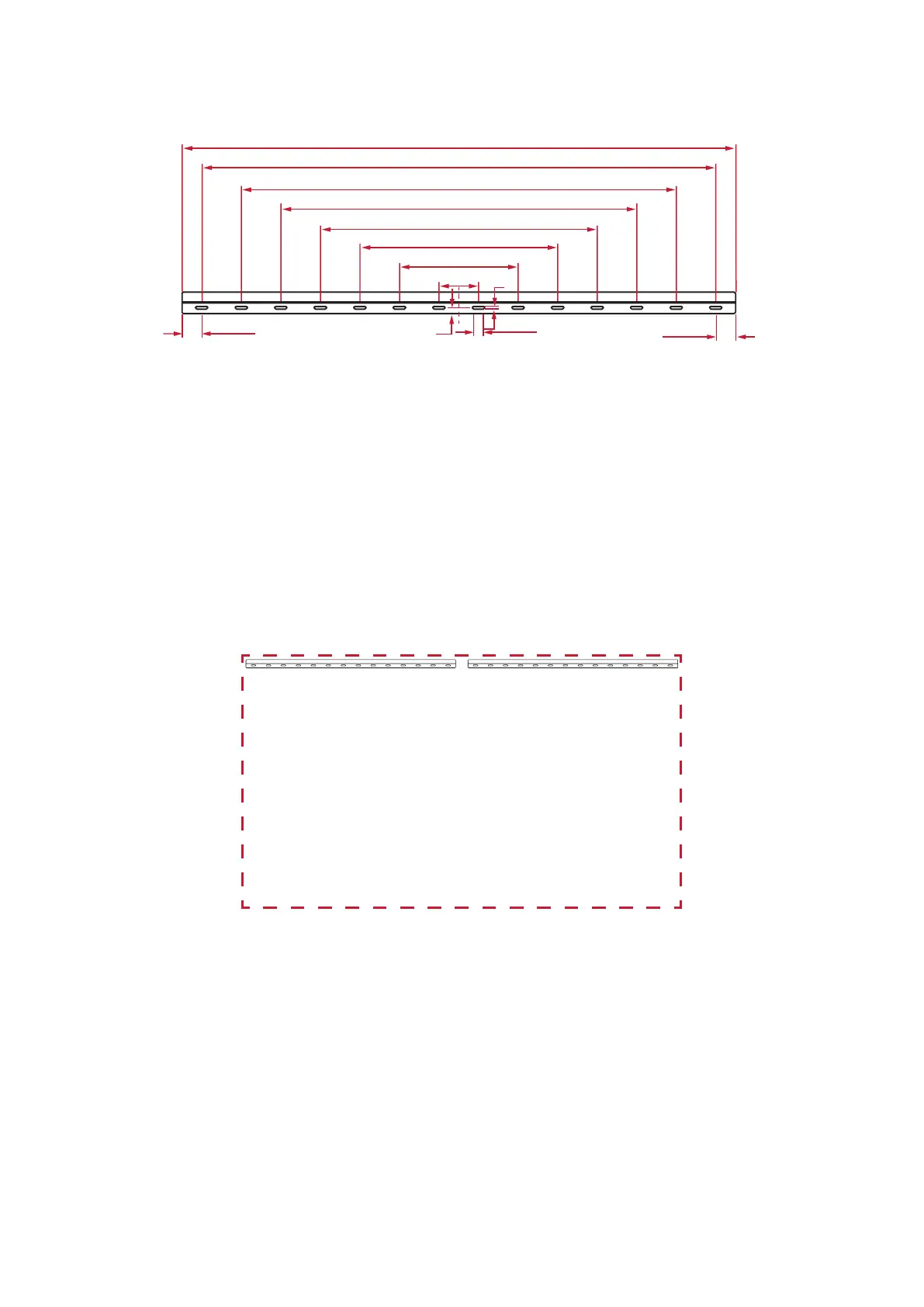

Installing the Upper and Lower Wall Mount Brackets
1422.4 mm
56 in
101.6 mm
4 in
304.8 mm
12 in
508 mm
20 in
711.2 mm
28 in
914.4 mm
36 mm
1117.6 mm
44 in
1320.8 mm
52 in
50.8 mm
2 in
7 mm
⁹/₃₂ in
25.4 mm
1 in
15 mm
¹⁹/₃ ₂ in
50.8 mm
2 in
1. Ensure the wall area and size is an appropriate installaon site.
NOTE: The height of the Upper
Wall Mount Brackets
must not be less than 90
³⁵/₆₄" (2300 mm) from the ground.
2. Using the Wall Mount Bracket (pictured above) as a guide, mark at least eight (8)
holes and pre-drill them.
3. Install the rst Upper Wall Mount Bracket with the provided screws (M6x50mm
Expansion for masonry; TA6x30mm for load bearing wood).
4. Repeat Step 2, ensuring the second Upper Wall Mount Bracket is level with the
rst upper bracket. Keep a 3 ¹/₄" (82.6 mm) space between the two brackets.
