Connecng the System Control Box (Hidden Installaon)
1. Carefully unfold the System Control Box panel. Ensure the main system control
board is on the right.
NOTE: 
Use cauon as the
System Control Box
panel is separated into two pieces
with wires aached.

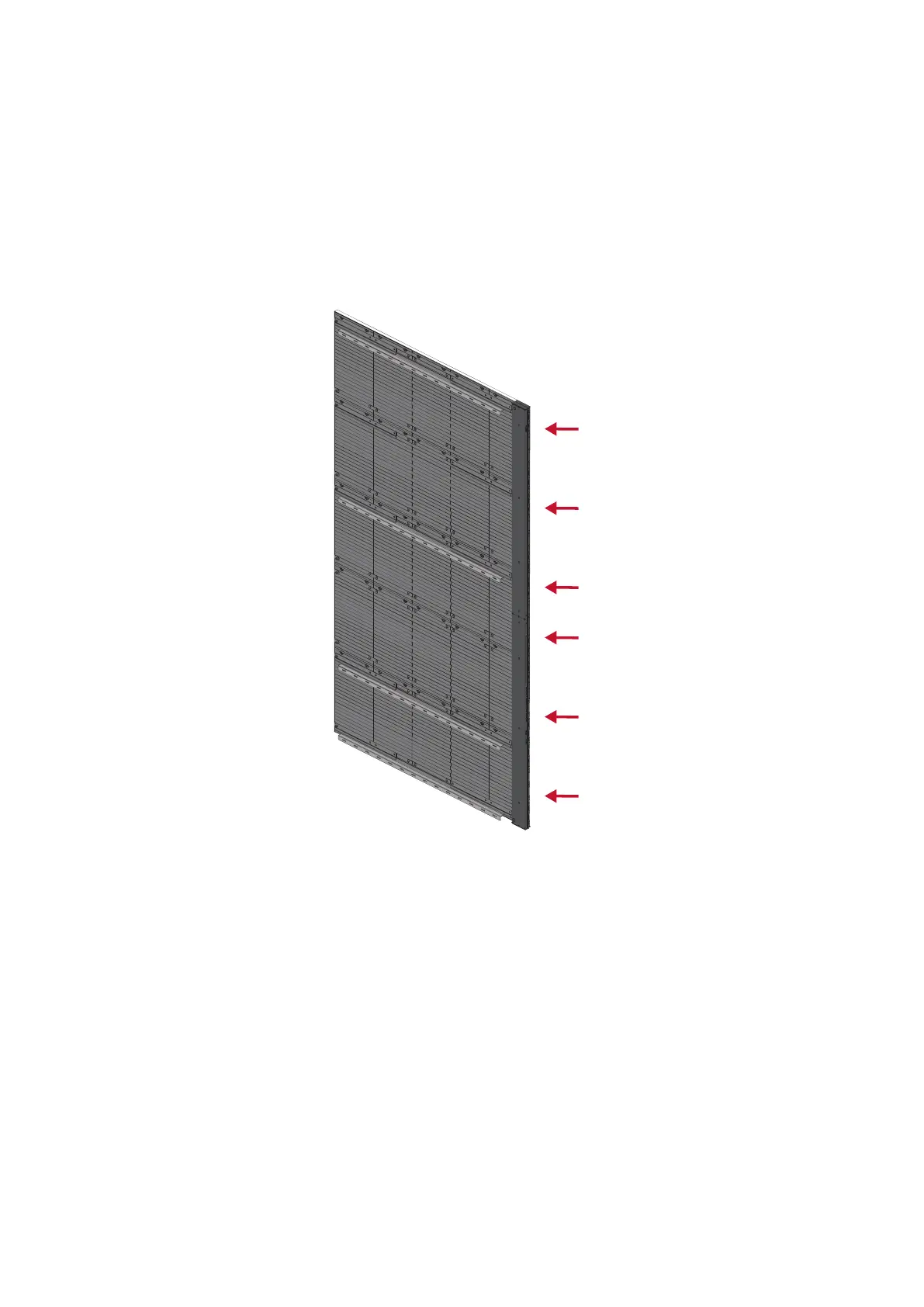

2. Install the le and right part of System Control Box using the M6x16mm screws
behind the Cabinet.
NOTE:  The System Control Box can be installed on the le or right side behind
the display.
