Connecng the System Control Box (Hidden Installaon)

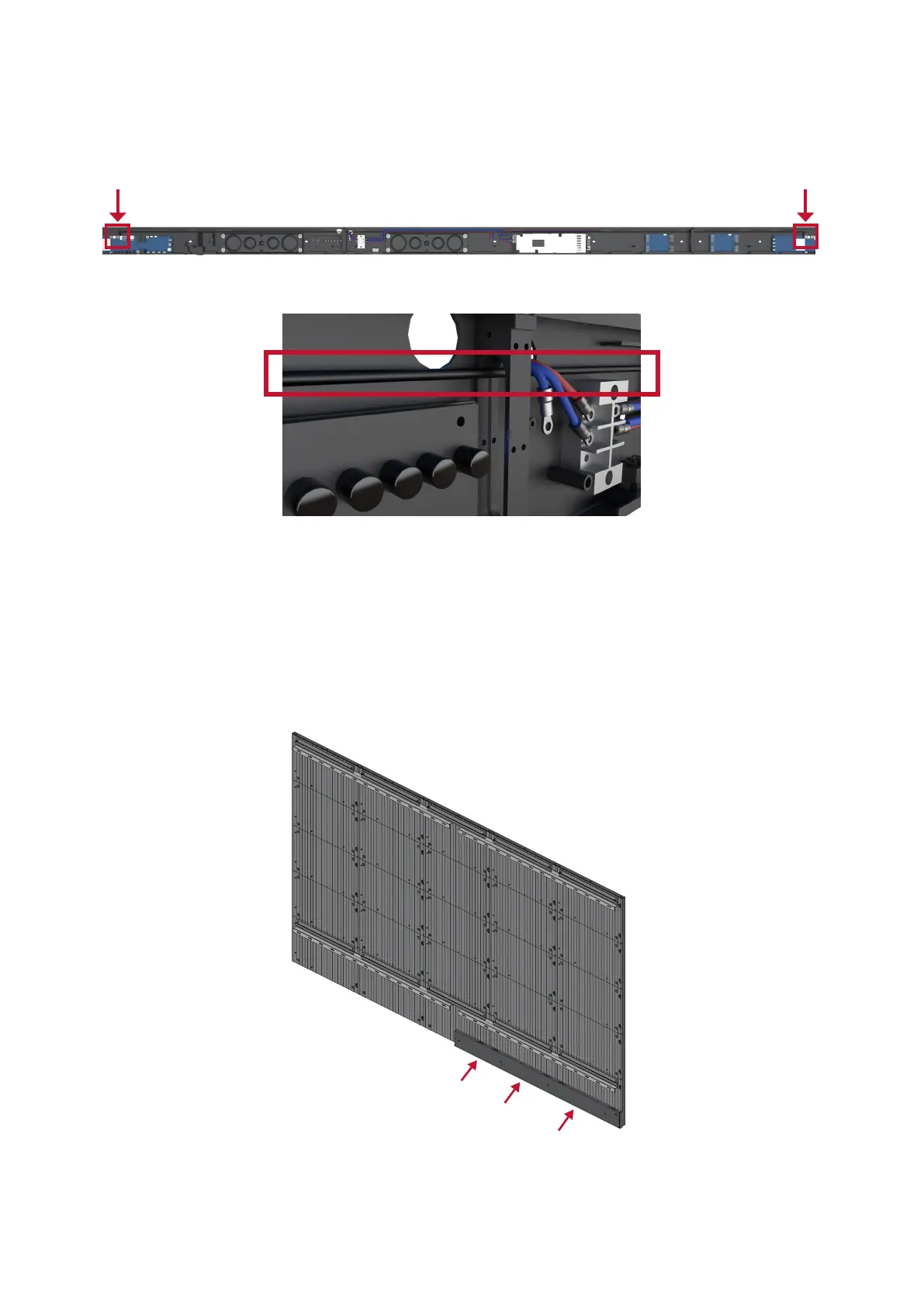

1. Connect one end of an HDMI cable to the HDMI OUT port of Display 2. Then,
connect the other end of the cable to the HDMI IN port of Display 1.
HDMI IN HDMI OUT
NOTE: Route the HDMI cable as shown below:
2. Carefully unfold the System Control Box panel. Ensure the main system control
board is on the right.
NOTE: Use cauon as the
System Control Box
panel is separated into two pieces
with wires aached.
3. Install the le part of System Control Box using the M6x16mm screws behind the
Cabinet.
