6. Repeat Steps 1~5 for the second display.
7. Aer installing the System Control Box of both displays, the installaon wall
should look like:
Display 1 Display 2
8. Connect one end of an HDMI cable to the HDMI OUT port of Display 2. Then,
connect the other end of the cable to the HDMI IN port of Display 1.
HDMI IN HDMI OUT

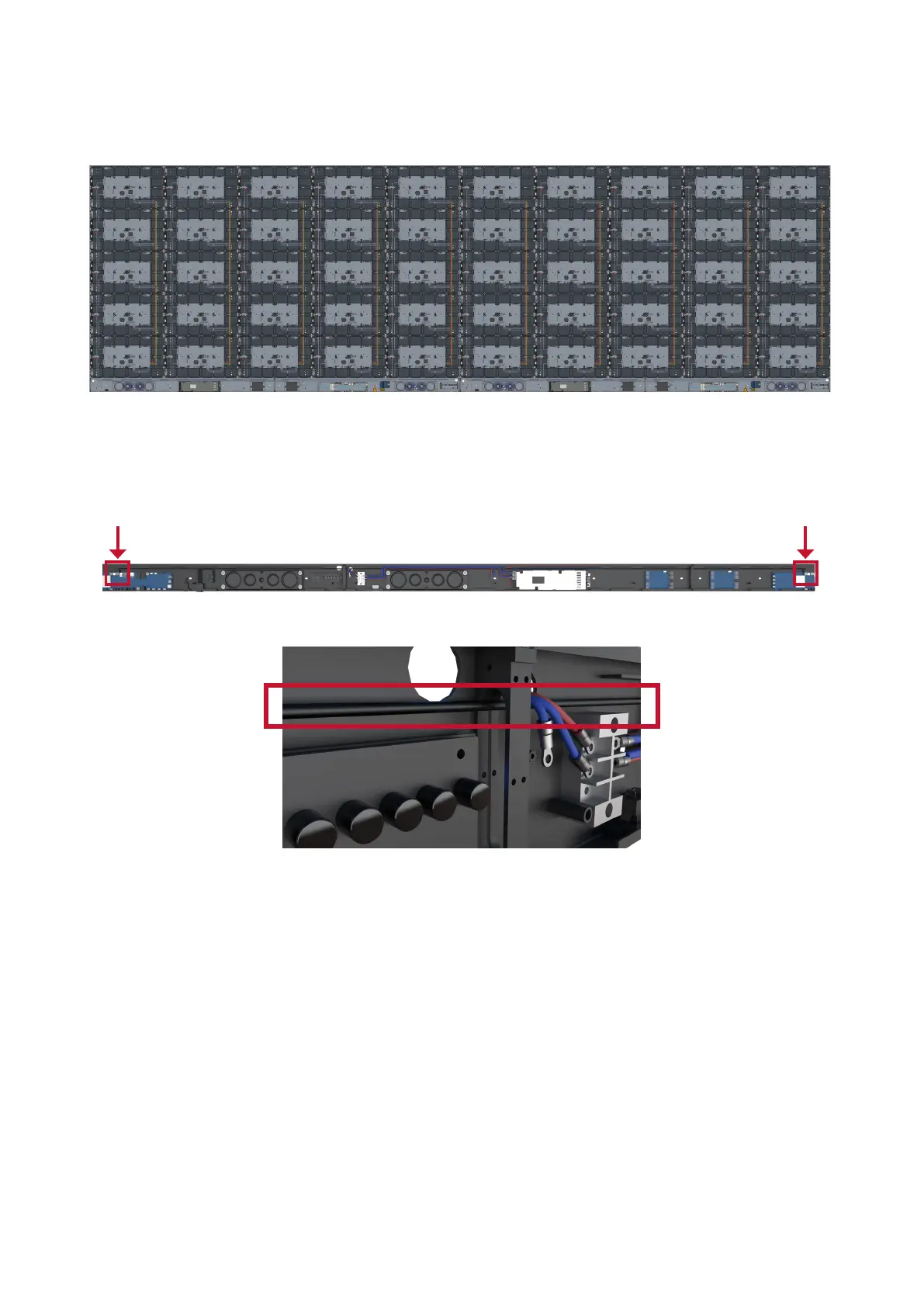

NOTE: Route the HDMI cable as shown below:
9. Install the System Control Box Covers with the KM3x6mm screws from le to right
(i.e., Display 1 le cover, Display 1 middle cover, Display 1 right cover, Display 2
le cover, etc.).
NOTE: Refer to page 26 for more informaon.
To Next Page
