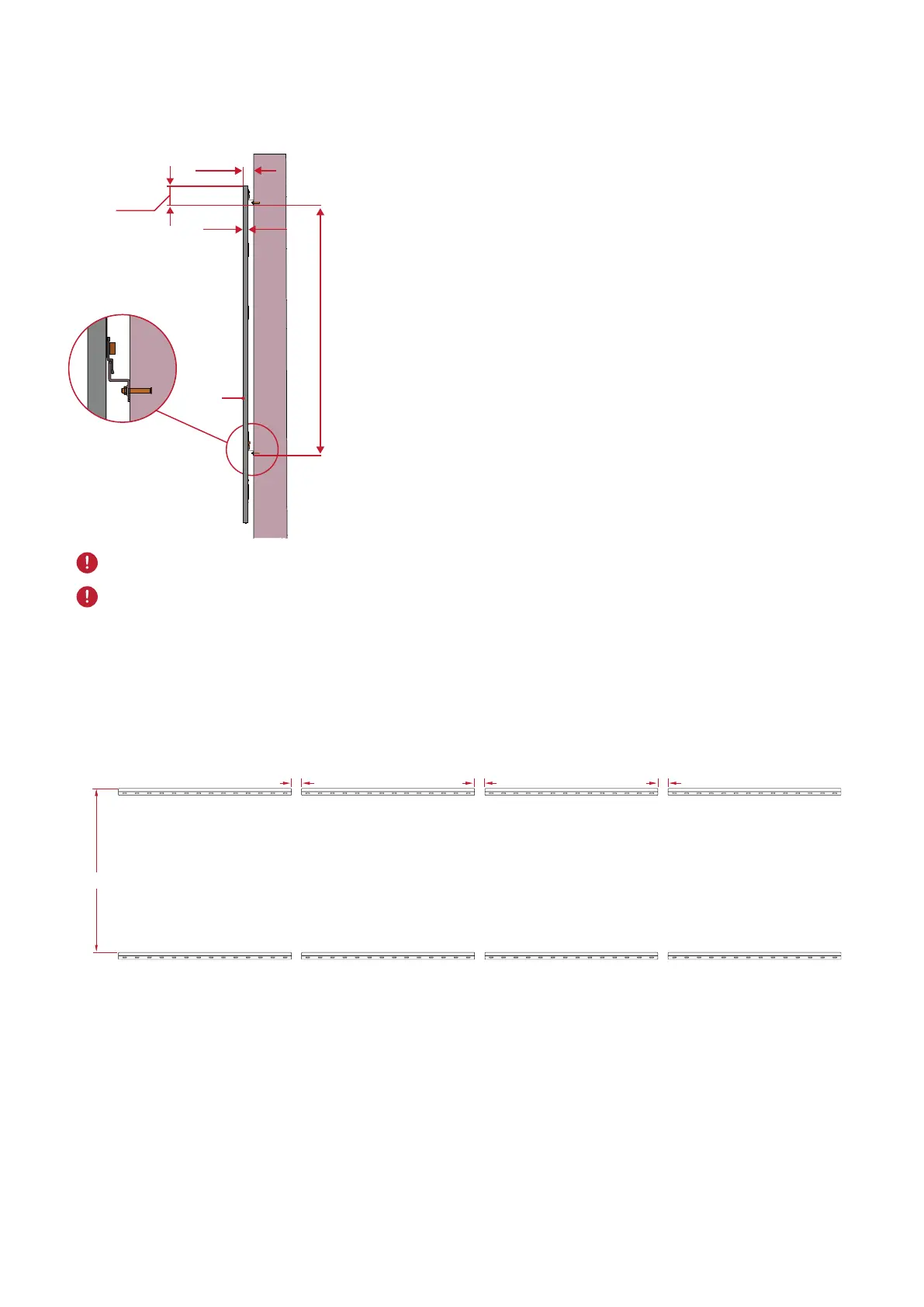

5. Install the Lower Wall Mount Brackets in the same manner as the Upper Wall
Mount Brackets. The distance between the Upper and Lower Wall Mount
Brackets is 53 ⁵/₃₂" (1350 mm).
57
mm
4 ¹/₆₄ in
2 ¹/₄ in
102 mm
53 ⁵/₃₂ in
1350 mm
W
a
l
l
Display
25 mm
⁶³/₆ ₄ in
NOTE: You can also install the Upper Wall
Mount Brackets, hang the screen, and
then install the Lower Wall Mount
Brackets for a more precise t.
Ensure the wall can safely support 297.62 lbs. (135 kg).
Ensure the deviaon of the wall surface is < ¹³/₆₄" (< 5 mm).
6. Repeat Steps 1~5 for the second display. Keep a 2 ⁵⁵/₆₄" (72.8 mm) space between
the rst and second display's Wall Mount Brackets.
7. Aer installing both Upper and Lower Wall Mount Brackets of both displays, the
installaon wall should look like:
3 ¹/₄ in
82.6 mm
3 ¹/₄ in
82.6 mm
2 ⁵⁵/₆₄ in
72.8 mm
53 ⁵/₃₂ in
1350 mm
