42

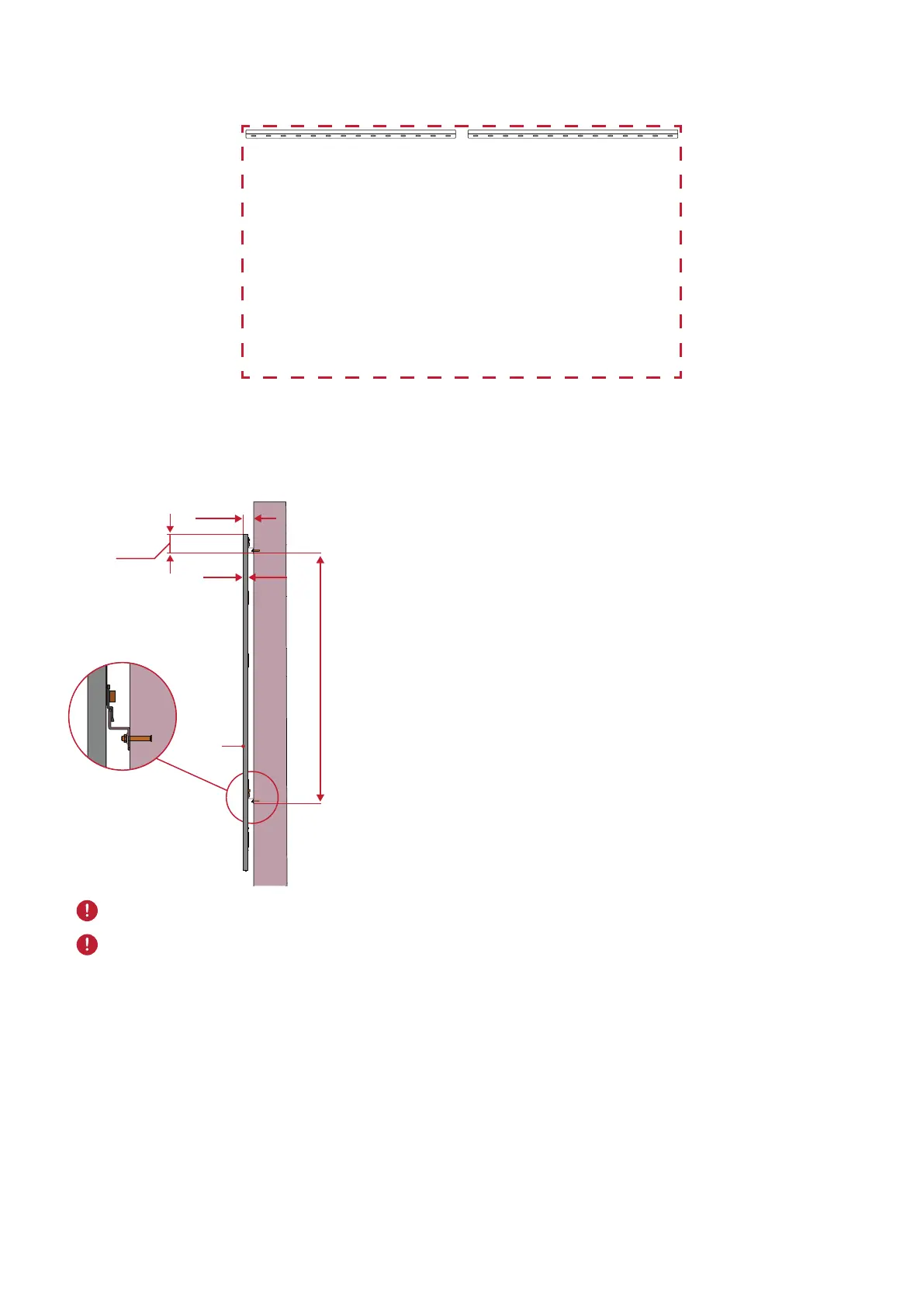

4. Repeat Step 2, ensuring the second Upper Wall Mount Bracket is level with the
rst upper bracket. Keep a 3 ¹¹/₃₂" (85 mm) space between the two brackets.
5. Install the Lower Wall Mount Brackets in the same manner as the Upper Wall
Mount Brackets. The distance between the Upper and Lower Wall Mount
Brackets is 53 ⁵/₃₂" (1350 mm).
57
mm
4 ¹/₆₄ in
2 ¹/₄ in
102 mm
53 ⁵/₃₂ in
1350 mm
W
a
l
l
Display
25 mm
⁶³/₆ ₄ in
NOTE: You can also install the Upper Wall
Mount Brackets, hang the screen, and
then install the Lower Wall Mount
Brackets for a more precise t.
Ensure the wall can safely support 297.62 lbs. (135 kg).
Ensure the deviaon of the wall surface is < ¹³/₆₄" (< 5 mm).
