46
5. Place the remaining Cabinets up onto the Upper Wall Mount Brackets. Install
from le to right, ensuring the Mounng Brackets sit securely on the Wall Mount
Brackets.

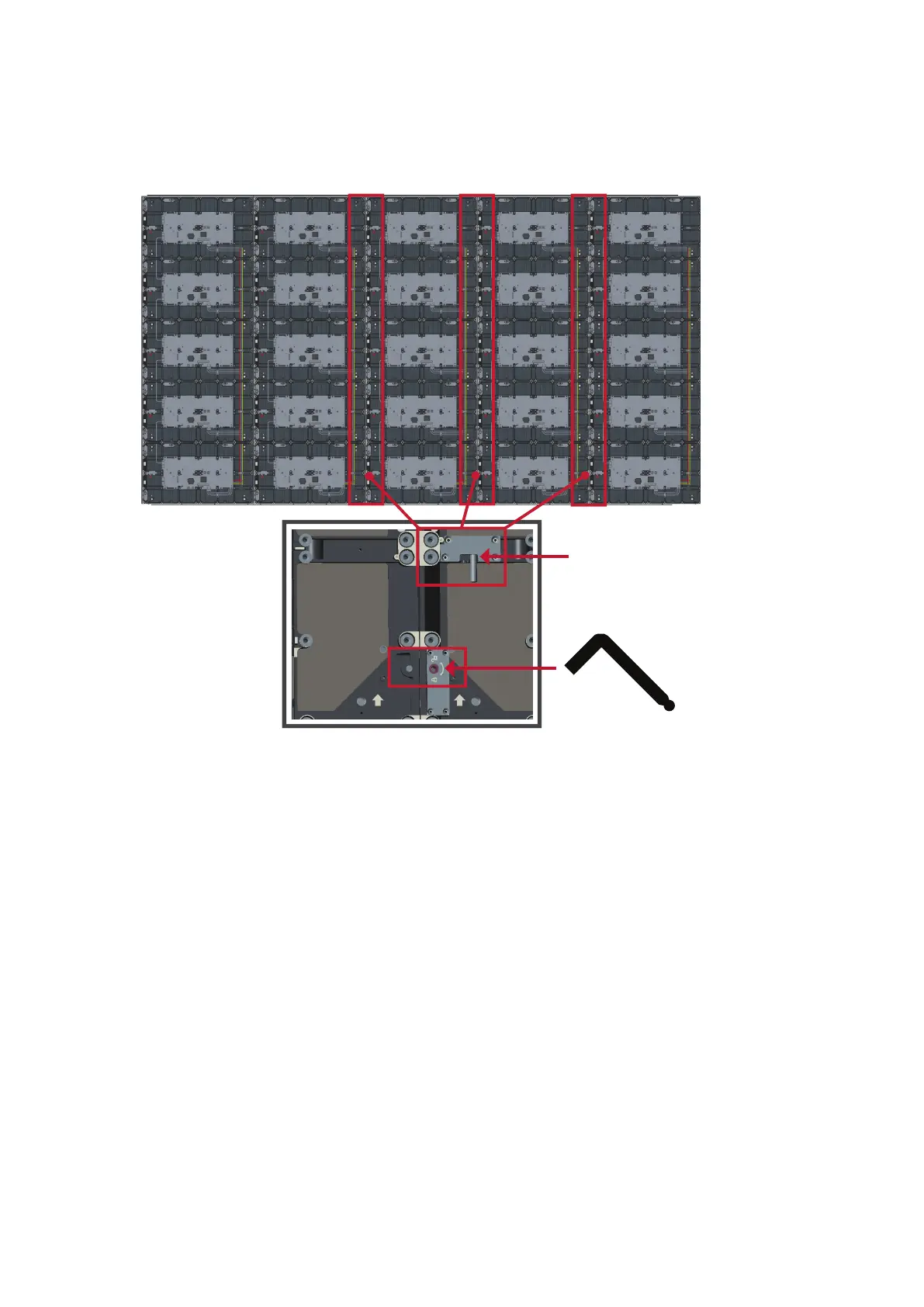

6. Repeat Step 4, securing the cabinets together with each Locking Bolt and Hook.
1
3
4
Push the Locking Bolt.
Lock each Hook with the hex tool.
NOTE: There are ve (5)
Locking Bolts
and 10
Hooks
between each cabinet.
