48
4. Connect the Network and Power cables of the Cabinets to the System Control
Box.
NOTE: There are ve (5) Network and ve (5) Power cables to connect.

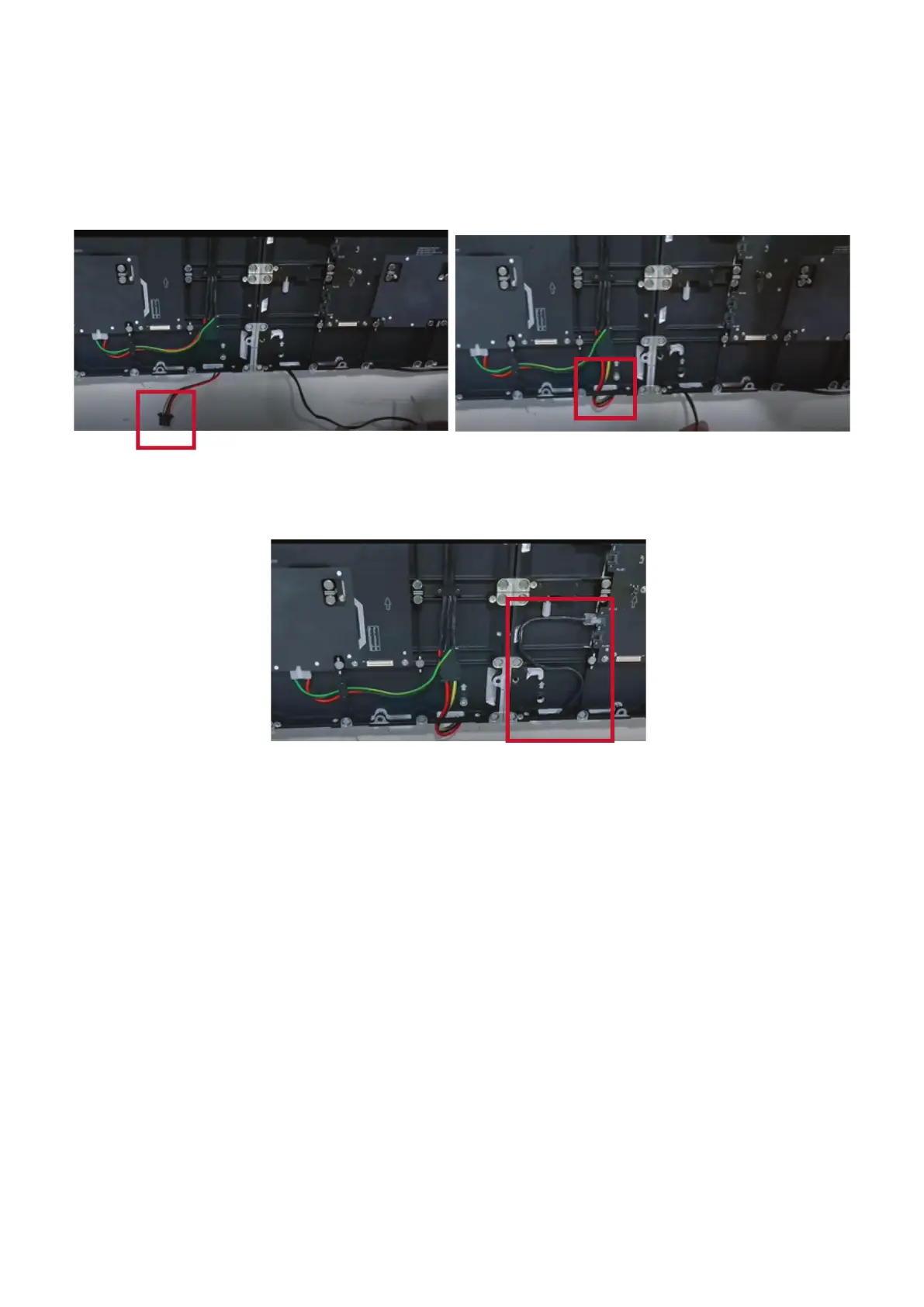

• Route the Power cable through the opening provided in the Cabinet and connect
it to the power plug.
• Route the Network cable through the opening provided in the Cabinet into an
“S-shape" and connect it to the network port.
5. Install the bezels from the boom of the screen and use the M6x10mm screws to
secure it to the Cabinet.
To Next Page
