ViewSonic PJD5112 Service Manual

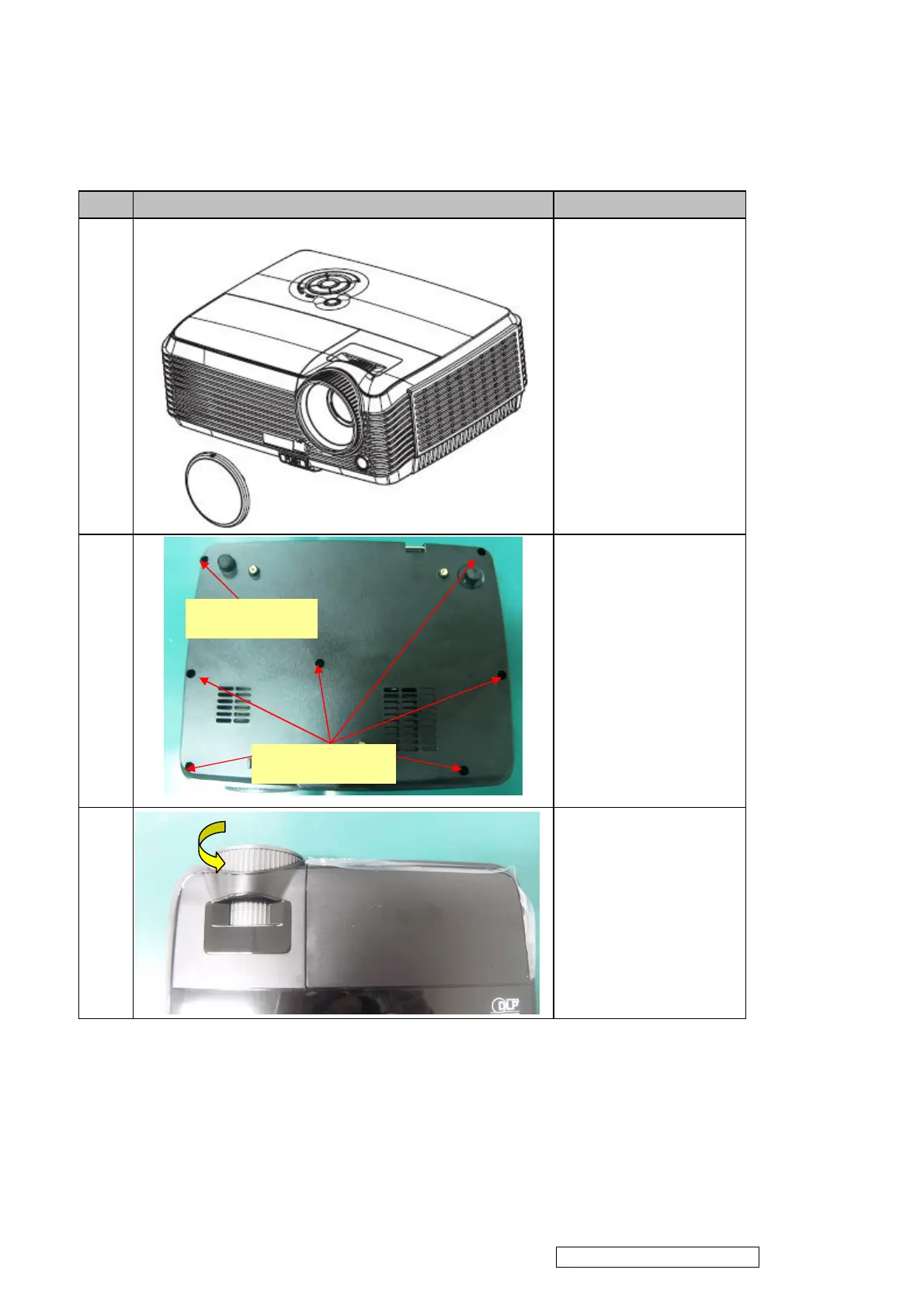

Step Figure Description
1
Press the power button to
shutdown the projector and
disconnect the power cord.
If the lamp is hot, please do
not start any procedure until
the projector lamp cools
down.
Flip the projector and
remove the lens cover.
2
1. Flip the projector on the
table.
2. Remove the screws
J1635-A491-00*6 and
J1635-3670-00*1 on the
Bottom cover as shown.
3
Rotate the Focus Ring by
forward sequence to take it
off from the unit.
J1635-A491-00*6
J1635-3670-00
ViewSonicCorporation Confidential - Do Not Copy PJD5112
18

ViewSonic PJD5112 Specifications

General

Projection distance	1.2 - 10 m
Projection technology	DLP
Contrast ratio (typical)	2000:1
Projector native resolution	SVGA (800x600)
Aspect ratio	4:3, 16:9
RS-232 ports	1
Dimensions (WxDxH)	280 x 218 x 114 mm
Power requirements	90~240VAC
Lamp power	180 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	5000 h
Focus	Manual
RMS rated power	2 W
Headphone outputs	2
Serial interface type	RS-232
Noise level	30 dB
Power consumption (standby)	1 W
Power consumption (typical)	235 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Product type	Standard throw projector
Market positioning	Presentation

Weight and Dimensions

Weight	2600 g
