ViewSonic PJD5112 Service Manual

3.4 Disassembly Lamp Module
As the projector operates over time, the brightness of the projector lamp graduall y decreases
and the lamp becomes more susceptible to breakage. We recommend replacing the lamp if a
warning message is displayed. Do not attempt to replace the lamp yourself. Contact the
qualified service personnel for replacement.

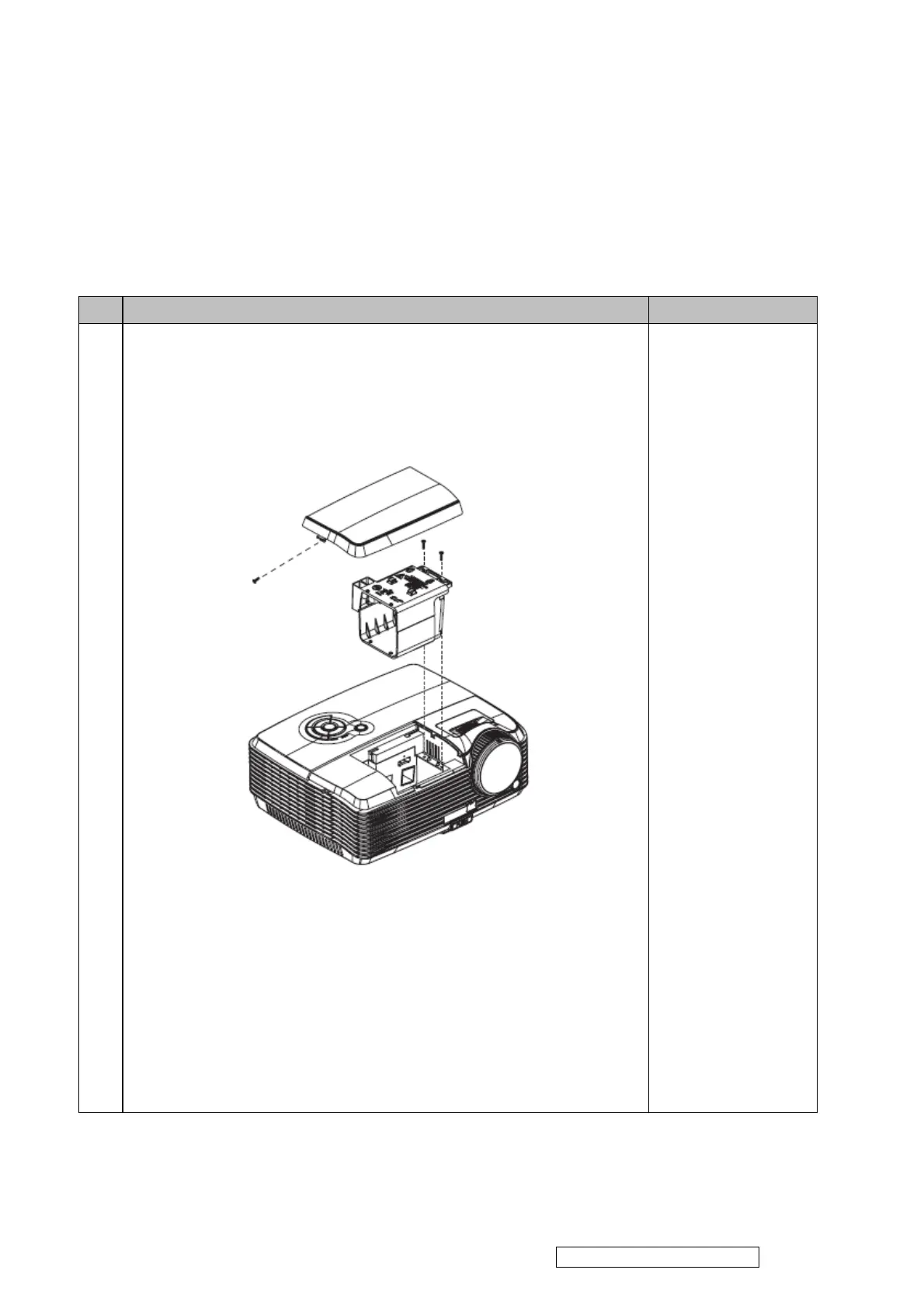

Step Figure Description
1
Note: Turn on the projector. If the lamp does not turn on after
the warm-up period, please reinstall the lamp.
1. Turn off the projector.
2. If the projector is
installed in a ceiling
mount, remove it.
3. Unplug the power
cord
.
4. Loosen the screw in
the side of the lamp
cover and remove the
cover.
5. Remove the screws
from the lamp
module, raise the
handle, and lift out the
module.
6. Insert the new lamp
module into the
projector and tighten
the screws.
7. Replace the lamp
cover and tighten the
screw.
8. Turn on the projector.
If the lamp does not
turn on after the
warm-up period, try
reinstalling the lamp.
9. Reset the lamp hour.
Refer to the “Setting”
menu.
ViewSonicCorporation Confidential - Do Not Copy PJD5112
25

ViewSonic PJD5112 Specifications

General

Projection distance	1.2 - 10 m
Projection technology	DLP
Contrast ratio (typical)	2000:1
Projector native resolution	SVGA (800x600)
Aspect ratio	4:3, 16:9
RS-232 ports	1
Dimensions (WxDxH)	280 x 218 x 114 mm
Power requirements	90~240VAC
Lamp power	180 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	5000 h
Focus	Manual
RMS rated power	2 W
Headphone outputs	2
Serial interface type	RS-232
Noise level	30 dB
Power consumption (standby)	1 W
Power consumption (typical)	235 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Product type	Standard throw projector
Market positioning	Presentation

Weight and Dimensions

Weight	2600 g
