ViewSonic PJD5112 - Ballast Board

Connector Description
No 3 Speaker
No 4 Color Wheel control
No 5 Color Wheel Sensor
No 6 Ignite signal connected to Ballast
No 7 Lamp FAN
No 8 Thermal sensor
No 9 Safety switch
No 10 Main Board Power Supply
No 11 FAN2
No 12 FAN1
No 13 Back IR
No 14 Keypad control

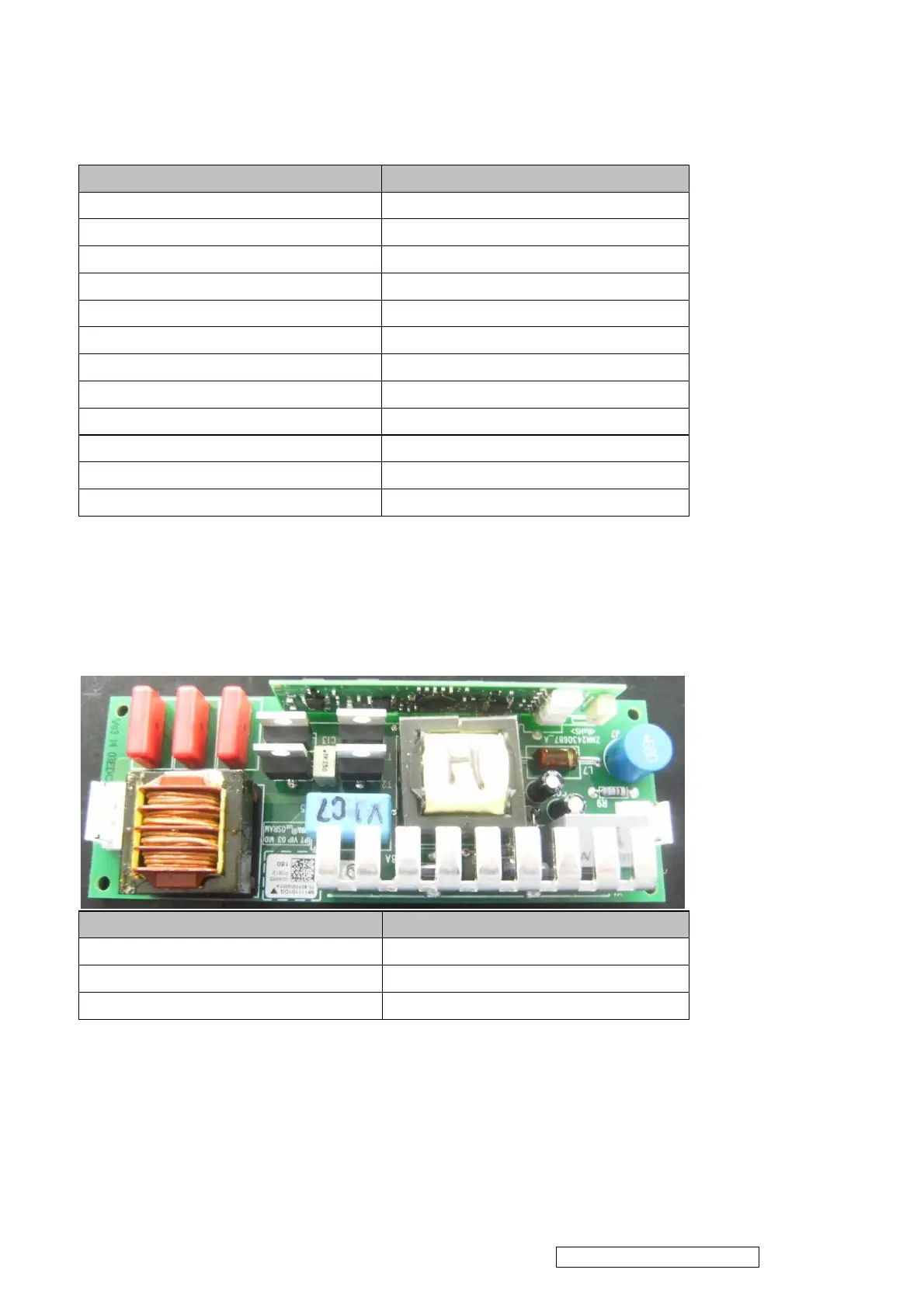

5.3 Ballast Board
Connector Description
No 1 Lamp power supply
No 2 Ignite signal connected to Main board
No 3 High Voltage Power supply
No1
No2
No3
