ViewSonic PJD5112 Service Manual

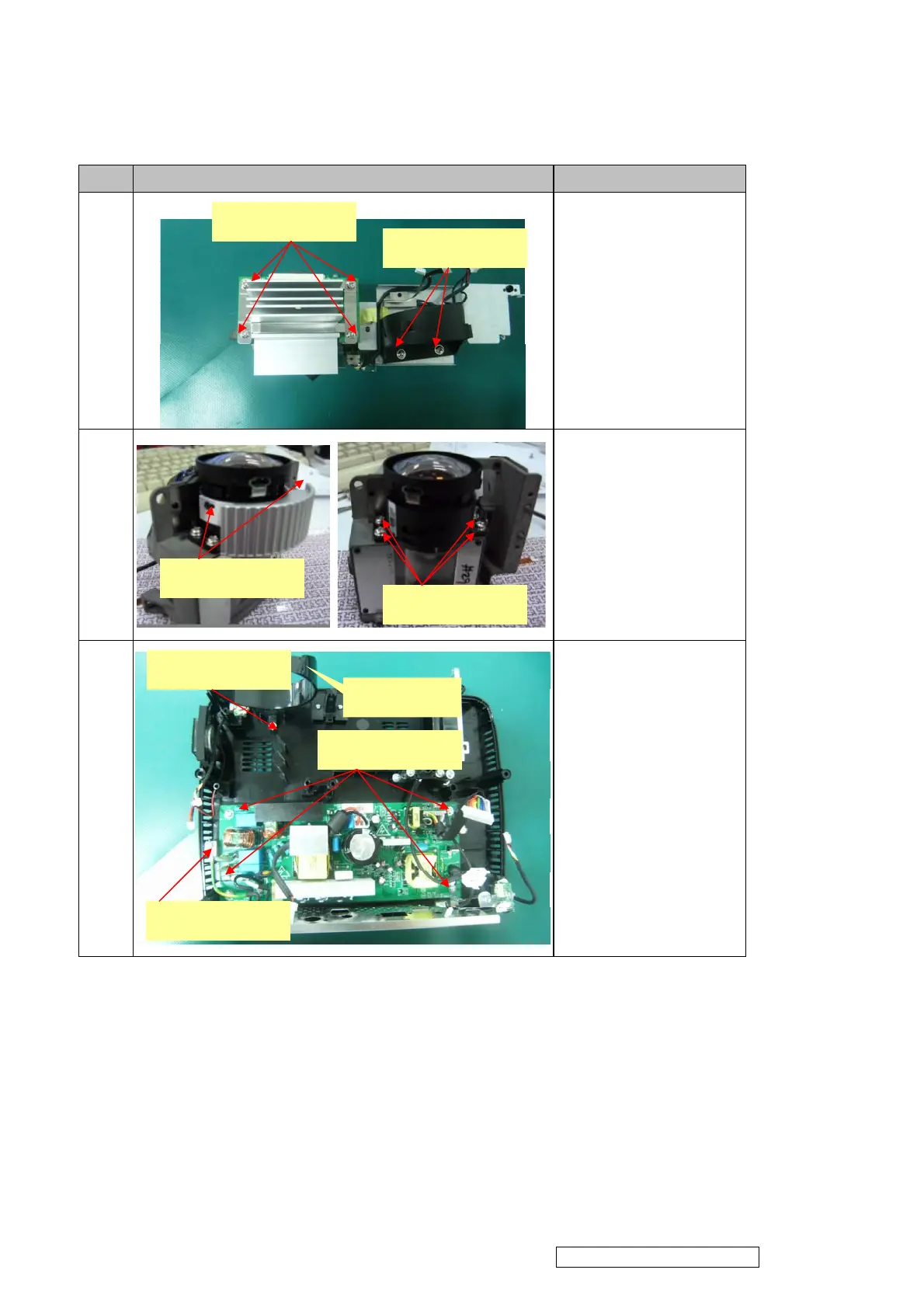

Step Figure Description
15
1. Loosen the two screws
on the OE Fan.
2. Remove the Fan.
3. Loosen the four screws
on DMD Board.
4. Remove the heat sink
and DMD Board.
16
1. Loosen the two screws
on the Zoom Ring.
2. Remove the Zoom Ring.
3. Loosen the four screws
on the Lens.
4. Remove the Lens
carefully.
17
1. Loosen the one screw and
remove the Lens Housing.
2. Loosen the screws on the
Power Board and then
remove the Power module
from Bottom Cover.
J1635-3660-00*2
J1635-3660-00*4
J1635-3620-0A*1
J1635-3620-0A*4
Lens Housing
J1635-D420-0A*1
J1635-D559-00*2
J1635-B730-0A*4
ViewSonicCorporation Confidential - Do Not Copy PJD5112
23

ViewSonic PJD5112 Specifications

General

Projection distance	1.2 - 10 m
Projection technology	DLP
Contrast ratio (typical)	2000:1
Projector native resolution	SVGA (800x600)
Aspect ratio	4:3, 16:9
RS-232 ports	1
Dimensions (WxDxH)	280 x 218 x 114 mm
Power requirements	90~240VAC
Lamp power	180 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	5000 h
Focus	Manual
RMS rated power	2 W
Headphone outputs	2
Serial interface type	RS-232
Noise level	30 dB
Power consumption (standby)	1 W
Power consumption (typical)	235 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Product type	Standard throw projector
Market positioning	Presentation

Weight and Dimensions

Weight	2600 g
