ViewSonic PJD6531w User Manual

3.4 Disassembly Lamp Module
As the projector operates over time, the brightness of the projector lamp gradually decreases
and the lamp becomes more susceptible to breakage. We recommend replacing the lamp if a
warning message is displayed. Do not attempt to replace the lamp yourself. Contact the
qualified service personnel for replacement.

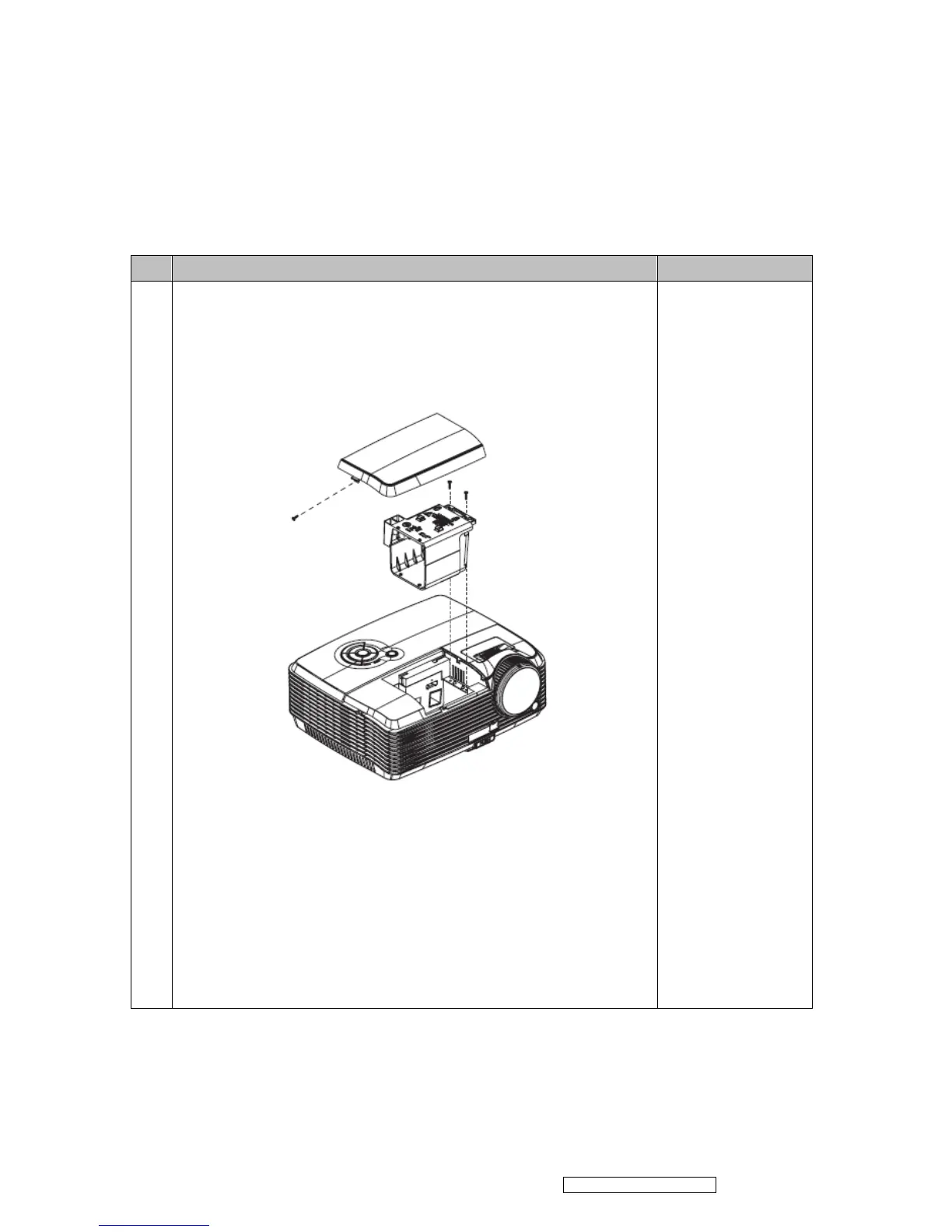

Step Figure Description
1
Note: Turn on the projector. If the lamp does not turn on after
the warm-up period, please reinstall the lamp.
1. Turn off the projector.
2. If the projector is
installed in a ceiling
mount, remove it.
3. Unplug the power
cord
.
4. Loosen the screw in
the side of the lamp
cover and remove the
cover.
5. Remove the screws
from the lamp
module, raise the
handle, and lift out the
module.
6. Insert the new lamp
module into the
projector and tighten
the screws.
7. Replace the lamp
cover and tighten the
screw.
8. Turn on the projector.
If the lamp does not
turn on after the
warm-up period, try
reinstalling the lamp.
9. Reset the lamp hour.
Refer to the “Setting”
menu.
Confidential - Do Not Copy
ViewSonic Corporation
PJD6531w
27

ViewSonic PJD6531w Specifications

General

Native aspect ratio	16:10
Projection distance	1.2 - 10 m
Vertical scan range	50 - 120 Hz
Horizontal scan range	31 - 80 kHz
Projection technology	DLP
Supported aspect ratios	4:3, 16:10
Contrast ratio (typical)	2000:1
Screen size compatibility	27 - 300 \
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	± 40 °
Focus	Manual
Throw ratio	1.5 - 1.8:1
Focal length range	- mm
Lamp power	230 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	6000 h
Full HD	No
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
RMS rated power	10 W
Number of built-in speakers	2
Serial interface type	RS-232
USB 2.0 ports quantity	0
S-Video inputs quantity	1
VGA (D-Sub) ports quantity	3
Cables included	VGA
HDCP	-
Noise level	34 dB
Certification	CB, WEEE, UL/cUL, FCC-B, ICES-003, IRAM, NOM, PSB, C-tick, EK, CE, TUV/GS, GOST-R, Hygienic, SASO UKrSEPRO, CCC
Noise level (economic mode)	29 dB
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1 W
Power consumption (typical)	305 W
Operating temperature (T-T)	0 - 40 °C
Product color	Black
Market positioning	Presentation
Sustainability certificates	RoHS

Weight and Dimensions

Depth	114 mm
Width	280 mm
Height	218 mm
Weight	1850 g
Package depth	305 mm
Package width	345 mm
Package height	220 mm
Package weight	4500 g
