ViewSonic PJD6531w - Ballast and Power Board Connectors

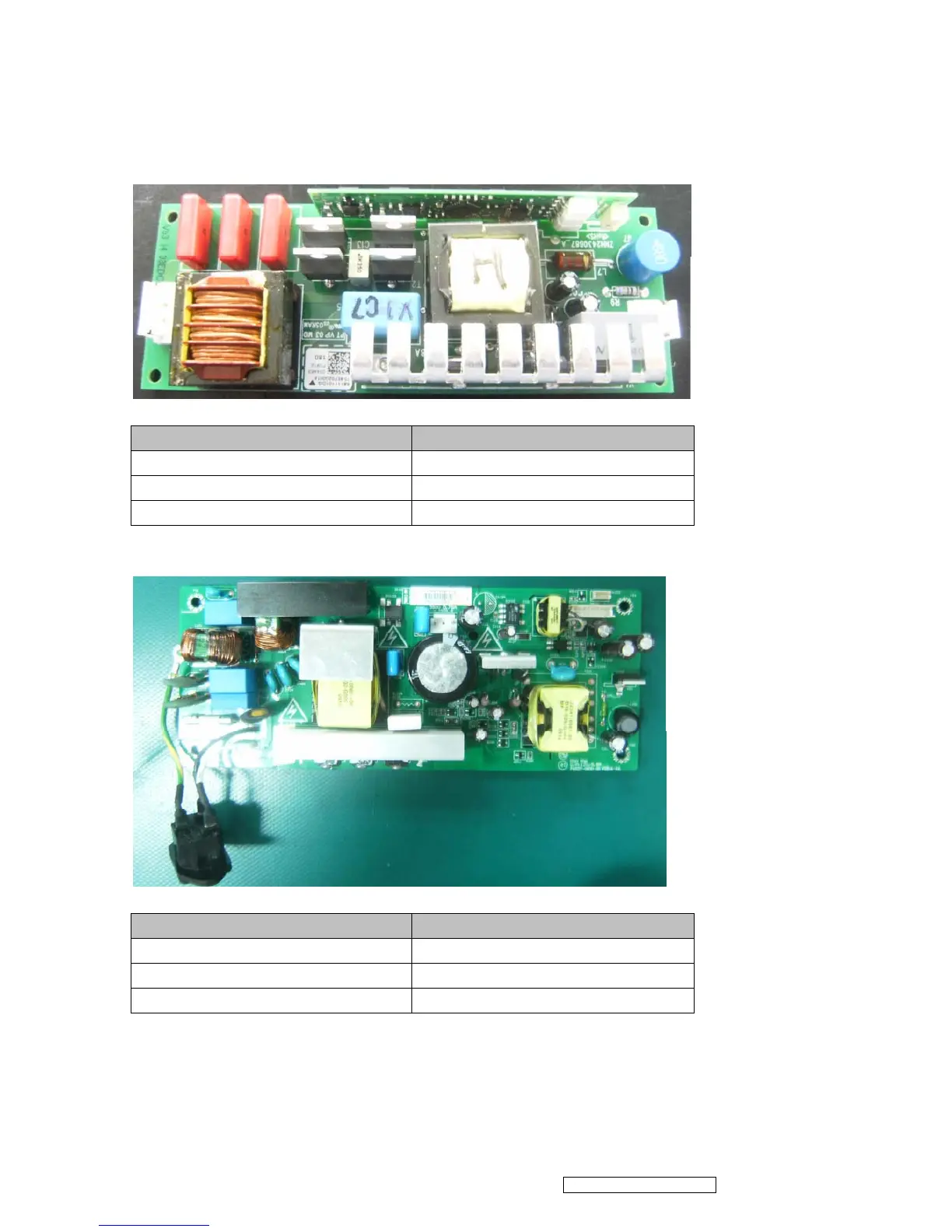

5.3 Ballast Board
Connector Description
No 1 Lamp power supply
No 2 Ignite signal connected to Main board
No 3 High Voltage Power supply
5.4 Power Board
Connector Description
No 1 380V output for Ballast
No 2 12V output for RS232 Board
No 3 12V/5V output for Main Board
No1
No2
No3
No1
No2
No3
