ViewSonic PJD6531w User Manual

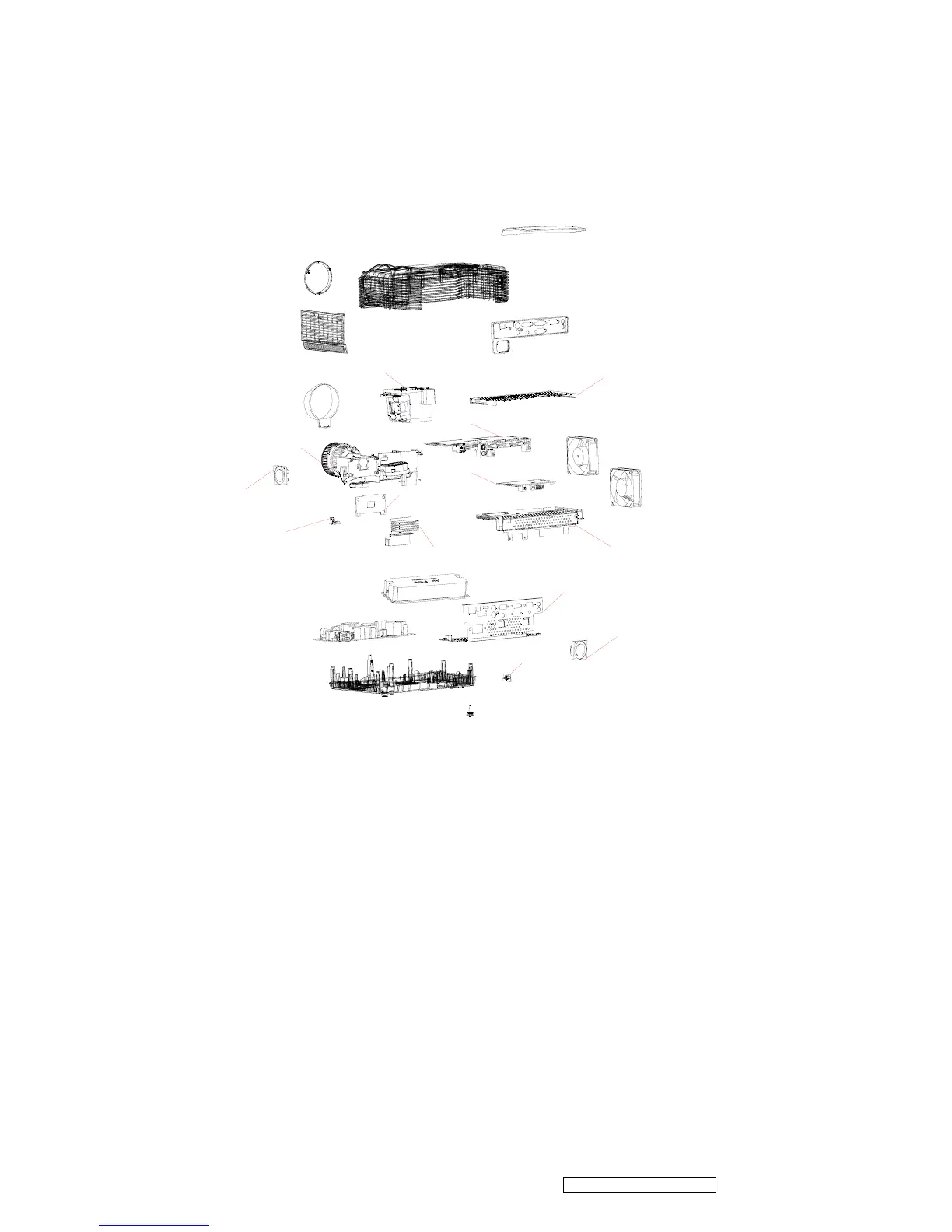

6.1 Mechanical Drawing
17.FAN2
18.FAN 1
19.Power Board
14. Ballast
12.Front IR
15.Front Speaker
metal sheet of Ballast
heat sink of DMD Board
8.Optical Engine
7.Lamp module
6.Lens Housing
metal sheet of main board
3. IO Cover
5.Filter Cover
1.Top Cover
13.Back IR
20.Bottom Cover
21.Rear Foot
metal sheet of IO Port
16.Back Speaker
9.Main Board
10.RS232 Board
11.DMD Board
2.Lens Cover
4.Lamp Cover
Confidential - Do Not Copy
ViewSonic Corporation
PJD6531w
46

ViewSonic PJD6531w Specifications

General

Native aspect ratio	16:10
Projection distance	1.2 - 10 m
Vertical scan range	50 - 120 Hz
Horizontal scan range	31 - 80 kHz
Projection technology	DLP
Supported aspect ratios	4:3, 16:10
Contrast ratio (typical)	2000:1
Screen size compatibility	27 - 300 \
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	± 40 °
Focus	Manual
Throw ratio	1.5 - 1.8:1
Focal length range	- mm
Lamp power	230 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	6000 h
Full HD	No
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
RMS rated power	10 W
Number of built-in speakers	2
Serial interface type	RS-232
USB 2.0 ports quantity	0
S-Video inputs quantity	1
VGA (D-Sub) ports quantity	3
Cables included	VGA
HDCP	-
Noise level	34 dB
Certification	CB, WEEE, UL/cUL, FCC-B, ICES-003, IRAM, NOM, PSB, C-tick, EK, CE, TUV/GS, GOST-R, Hygienic, SASO UKrSEPRO, CCC
Noise level (economic mode)	29 dB
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1 W
Power consumption (typical)	305 W
Operating temperature (T-T)	0 - 40 °C
Product color	Black
Market positioning	Presentation
Sustainability certificates	RoHS

Weight and Dimensions

Depth	114 mm
Width	280 mm
Height	218 mm
Weight	1850 g
Package depth	305 mm
Package width	345 mm
Package height	220 mm
Package weight	4500 g
