VSD242 Smart Display Features
32 32

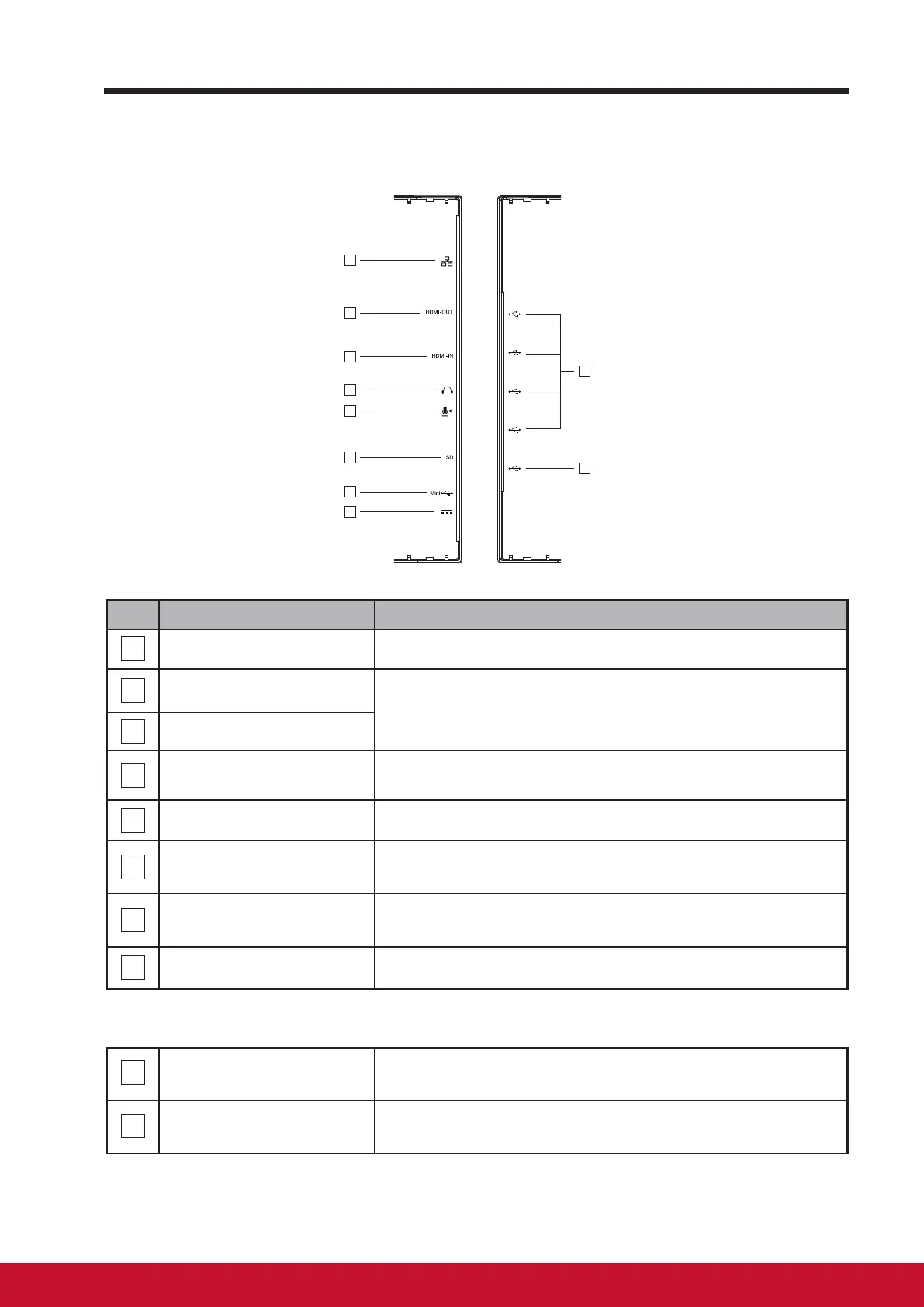

Back View
LEFT SIDE RIGHT SIDE
1
1
2
2
3
4
5
6
7
8
LEFT SIDE
No. Components Descriptions
1
RJ45 Connector Connect to a RJ45 cable for network connection.
2
HDMI OUT
Connect to digital high quality device for video and
audio congurations (e.g. PC Monitor, BD Player
OHP )
3
HDMI IN
4
Headset Jack Connect to earphone or headset.
5
Microphone IN Plug a compatible microphone into the device.
6
SD Card Slot
Input SD card to extend storage capacity.
(Up to 32 GB)
7
Mini USB Port (OTG)
Connect to windows computer for data transferring.
(Need MTP driver)
8
DC in Port Connect to power adaptor.
RIGHT SIDE
1
USB type-A x4 (2.0)
Used for keyboard, mouse, ash
disk (supports
FAT32 format only) or printer connections.
2
USB type-B
External display mode for USB upstream Webcam
and Touch-screen control functionality.
