Service Diagnostics and Procedures

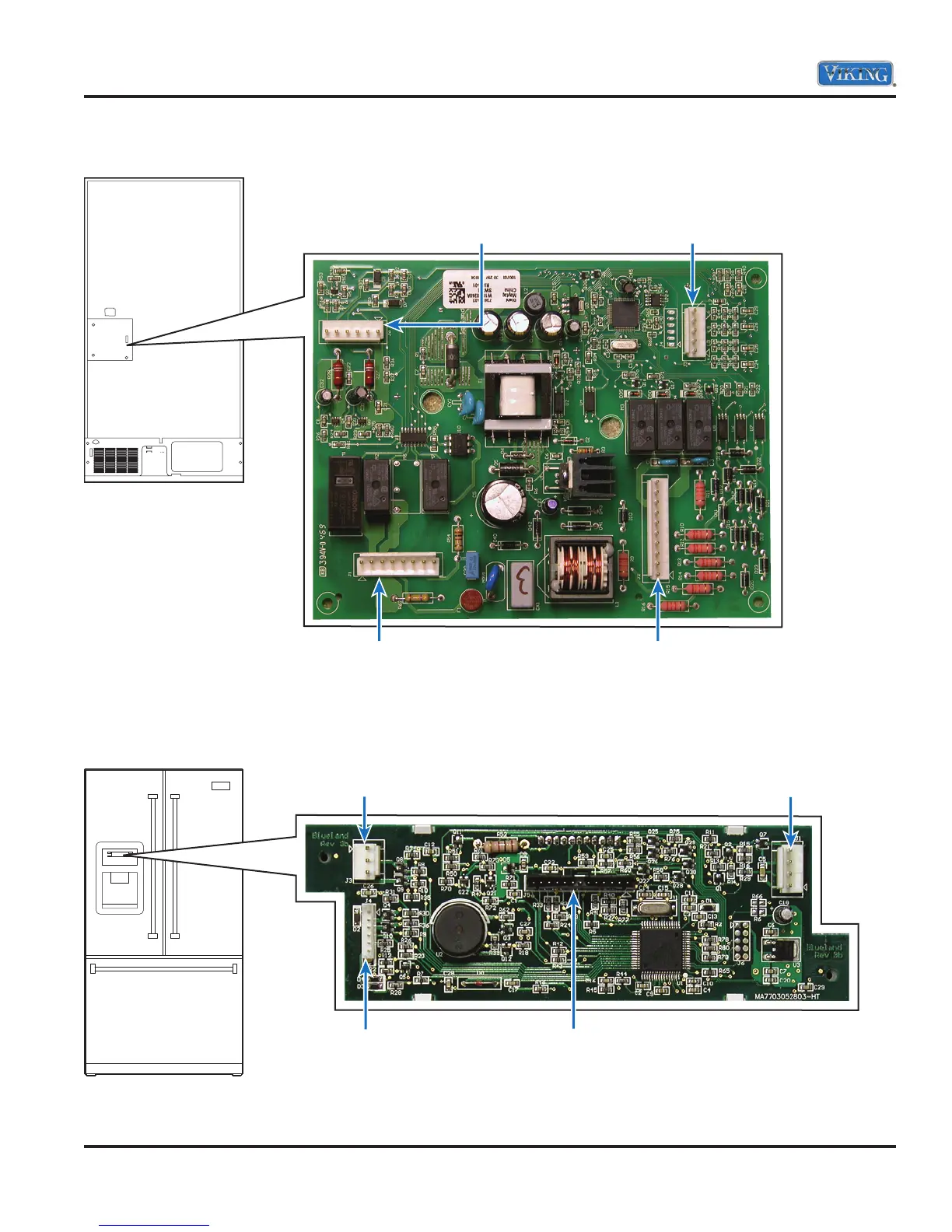

Parts Location–Main Control Board and Dispenser Board
(J3)
Connector
(J6)
Connector
(J2)
Connector
(J1)
Connector
(J1)
Connector
12 volts/GND
power out to components
and Main Control
(J3)
Connector
12-volt power to
dispenser mullion heaters
(J5)
User Interface Connector
(J4)
Connector
12 volt power
to dispenser components
