Main Control Board

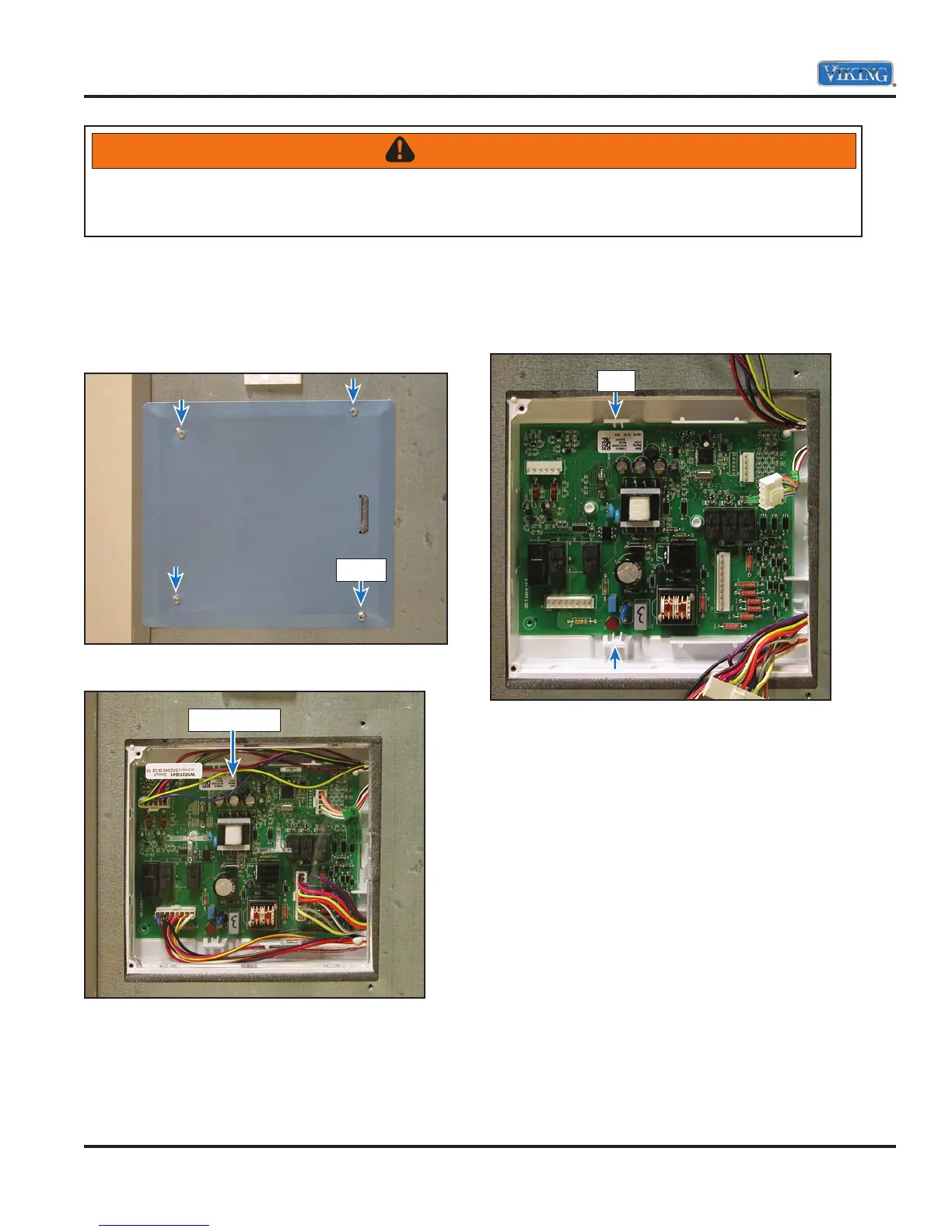

To access main control board:
1. Remove securing screws and outer control
board cover.
2. Lift off the clear control board cover.
3. Disconnect wiring. Press tabs to release main
control board.
4. Repair or replace main control board.
5. Reverse procedure to reinstall.
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power to unit using power
switch before servicing. Wires removed during disassembly must be replaced on proper terminals to insure
correct earth ground and polarization. After servicing, reconnect power using power switch.
Service Diagnostics and Procedures–Disassembly
Screw
Clear Cover
Tabs
