© 2010 Viking Preferred Service
67

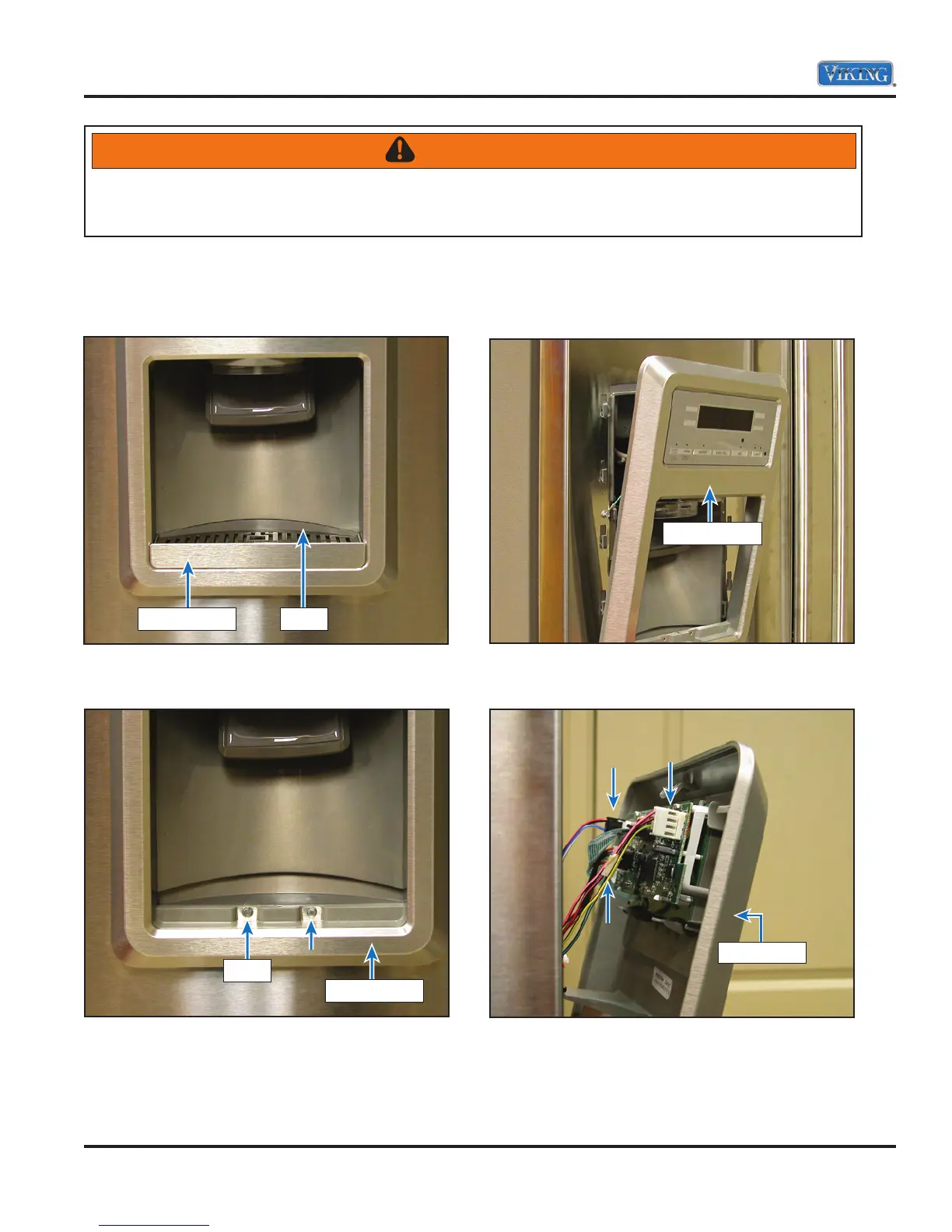

Dispenser and User Interface
1. Remove lower cover and grille.
2. Remove screws securing eschutcheon.
3. Lift up and slide eschutcheon out.
4. Disconnect wiring from dispenser board.
\
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power to unit using power
switch before servicing. Wires removed during disassembly must be replaced on proper terminals to insure
correct earth ground and polarization. After servicing, reconnect power using power switch.
Service Diagnostics and Procedures–Disassembly
Lower Cover Grille
Screw
Eschutcheon
Eschutcheon
Eschutcheon
To Next Page
